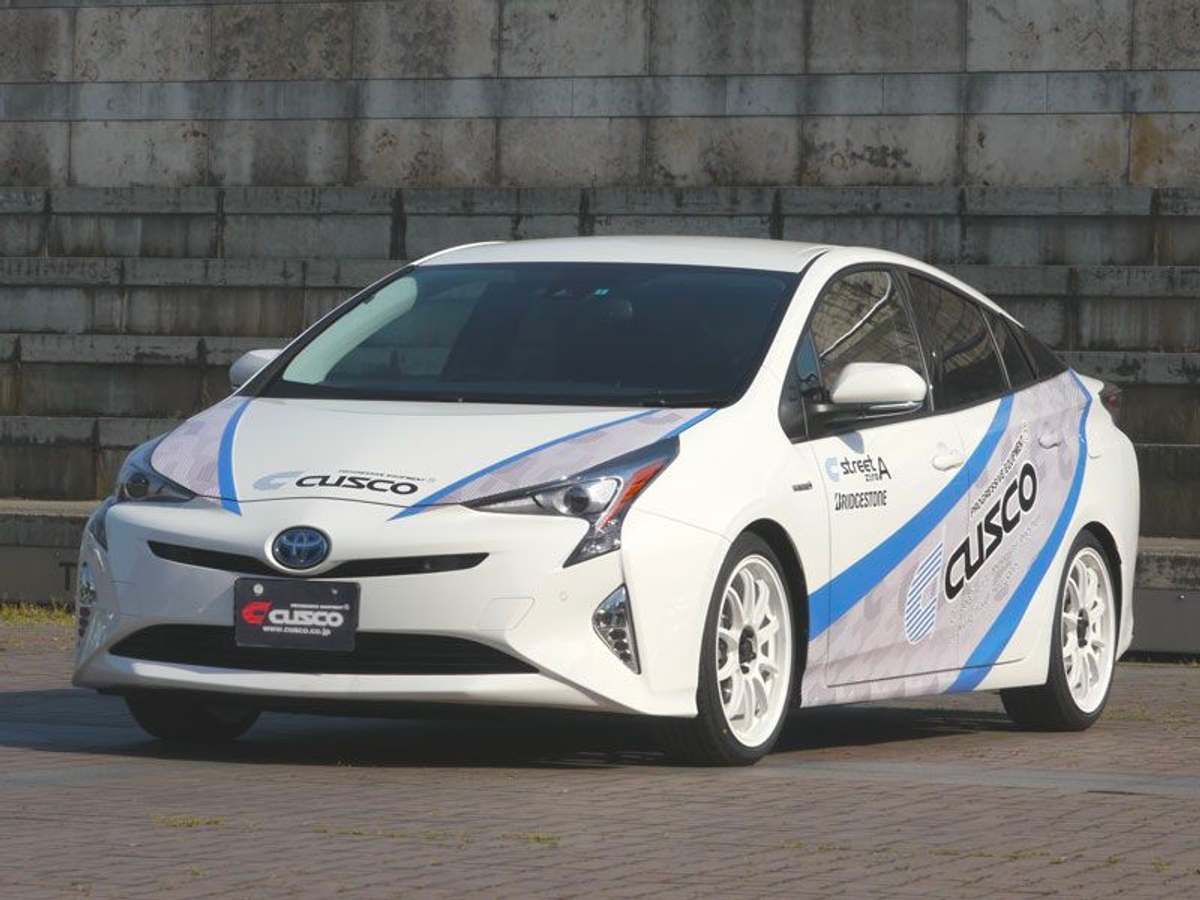

Products List for 2016+ Toyota Prius (XW50 - 4th Gen)

About 20 years have passed since the announcement of the prototype in 1995 for the Toyota Prius, which was born as the world's first mass-produced hybrid vehicle. The 4th generation XV50 series has evolved further, realizing driving and stability like a sports car. The high drivability that makes you forget the peculiarity of a hybrid car is a high-performance car that has been highly tuned.

Designed and developed from countless circuit testing, CUSCO high performance products are all proudly MADE IN JAPAN since 1977. Inspiration from track use, and daily use in mind, our engineers crafted the best for all demand.

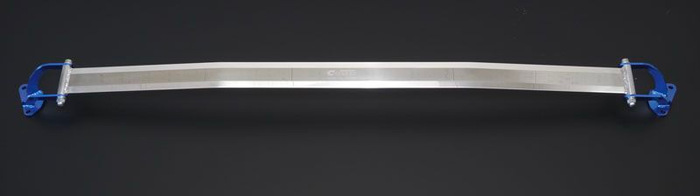

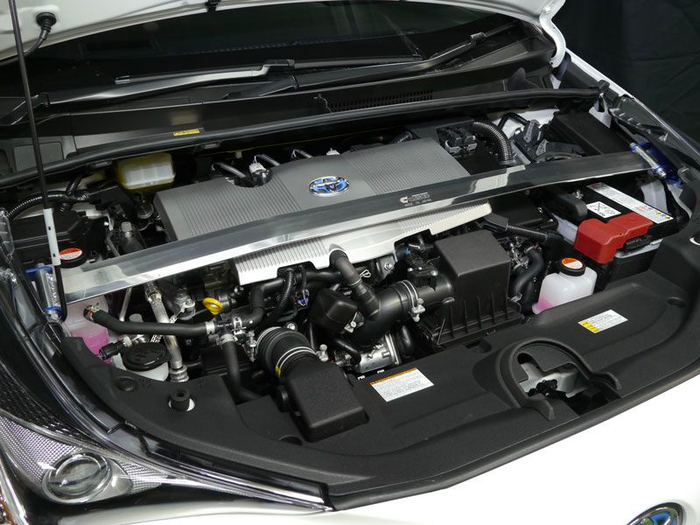

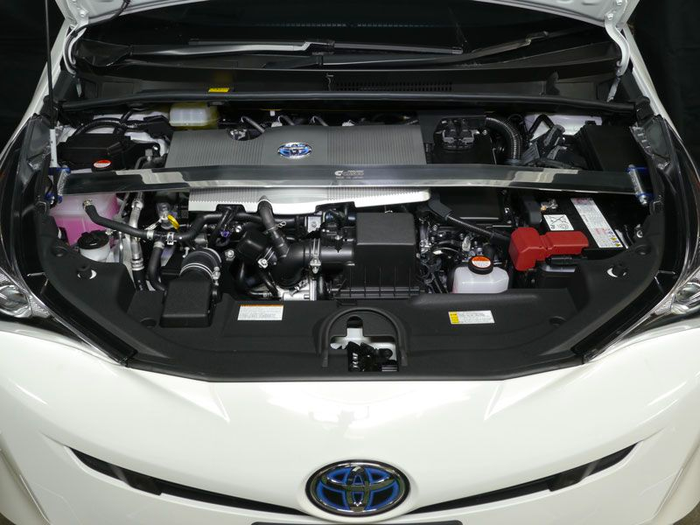

[Front Strut Tower/Body Brace - Type-OS (Type-III Flat Bar Shape]

CUSCO STRUT TOWER Brace is designed exclusively for 2016+ Toyota Prius to increase chassis strength, eliminate body flex, vibrations for optimum handling. Beautifully crafted and anodized in CUSCO Blue for lighting up the engine bay. It uses existing mounting location for "bolt-on".

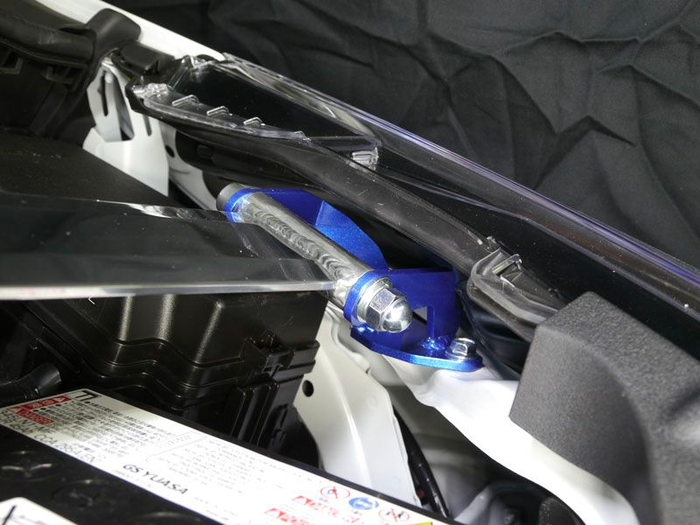

***Note: This part actually is installed on Body Frame, not Strut Tower area due to no space on that area.

*** This part can NOT be fit to '17+ 4th Gen Prius Prime (Plug-in Hybrid) & '17 Toyota C-HR models ***

Power Brace

CUSCO POWER BRACE is designed to increase chassis strength, eliminate body flex, vibrations in order to optimize the vehicle's handling. Beautifully crafted and anodized in CUSCO Blue for lighting up the engine bay. It uses existing mounting location for "bolt-on" and ensure enough ground clearance.

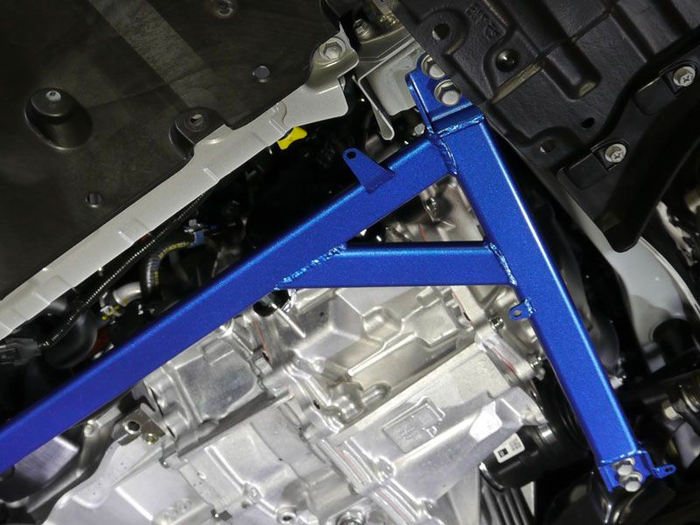

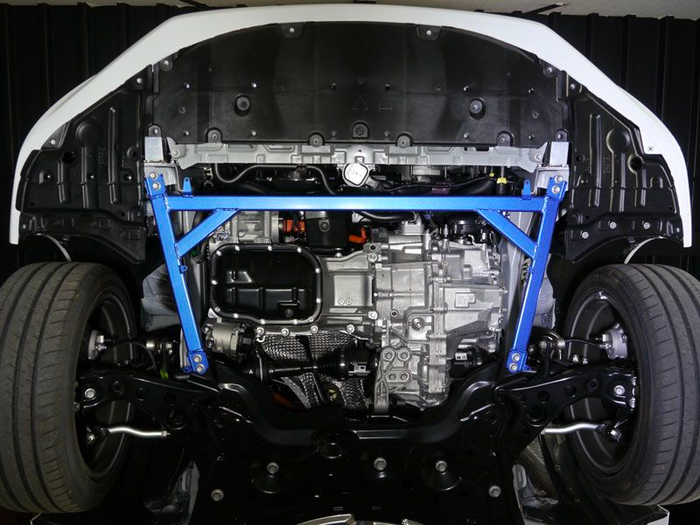

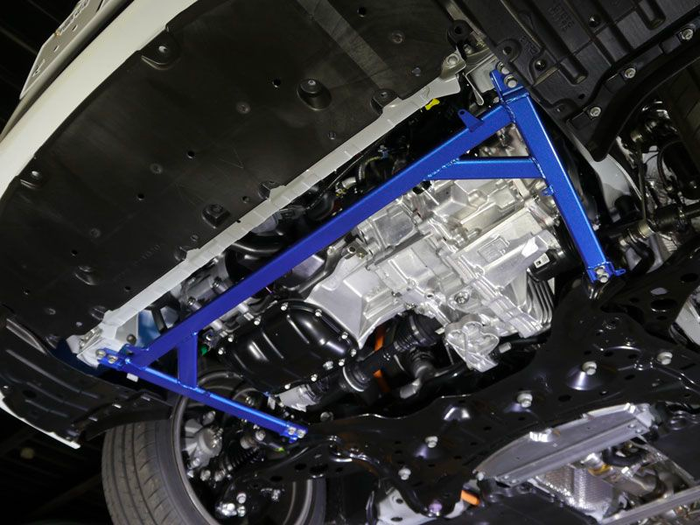

Power Brace - Under Chassis Braces Front

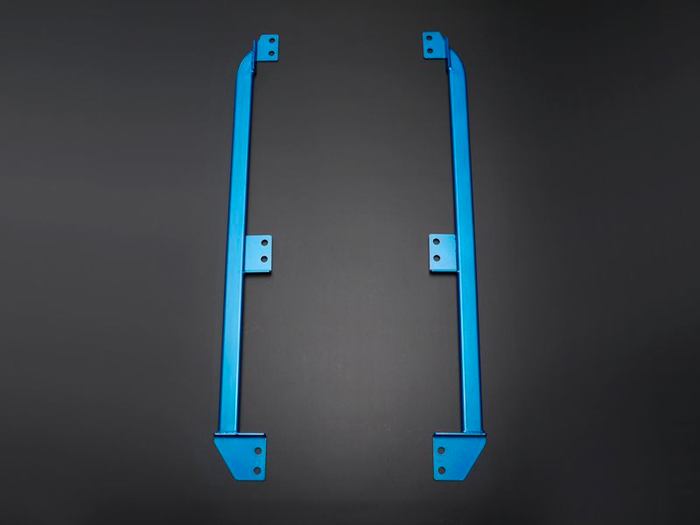

Power Brace - Under Chassis Braces Center

*** This part can be fit to '16+ All 4th Gen Prius, '17+ Toyota C-HR & '19+ Toyota Corolla Hatchback models ***

Power Brace - Under Chassis Braces Rear

Part Number: 1A1-492-R has been superseded/updated to 1A9-492-R.

*** This part can NOT be fit to '17+ C-HR model (use 1A7-492-R) ***

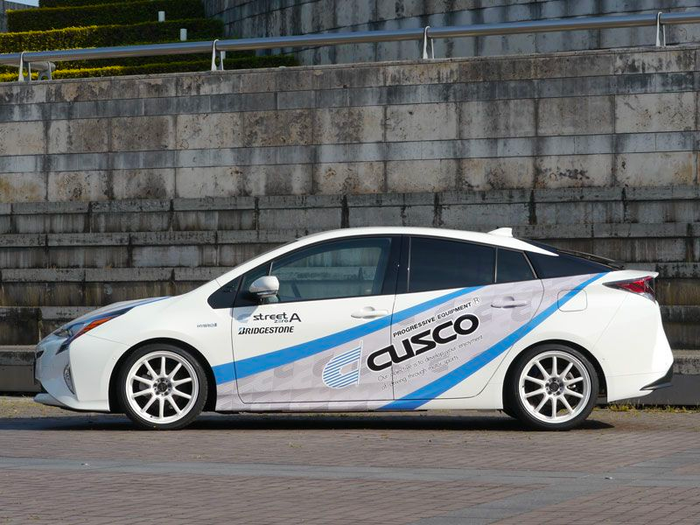

Coilover Kit

Street Zero

• Front: Fix Damper Rate - Street spec / Rear: 14-way Adjustable (Dial)
• Full threaded front shock cartridge for adjusting ride height. (Not Pre-load Ride Height type)

Spring Rate:

• Front 5kgf/mm (Optional 6kgf/mm spring is available on order)
• Rear 4.5kgf/mm

Default Low-Down Amount:

• Front -30mm (Adjustable Range -45mm to -5mm)
• Rear -30mm (Adjustable Range -40mm to -0mm)

Upper Mounts: Not included b/ Re-use Factory Upper Mounts

Overhaul: Not available - Replacement shock cartridges are available.

*** This part can be fit to '19+ Toyota Corolla Hatchback & '20+ Corolla Sedan models ***

Street Zero-A

• Front Shock Absorber: 40-way Adjustable Twin-Tube
• Rear Shock Absorber: 40-way Adjustable Twin-Tube
• Full threaded front shock cartridge for adjusting ride height. (Not Spring Pre-load Ride Height adjustable type)

Spring Rate:

• Front 5kgf/mm (Optional 6kgf/mm springs are available on order)
• Rear 4.5kgf/mm (FWD) / 4.8kgf/mm (AWD/Prime) (Exclusive Design - Optional Spring rate is not available)

Default Low-Down Amount:

• Front -30mm(FWD)/-35mm(AWD/Prime) (Adjustable Range -50mm to -5mm)
• Rear -30mm (Adjustable Range -40mm to 0mm)

Upper Mounts:

• Front: HD Rubber Bushing with Billet Aluminum Plate - Non-Camber Adjustable
• Rear: Steel Plate with HD Rubber

Overhaul: Available

Optional e-Con2 Electric Damper Controller is available. Sold separately.

*** This part can be fit to '19+ Toyota Corolla Hatchback & '20+ Corolla Sedan models ***

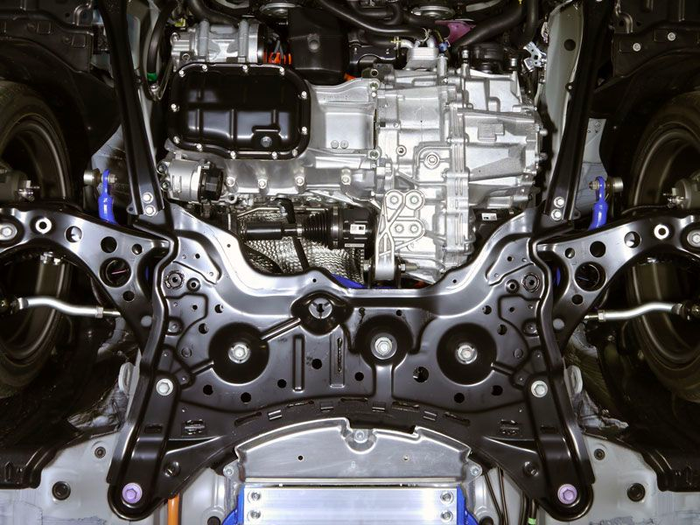

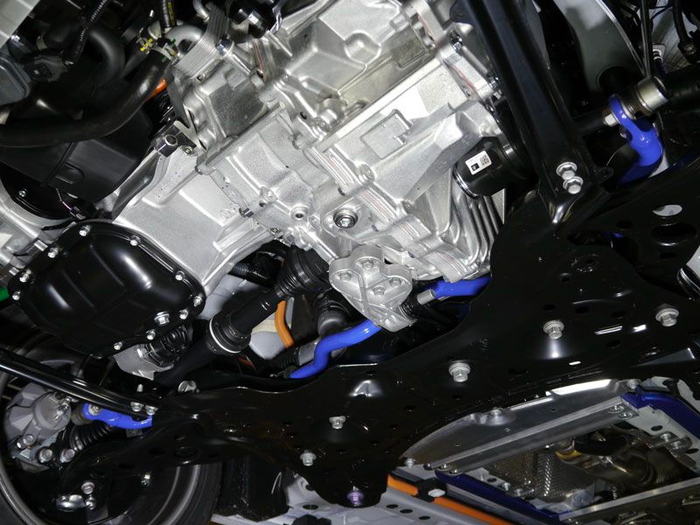

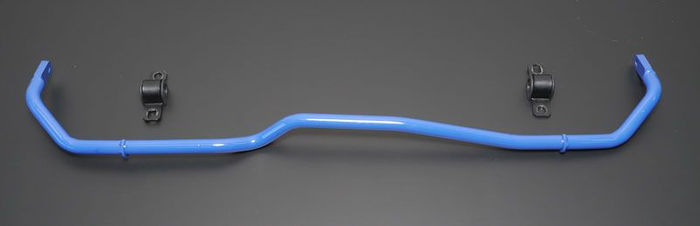

Sway Bars

• It helps to reduce the vehicle body roll during cornering.
• Additional benefits include stability at high-speed driving, install both front and rear for optimum performance.

Front

• Note : CUSCO OD=26mm solid. (+89%/FWD, +55%/AWD increase) Bushings and brackets are included.
• Installation Time: 2.5 hours (Require to drop front sub-frame off approx. 2 inches to install)

*** This part can be fit to '19+ Toyota Corolla Hatchback and '20+ Corolla Sedan models ***

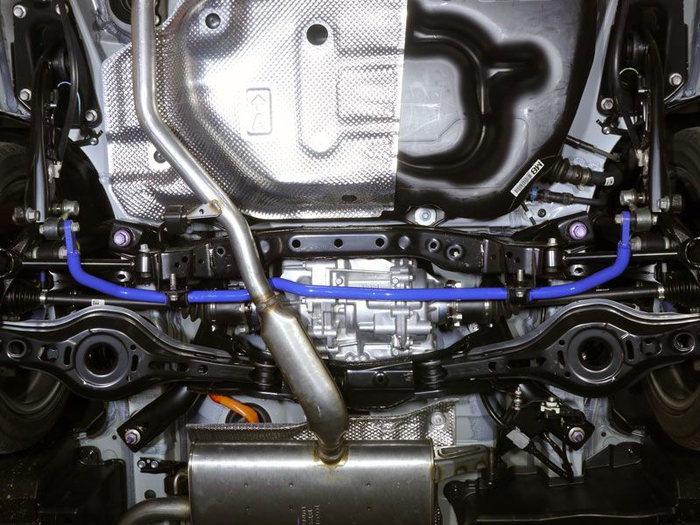

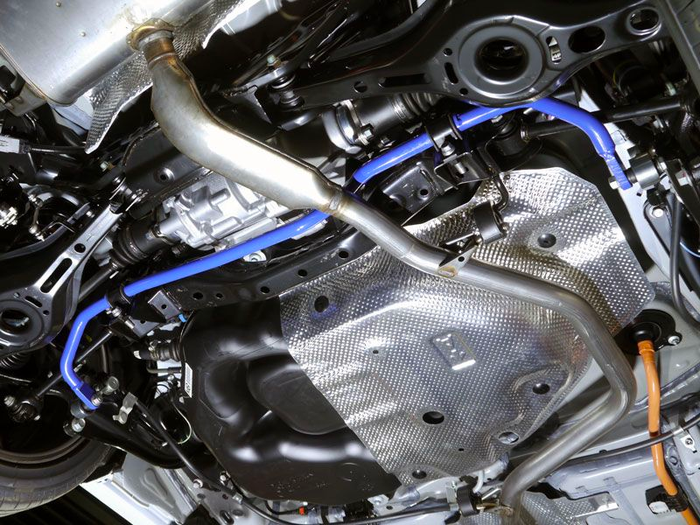

Rear

*** This part can be fit to '19+ Toyota Corolla Hatchback & '20+ Corolla Sedan models ***

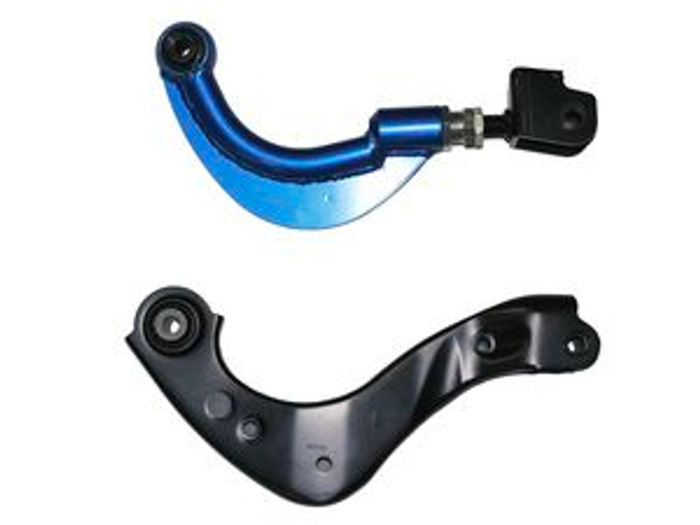

Rear "Camber Adjustable" Upper Arm Set

• It allows to set proper camber angle by having turnbuckle adjustment.
• Additional benefits includes stability at high speed driving, even tire wear, and optimum brake performance.

Rear

*** This part can be fit to '17+ Toyota C-HR models, '19+ RAV4, '19+ Corolla Hatchback & '20+ Corolla Sedan***

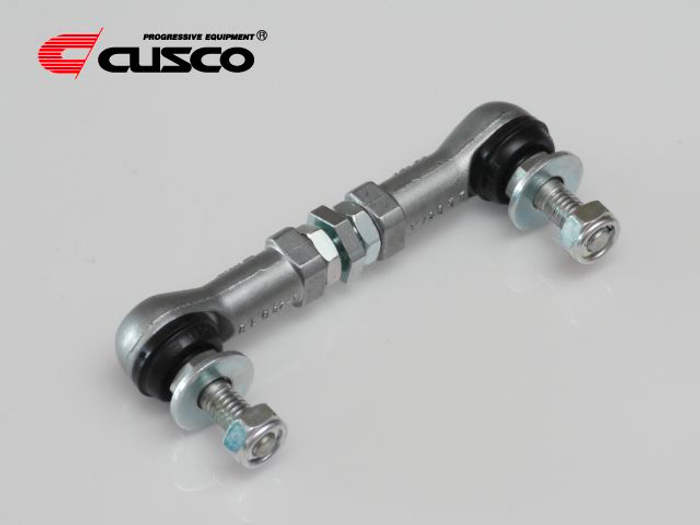

Auto-Levelizer Adjustment Rod

The modern automobiles of today are equipped with an automatic headlight leveler that adjusts to the vehicle's ride height in real time. However when the vehicle suspension is altered, (in most cases lowered) the headlights are pointed down towards the ground. This is due to the leveler sensor being stationed only in the rear of the car.

To resolve this issue, CUSCO has engineered the AUTO LEVELIZER to enable the re-setting of the correct headlight trajectory. In some cases, the ECU can be reset to readjust the headlights according to its vehicle height; however, there are parameter limitations for electronic sensors which will eventually require a mechanical approach to the solution.

***Check Head Light Beam Height after installation to meet OE requirements.
