CUSCO Products List for 2023+ Toyota 5th Gen Prius (MXWH60) - Updated in September 2023

Toyota / Lexus / Scion

[Models]

  • MXWH60 - 2.0L Hybrid (M20A-FXS), Front-Wheel Drive / CVT

Designed and developed from countless road testing, CUSCO high performance products are all proudly MADE IN JAPAN since 1977. Inspiration from off road demand and designed for everyday use, our engineers crafted and delivered the best of both.

[Coilover Kit - New Release in September 2023]

Street Zero-A Coilover Kit
Product Number
1A3 62N CN
MSRP
$1,700.00
JAN Code
4996338113337

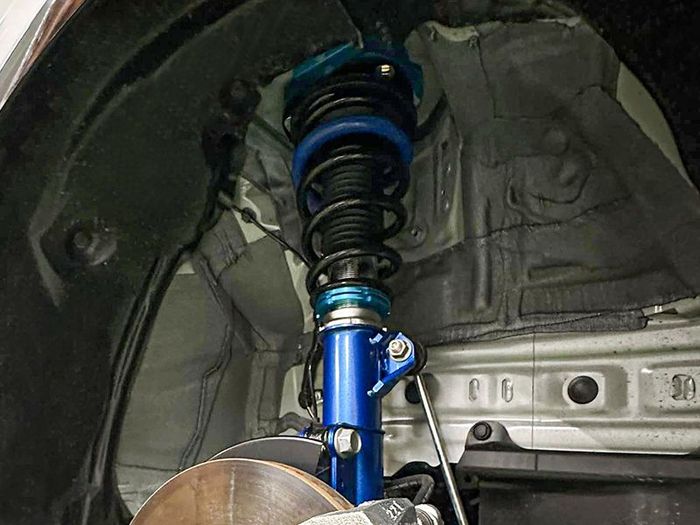

1A3-62N-CN Street Zero-A Front Image

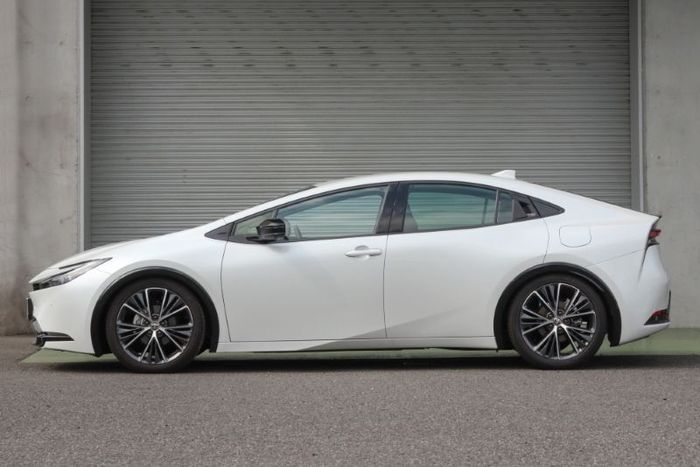

1A3-62N-CN - Lowered Image
  • Front / Rear: Twin-Tube 40-way Damper Adjustable
  • Front: Full threaded shock body for ride height adjustment.
  • Rear: Threaded Spring Perch for ride height adjustment
  • Default Spring Rate:
    • Front¬†5kgf/mm (Optional Spring Rate: N/A), Exclusive Design for Prius models
    • Rear 5kgf/mm (Optional Spring Rate: N/A), ID=65mm, L=250mm
  • Default Ride Height (compare to stock):
    • Front -40mm (Adjustable Range -45mm to 0mm)
    • Rear -35mm (Adjustable Range -50mm to -20mm)
  • Upper Mount:
    • Front: OE Style Rubber Upper Mount - Non-Camber Adjustable
    • Rear: Not included - Re-use OE Upper Mounts
  • Overhaul: Available
  • e-Con2 Remote Controller Compatibility: No

[Sway Bars]

  • It helps to reduce the vehicle body roll during cornering.
  • Additional benefits includes stability at high speed driving, install both front and rear for optimum performance.

[Front] - New Design for New 5th Gen Prius Model

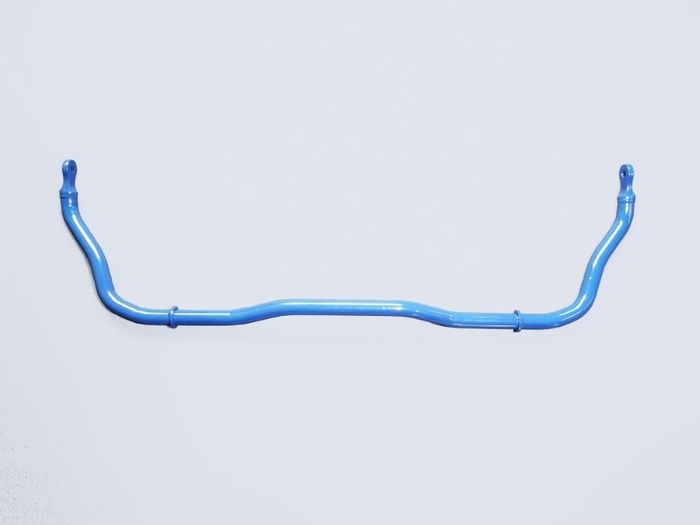

1A3-311-A26

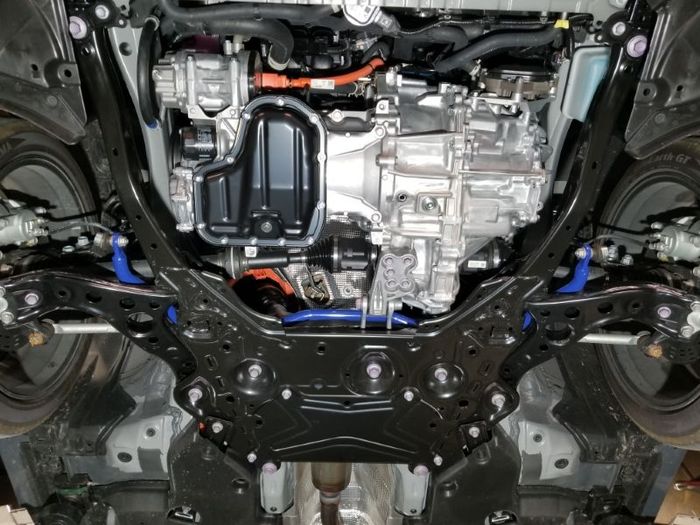

1A3-311-A26
Material : High Strength Steel
Product Number
1A3 311 A26
MSRP
$374.00
JAN Code
4996338062796

Note : CUSCO OD=26mm Solid Steel Bar (OE 25.4mm Hollow, +46% increase), Bushings are NOT included and re-use OE bushings & brackets to install.

- Installation Time: 2.5 hours

[Rear]

1A7-311-B26 - Rear Sway Bar Kit

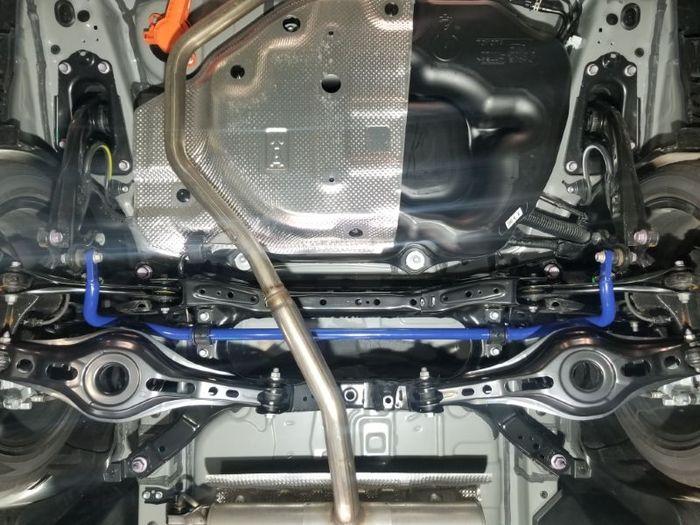

1A7-311-B26 - Installed
Rear Sway Bar Kit
Product Number
1A7 311 B26
MSRP
$374.00
JAN Code
4996338062376

Note : CUSCO OD=26mm Solid Steel Bar (OE 25.4mm Hollow, +42% increased) x2 Bushings & x2 Brackets are included.

- Installation Time: 1.0 hours

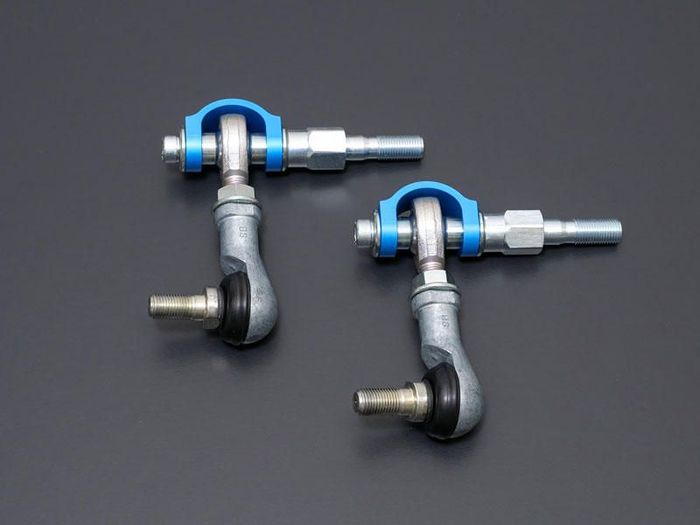

Rear Adjustable Sway Bar End-Link Set
Rear Adjustable Sway Bar End-Link Set
Product Number
1C7 317 A
MSRP
$250.00
JAN Code
4996338062680

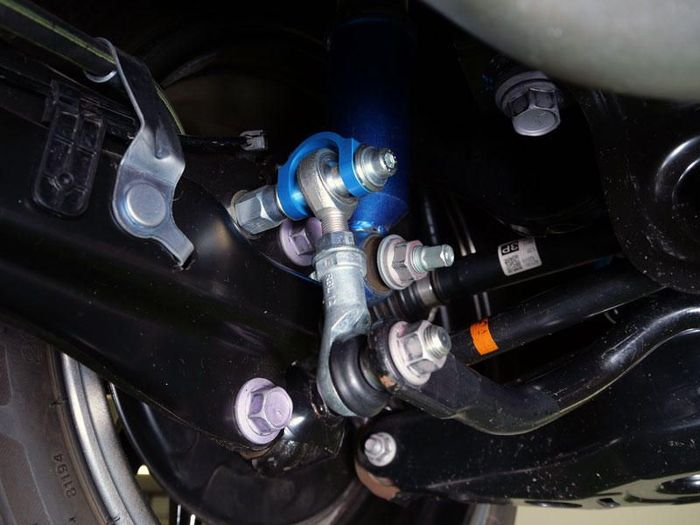

Rear Adjustable Sway Bar End-Link Set

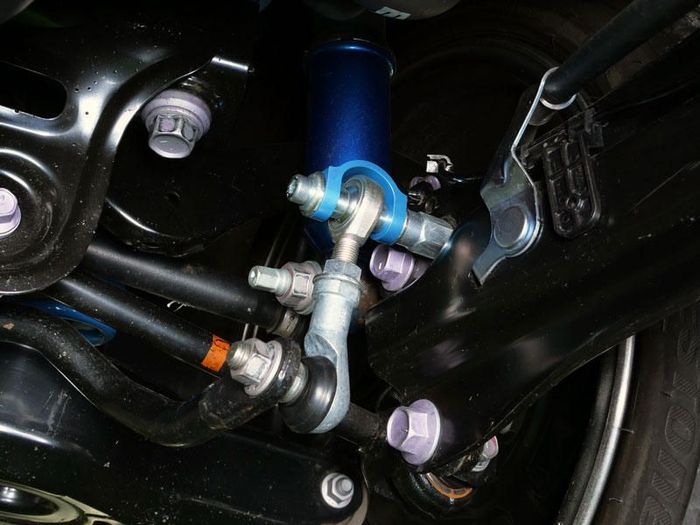

Rear Adjustable Sway Bar End-Link Set
  • Bolt-on / Direct OE Replacement Type
  • Ball Joint
  • Adjusting Range: 89 - 103 mm (OEM L=90mm)
  • Set of 2 pcs.

[Power Brace]

CUSCO POWER BRACE is designed to increase chassis strength, eliminate body flex, vibrations in order to optimize the vehicle's handling. Beautifully crafted and anodized in CUSCO Blue for all weather. It uses existing mounting location for "bolt-on" and ensure enough ground clearance.

- Front Cross Member Brace - 1A3 492 F (New Design for New 5th Gen Prius Model)

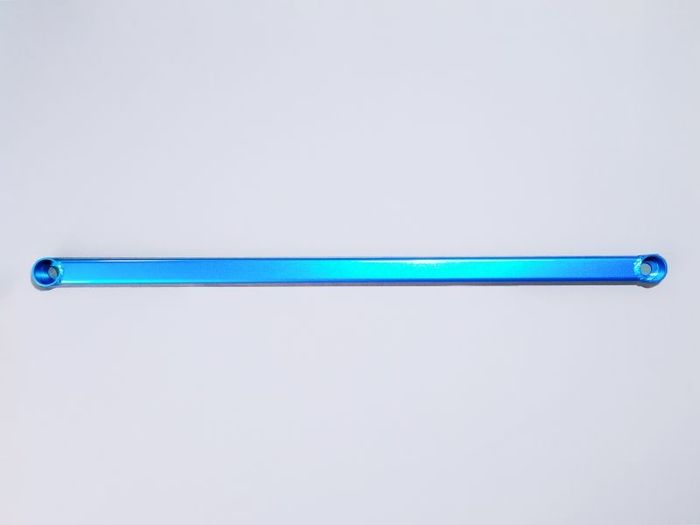

1A3-492-F

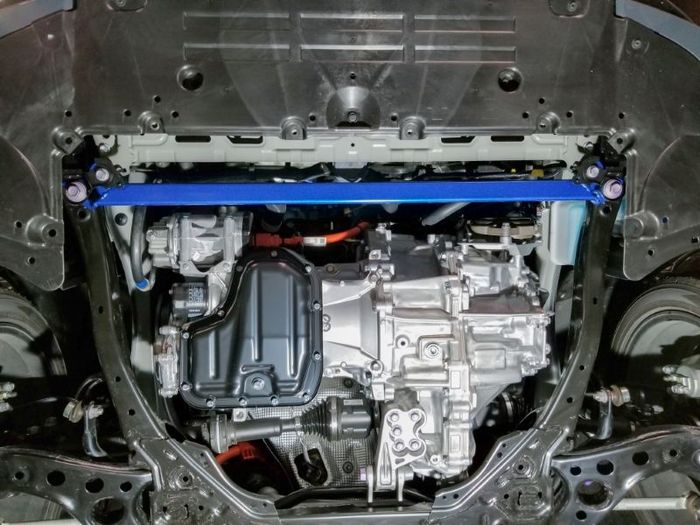

1A3-492-F - Installed
Material : High Strength Steel Bar (STKM) t=1.6mm
Product Number
1A3 492 F
MSRP
$174.00
JAN Code
4996338110503

- Installation Time: 1.0 hours

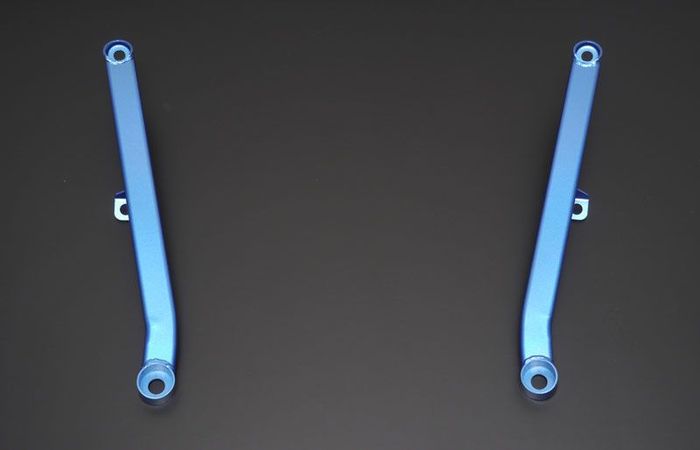

- Rear Brace (Front side) - 1A9 492 R

Rear Power Brace (Front Side)
Product Number
1A9 492 R
MSRP
$187.00
JAN Code
4996338110084
1A9-492-R
1A9-492-R - Installed

- Rear Brace (Rear side) - 1A3 492 RM (New Design for New 5th Gen Prius Model)

Rear Power Brace (Rear Side)
Product Number
1A3 492 RM
MSRP
$160.00
JAN Code
4996338110510
1A9-492-RM

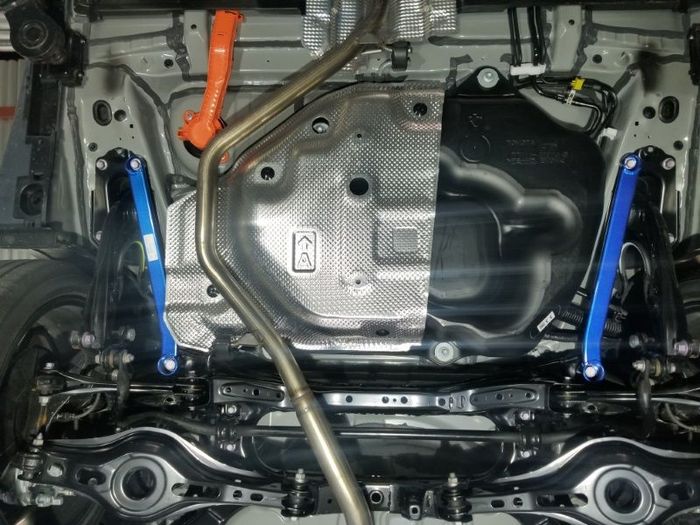

1A3-492-RM - Installed

[Door Stabilizer Set - New Release in July 2023]

CUSCO universal Door Stabilizer is designed to increase chassis rigidity by filling a door and body gap. By eliminating excess gap between a door and body, it improves steering response and chassis rigidity. For example, when changing a lane on a freeway.

Door Stabilizer Set
Product Number
00B 066 A
MSRP
$170.00
JAN Code
4996338117823

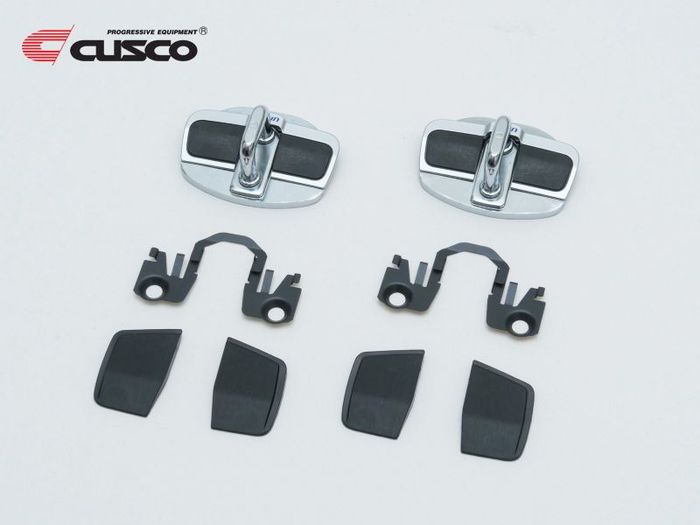

Door Stabilizer Set

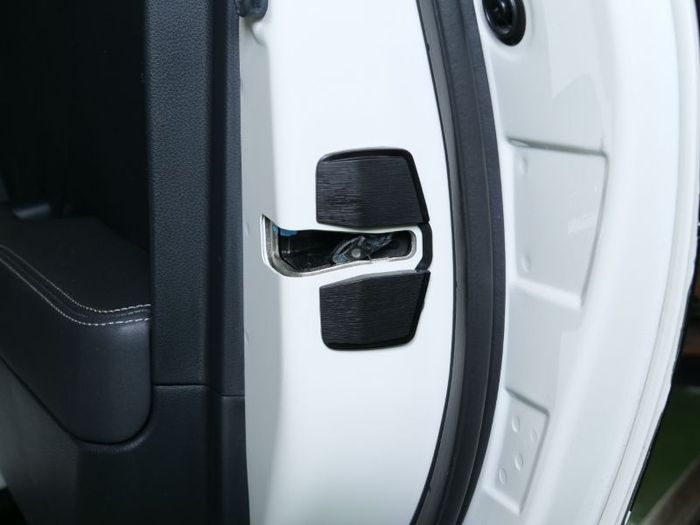

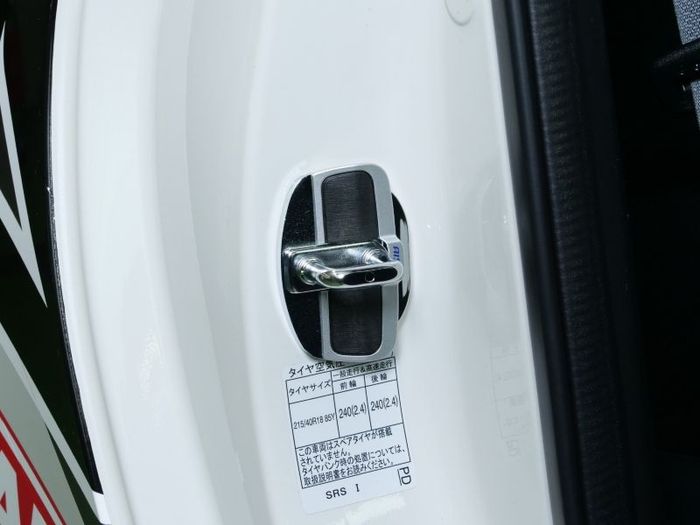

Installation - Body side
Installation - Door side

Price: US$170.00 per pair (Total of 2)

***Require to order x2 sets for all 4-Door Models (Front Doors & Rear Doors)

***Please click this link for more details.

[Interior/Exterior Accessory Parts]

Front Swivel Type Tow Hook
Product Number
1H1 017 R
MSRP
$131.00
JAN Code
4996338117854
Tow Hook
1H1-017-R - Installed
  • Bolt-on
  • Require to modify OE Tow Hook Cover
Rear Swivel Type Tow Hook
Product Number
1A7 017 F
MSRP
$131.00
JAN Code
4996338061973

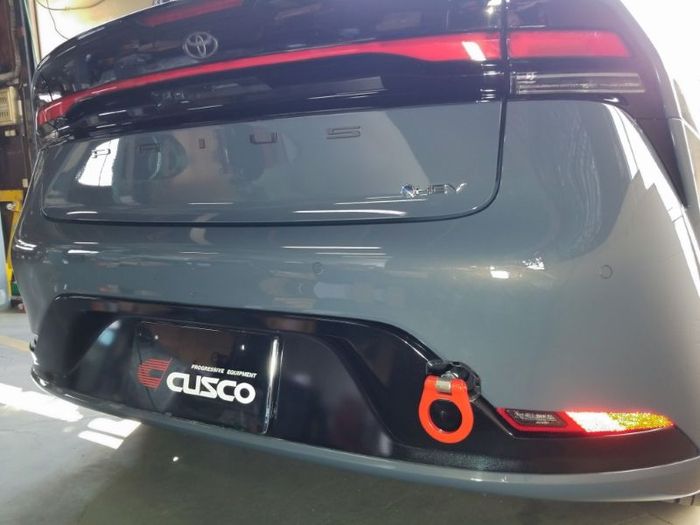

1A7-017-F - Installed
  • Bolt-on
  • Require to modify OE Tow Hook Cover
