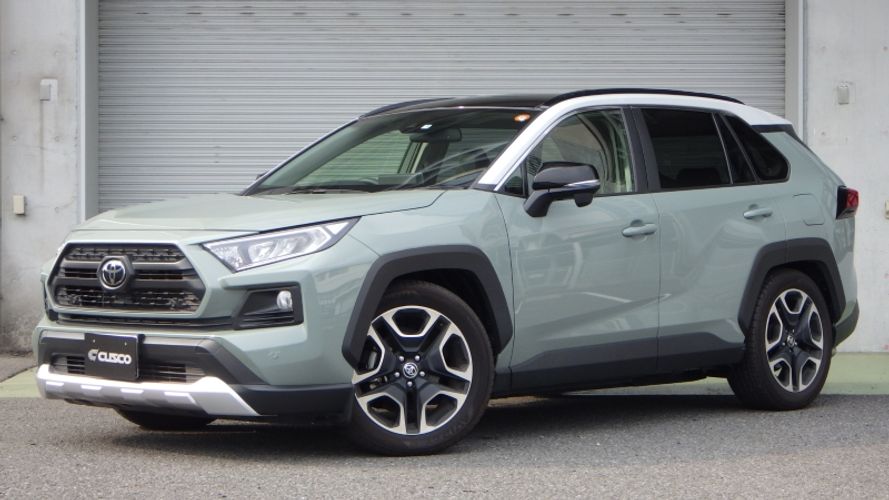

CUSCO Products List for 2019+ Toyota RAV4 (XA5) - Updated in July 2023

[Models]

• LE: 2.5L (4-Cyl.), Front-Wheel Drive - AXAA52
• LE Hybrid: 2.5L (4 Cyl.+Electronic, All-Wheel Drive - AXAH54
• XLE: 2.5L (4-Cyl.), Front-Wheel Drive - AXAA52

Designed and developed from countless road testing, CUSCO high performance products are all proudly MADE IN JAPAN since 1977. Inspiration from off road demand and designed for everyday use, our engineers crafted and delivered the best of both.

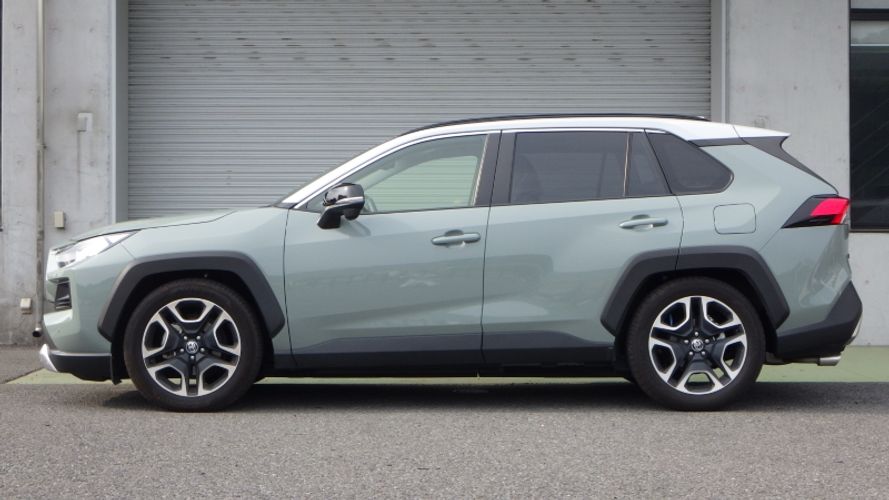

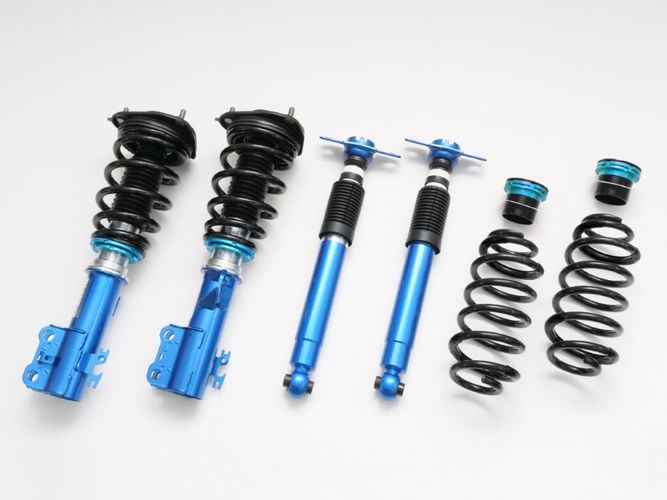

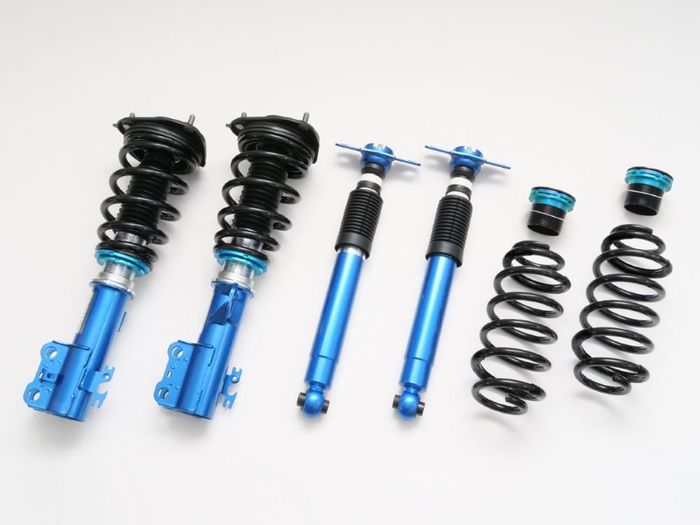

[Coilover Kit - New Release in July 2023]

Street Zero-A Coilover Kit

Product Number

1C4 62N CN

MSRP

$1,700.00

JAN Code

4996338113313

• Front / Rear: Twin-Tube 40-way Damper Adjustable
• Front: Full threaded shock body for ride height adjustment.
• Rear: Threaded Spring Perch for ride height adjustment
• Default Spring Rate:
  • Front 6kgf/mm (Optional 7kgf/mm per request), ID=65mm, L=250mm
  • Rear 7kgf/mm (Optional 8kgf/mm per request), ID=65mm, L=250mm
• Default Ride Height (compare to stock):
  • Front -40mm (Adjustable Range -55mm to 0mm)
  • Rear -50mm (Adjustable Range -60mm to -30mm)
• Upper Mount:
  • Front: OE Rubber Upper Mount - Non-Camber Adjustable
  • Rear: HD Rubber Upper Mount
• Overhaul: Available
• e-Con2 Remote Controller Compatibility: No

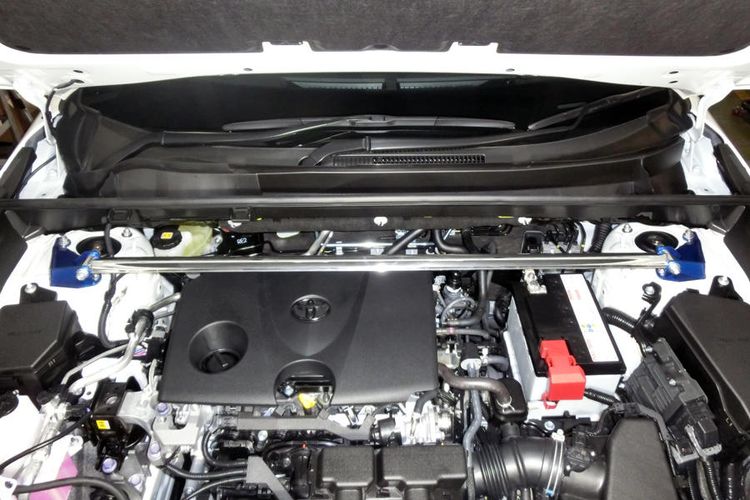

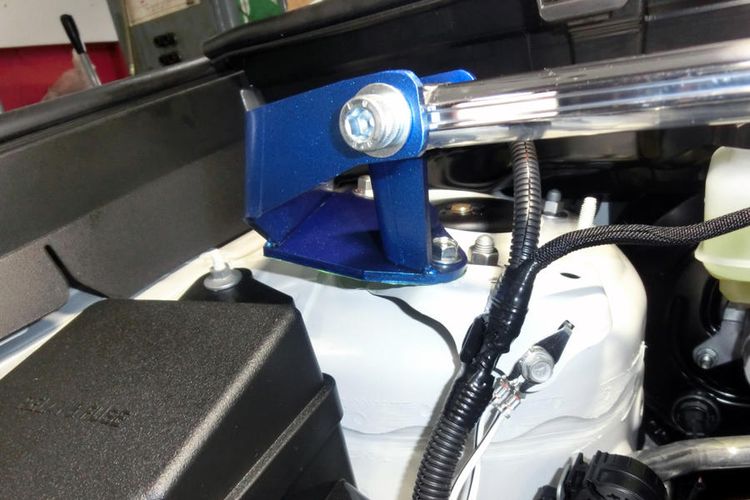

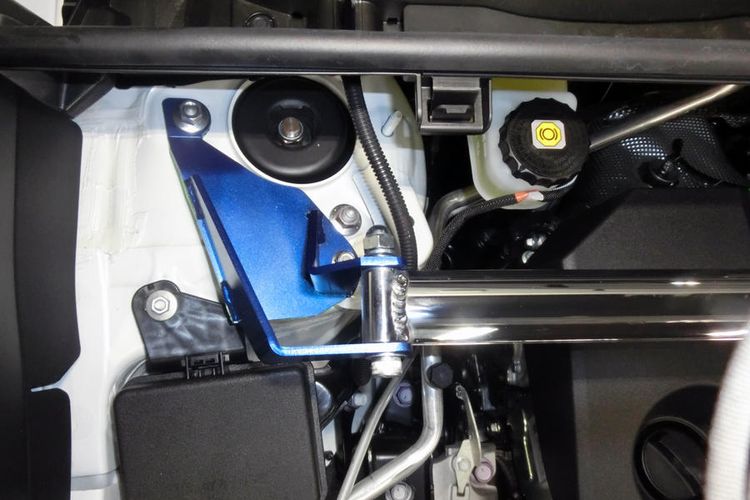

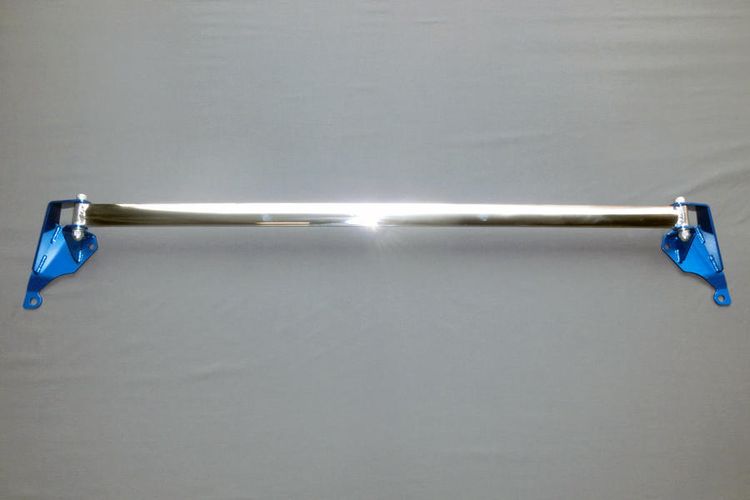

[Strut Tower Brace Front]

CUSCO STRUT TOWER Brace is designed exclusively for 2019+ Toyota Rav 4 to increase chassis strength, eliminate body flex, vibrations for optimum handling. Beautifully crafted and anodized in CUSCO Blue for lighting up the engine bay. It uses existing mounting location for "bolt-on".

Material : High Strength Steel Side Brackets + Light Weight Aluminum Oval Shape (Type-OS) Bar - Type I

Product Number

1C4 540 A

MSRP

$200.00

JAN Code

4996338039323

- Installation Time: 0.5 hours

[Power Brace]

CUSCO POWER BRACE is designed to increase chassis strength, eliminate body flex, vibrations in order to optimize the vehicle's handling. Beautifully crafted and anodized in CUSCO Blue for all weather. It uses existing mounting location for "bolt-on" and ensure enough ground clearance.

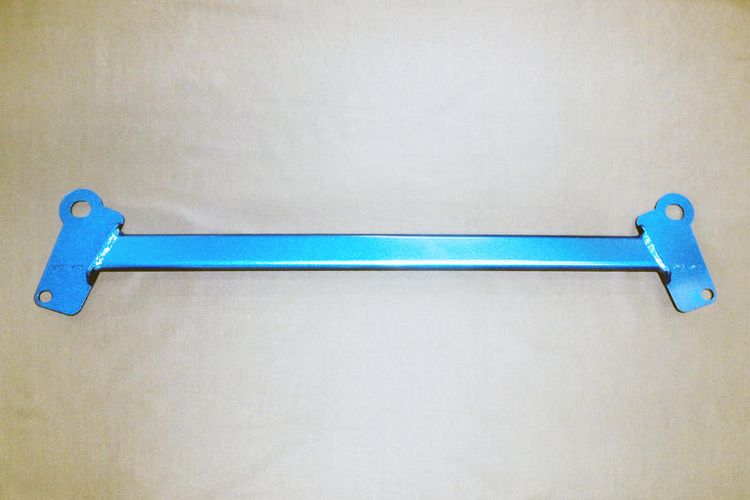

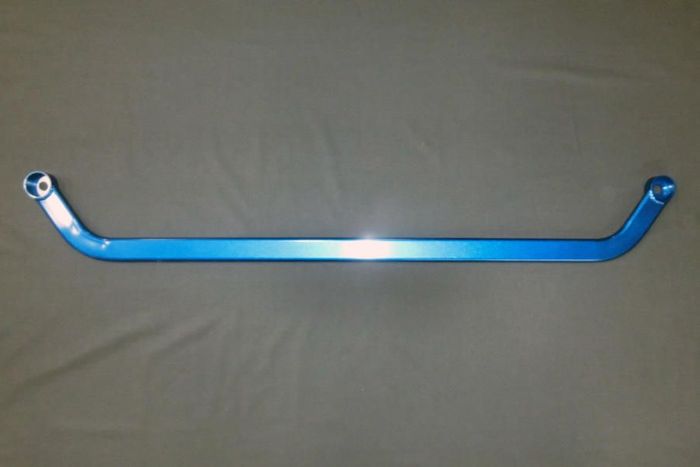

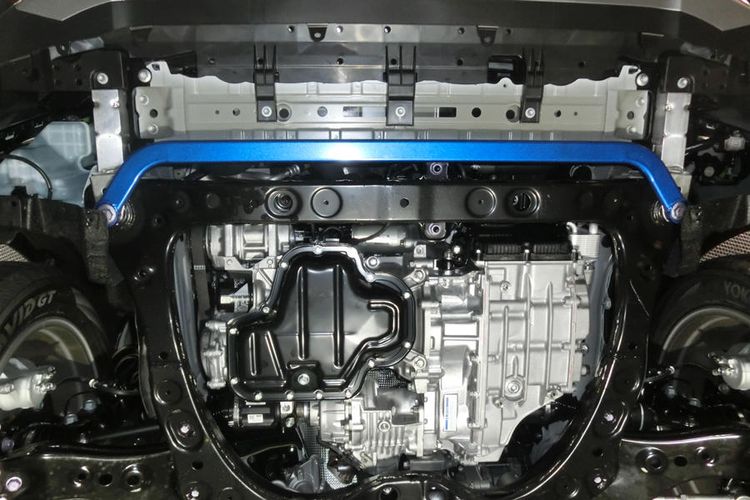

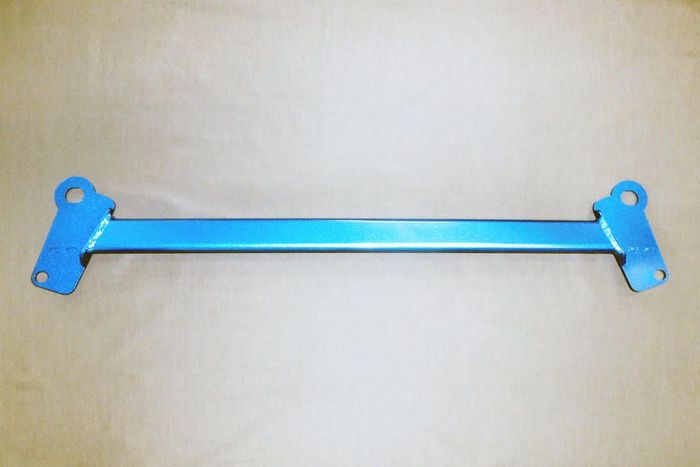

[Power Brace - Front Cross Member / Front]

Material : High Strength Steel Bar (STKM) t=1.6mm

Product Number

1C4 492 FMF

MSRP

$134.00

JAN Code

4996338110190

- Installation Time: 1.0 hours

***Not for Hybrid AWD Model***

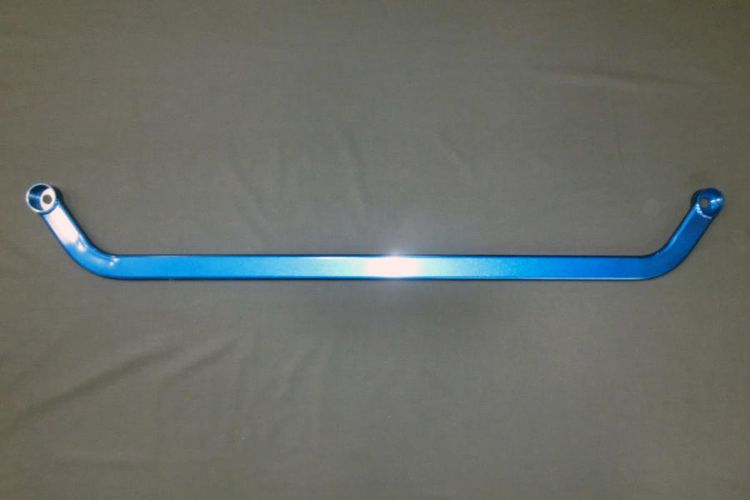

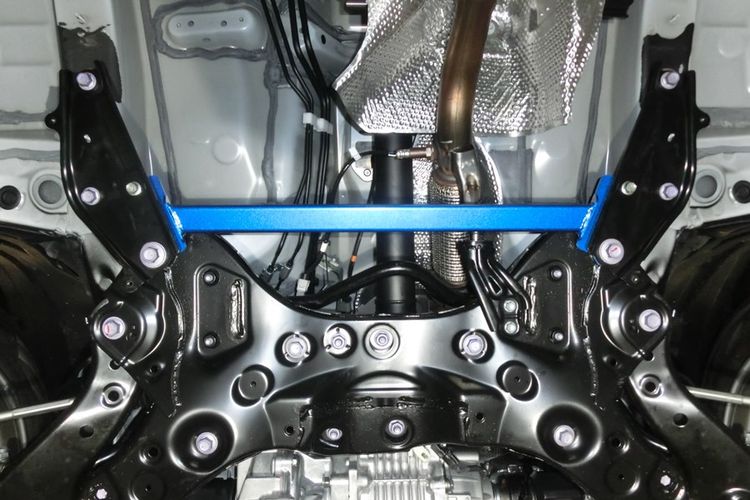

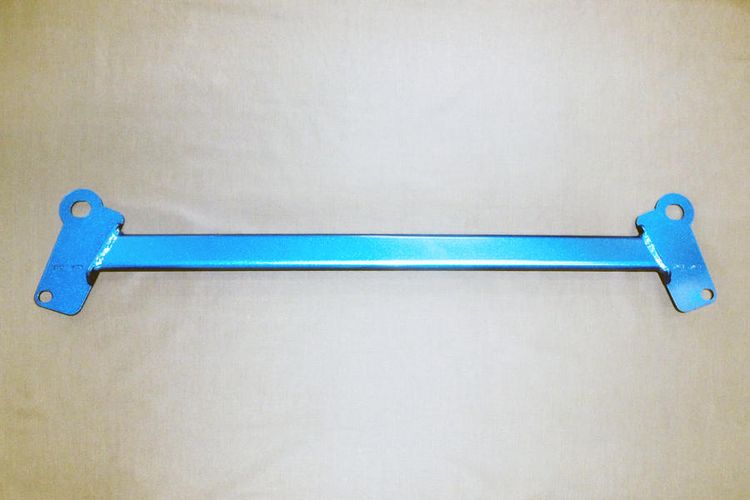

[Power Brace - Front Cross Member / Rear]

Material : High Strength Steel Bar (STKM) t=1.6mm

Product Number

1C4 492 FMR

MSRP

$134.00

JAN Code

4996338110206

- Installation Time: 1.0 hours

***Not for Hybrid AWD***

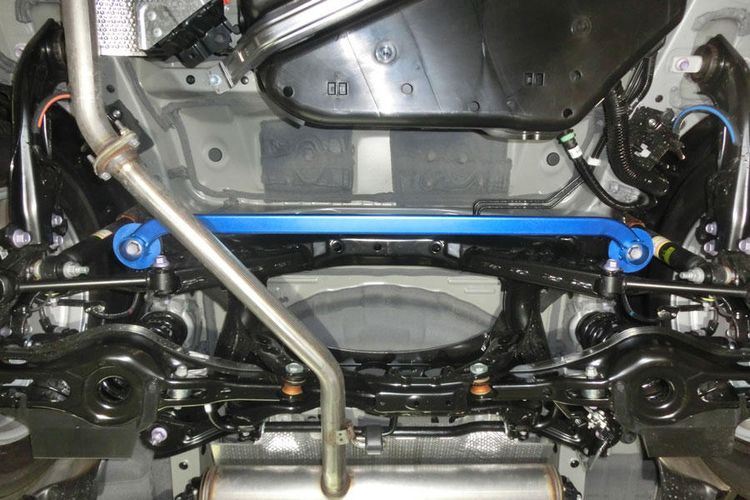

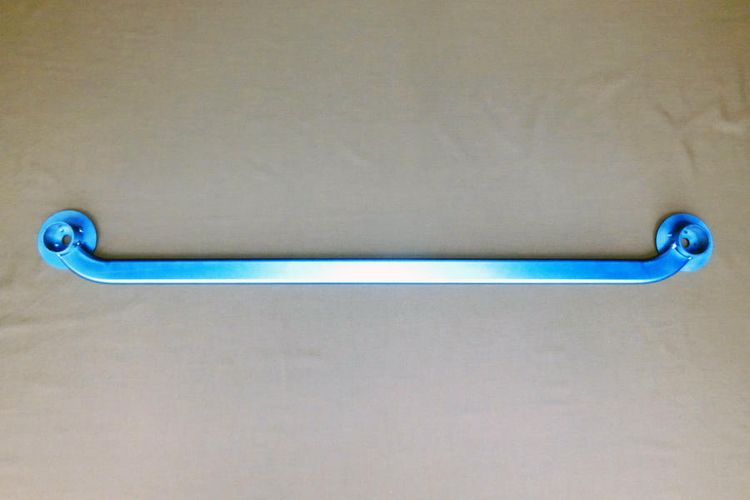

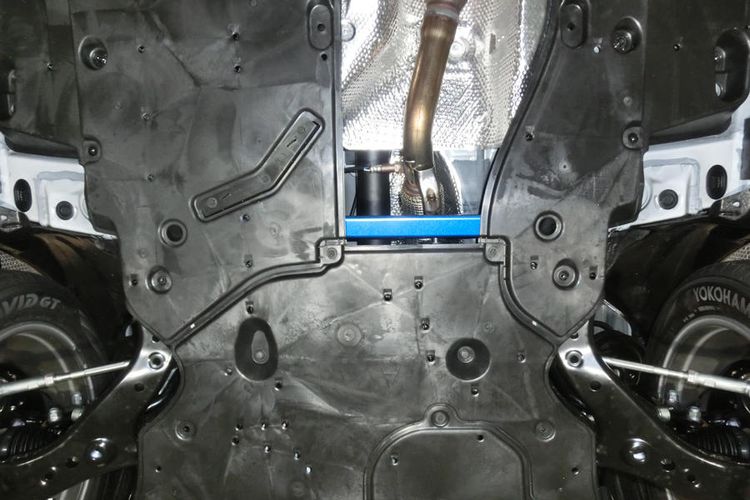

[Power Brace - Rear Cross Member]

Material : High Strength Steel Oval Shape Bar (STKM) t=1.6mm

Product Number

1C4 492 RM

MSRP

$134.00

JAN Code

4996338110213

- Installation Time: 0.5 hours

***This part can be fit on Front-Wheel-Drive models only***

[Door Stabilizer Set - New Release in July 2023]

CUSCO universal Door Stabilizer is designed to increase chassis rigidity by filling a door and body gap. By eliminating excess gap between a door and body, it improves steering response and chassis rigidity. For example, when changing a lane on a freeway.

Door Stabilizer Set

Product Number

00B 066 A

MSRP

$170.00

JAN Code

4996338117823

Price: US$170.00 per pair (Total of 2)

***Require to order x2 sets for all 4-Door Models (Front Doors & Rear Doors)

***Please click this link for more details.

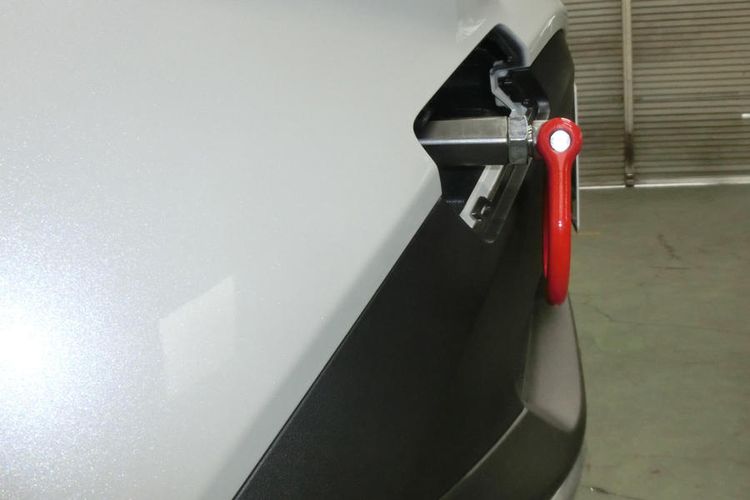

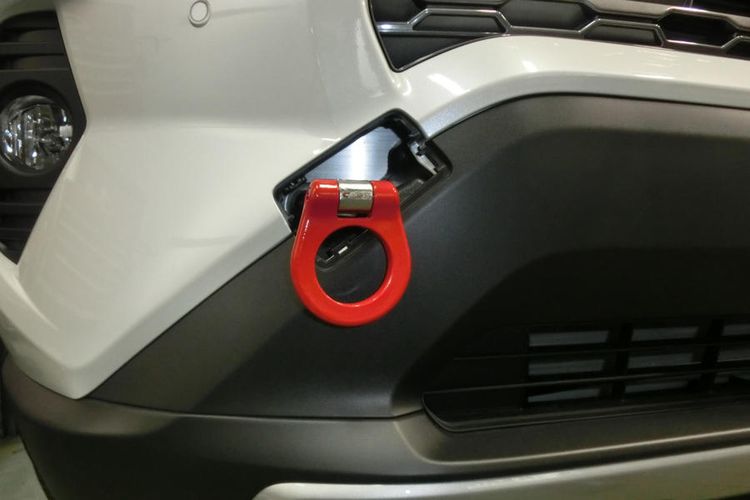

[Folding Tow Hook]

This item is easily fold (flat, up, and down), made of high strength steel, and painted in red. It bolts-on to OE tow hook mounts

[Front]

Material : High Strength Steel

Product Number

1C4 017 F

MSRP

$131.00

JAN Code

4996338109491

Note : Utilize OE tow-hook mounting location. (Front only)
Installation Time: N/A

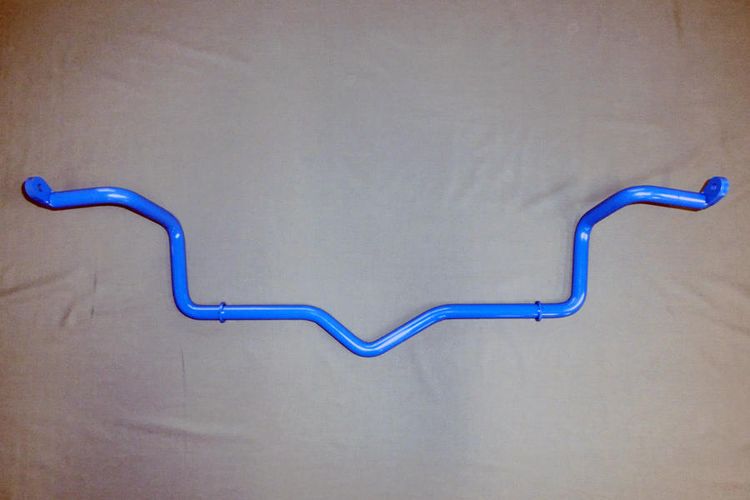

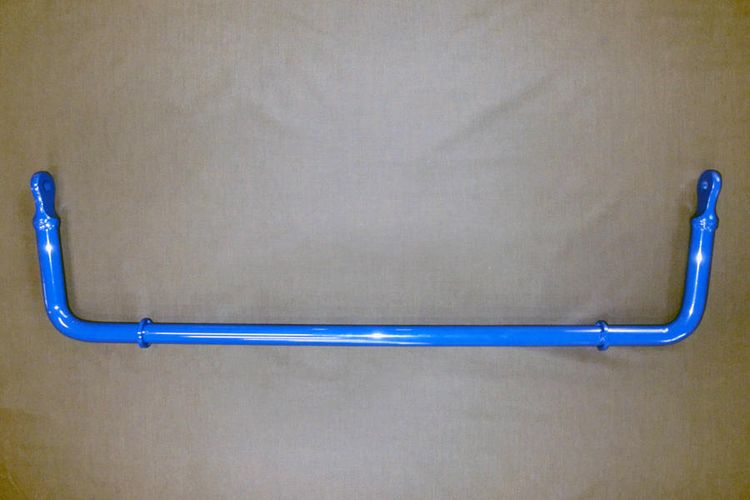

[Sway Bars]

• It helps to reduce the vehicle body roll during cornering.
• Additional benefits includes stability at high speed driving, install both front and rear for optimum performance.

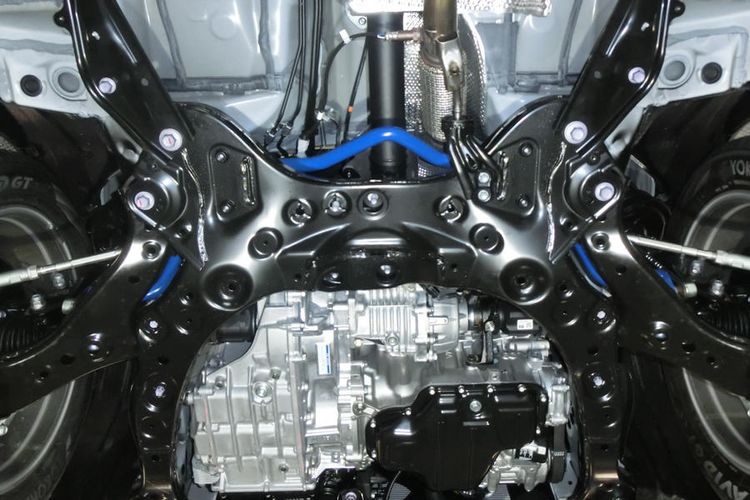

[Front]

Material : High Strength Steel

Product Number

1C4 311 A27

MSRP

$400.00

JAN Code

4996338062581

Note : CUSCO OD=27mm Solid Steel Bar (OE 25.4mm Hollow, 131% increase), x2 Bushings included and re-use OE brackets to install.

- Installation Time: 1.5 hours

*** Require to drop front member approx. 1-2 inch to remove OE sway bar and install CUSCO sway bar ***

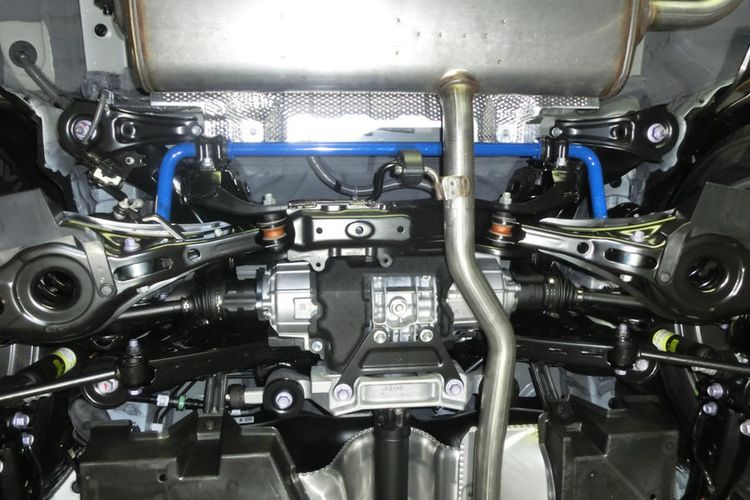

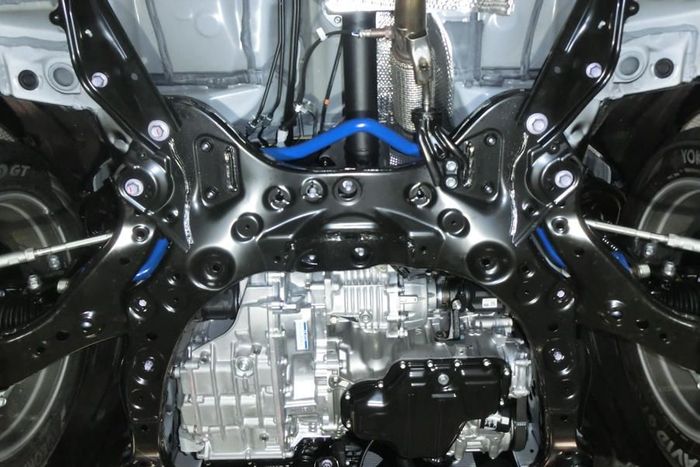

[Rear]

Material : High Strength Steel

Product Number

1C4 311 B24

MSRP

$374.00

JAN Code

4996338062598

Note : CUSCO OD=24mm solid (OE 23.2mm Hollow, 124% increase) x2 Bushings included and re-use OE brackets to install.

- Installation Time: 1.0 hours

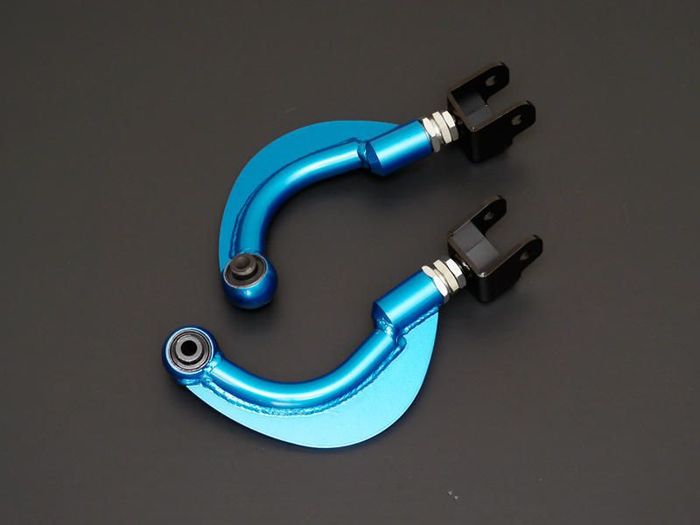

[Adjustable Rear Upper Arm Set]

• It allows to set proper camber angle by having turnbuckle adjustment.
• Additional benefits includes stability at high speed driving, even tire wear, and optimum brake performance.

Material : High Strength Steel

Product Number

1A1 474 L

MSRP

$614.00

JAN Code

4996338024329

Note : Rear camber adjustment range from +15mm to -8mm.
- Installation Time: 1.0 hours

*** This part is universal for '16+ Toyota Prius (4th generation), '17+ Toyota C-HR, '19+ Toyota Corolla Hatchback ***
