2023+ Toyota GR Corolla - Cusco Parts
- Model Year: 2023+
- Chassis Code: GZEA14H
- Engine Code: G16E-GTS (1.6L 3-Cylinder Turbo)
- Updated in December 2025 (Price update)
[Suspension Parts]

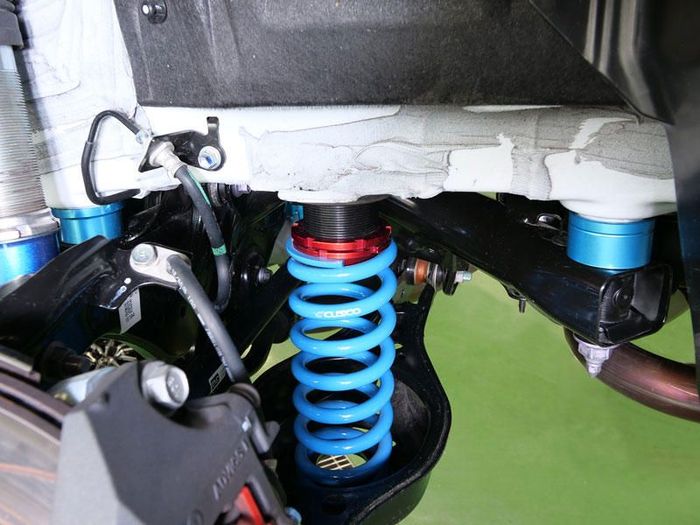

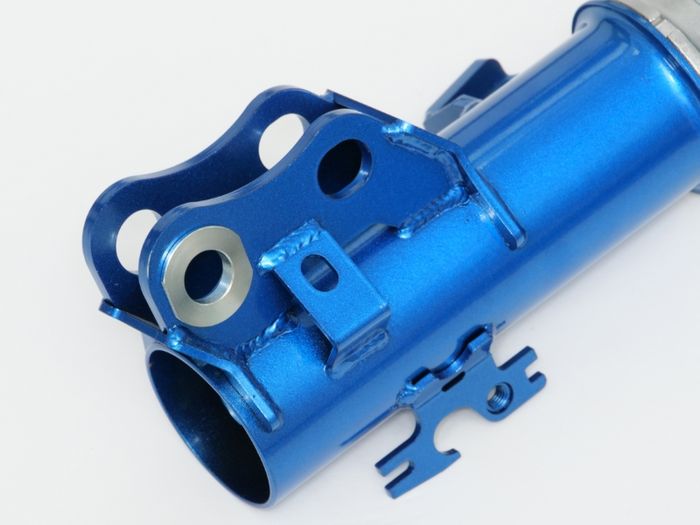

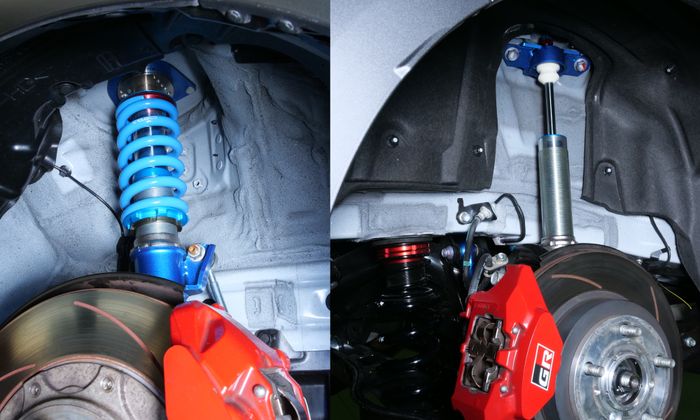

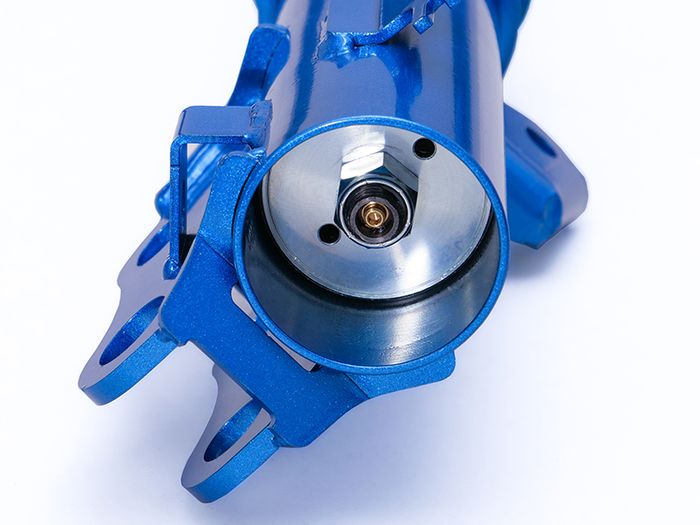

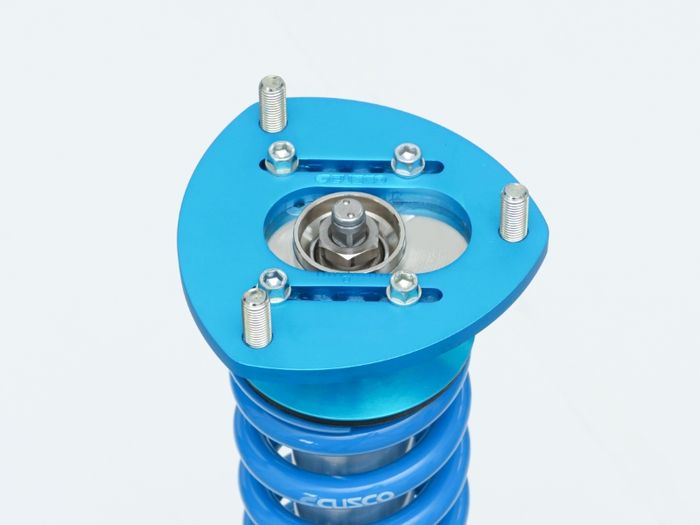

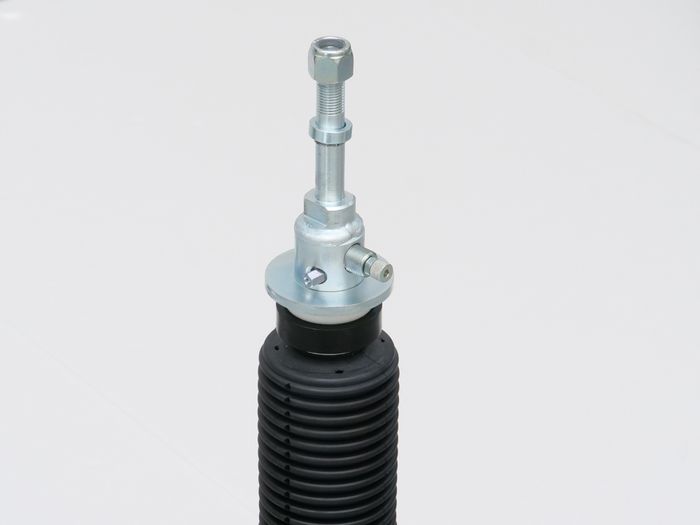

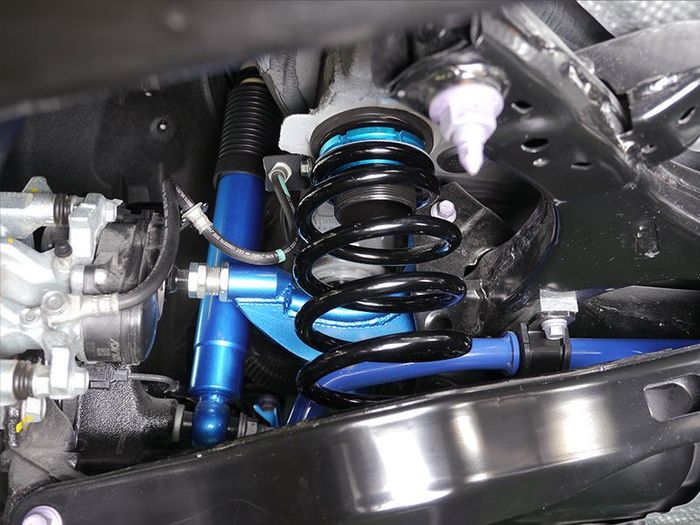

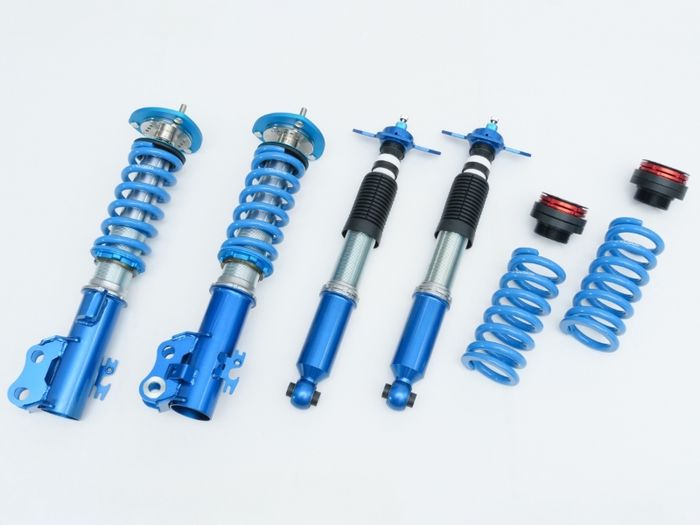

Coilover Kit

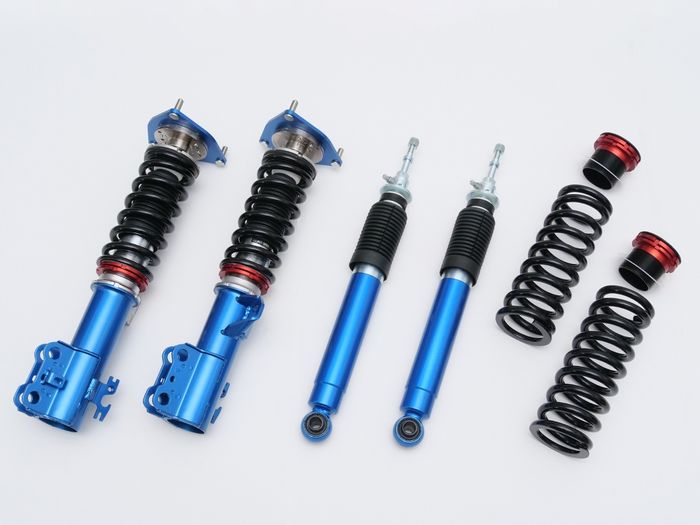

- Street Zero-A (Twin-Tube for Sport Daily Use)
- Coilover Kit - Street Zero-A / 40-way Damper Adjustable (Rear: Rubber Bushing Upper Mount)
# 1H1 61N CN- JAN:
4996338113252 - MSRP: $1,900.00 Set
- Coilover Kit - Street Zero-A / 40-way Damper Adjustable (Rear: Pillowball Upper Mount)
# 1H1 61N CP- JAN:
4996338113269 - MSRP: $2,100.00 Set
- Bolt-on / Direct OE Replacement Type
- 40-Way Twin-Tube Dampening Adjustment (Rebound only)
- Default Spring Rate: Front 7 kgf/mm & Rear 8 kgf/mm
- Optional Spring Rate available: Front 8 & 9 kgf/mm & Rear 7 & 9 kgf/mm
- Ride Height Adjusting Range: Front -20mm to 0mm (Stock Ride Height) & Rear -30 to 0mm (Stock Ride Height)
- Default Ride Height Setting: Front -15mm & Rear -15mm

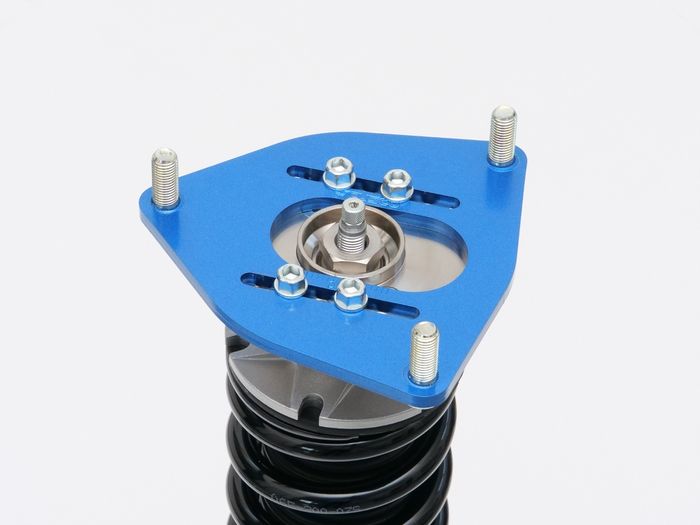

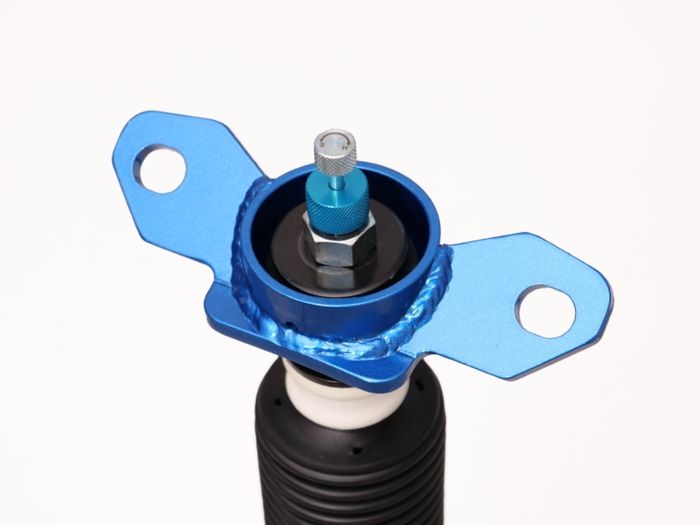

- Upper Mount:
- - 1H1-61N-CN : Front: Camber Adjustable Pillowball & Rear: Re-use OEM Upper Mount (Not included)

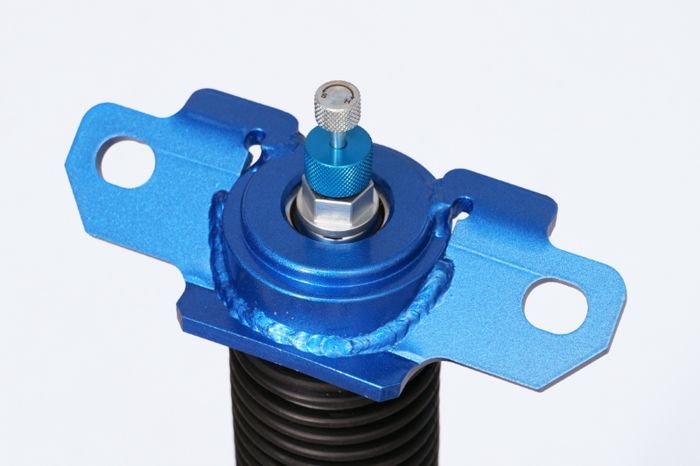

- - 1H1-61N-CP : Front: Camber Adjustable Pillowball & Rear: Pillowball Upper Mount (included)
- Sport-S (Mono-Tube for Comfort Sport Ride)
- Coilover Kit - Sport-S / 24-way Mono-Tube Damper Adjustable
# 1H1 64S CN- JAN:
4996338113375 - MSRP: $2,980.00 Set
- Bolt-on / Direct OE Replacement Type
- 24-Way Mono-Tube Single Dampening Adjustment (Rebound only)
- Default Spring Rate: Front 8 kgf/mm & Rear 12 kgf/mm
- Optional Spring Rate available: Front 7/9/10/11/12 kgf/mm & Rear 10/11/14/16 kgf/mm
- Max. Ride Height Adjusting Range: Front -45mm to 0mm & Rear -65mm to -5mm
- Default Ride Height Setting: Front -25mm & Rear -30mm
- Upper Mount:
- - Front: Camber Adjustable Pillowball (Adjustable Camber range: -4.5 deg to -1.0 deg with supplied shim)
- - Rear: HD Rubber Upper Mount (for comfort ride setting)
- Sport-R (Mono-Tube for Race/Competition)
- Coilover Kit - Sport-R / 24-way Mono-Tube Damper Adjustable
# 1H1 64R CP- JAN:
4996338113382 - MSRP: $3,180.00 Set
- Bolt-on / Direct OE Replacement Type
- 24-Way Mono-Tube Single Dampening Adjustment (Rebound only)
- Default Spring Rate: Front 16 kgf/mm & Rear 26 kgf/mm
- Optional Spring Rate available: Front 12/14 kgf/mm & Rear 14/16/18/22/24/28 kgf/mm
- Max. Ride Height Adjusting Range: Front -45mm to 0mm & Rear -65mm to -5mm
- Default Ride Height Setting: Front -25mm & Rear -30mm
- Upper Mount:
- - Front: Camber Adjustable Pillowball (Adjustable Camber range: -4.5 deg to -1.0 deg with supplied shim)
- - Rear: Pillowball Upper Mount (for solid feel ride setting)

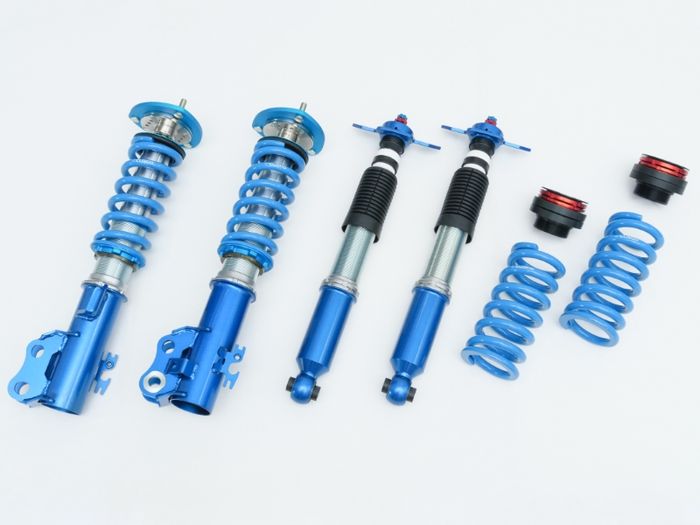

- Sport TN_S (Mono-Tube for Comfort Sport)
- Coilover Kit - Sport TN_S / 24-way Mono-Tube "Double" Damper Adjustable
# 1H1 64W CN- JAN:
4996338113351 - MSRP: $3,580.00 Set
- Bolt-on / Direct OE Replacement Type

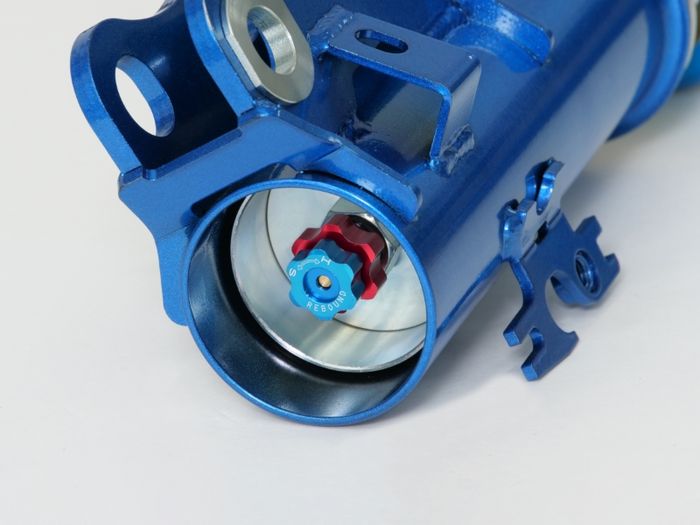

- 24-Way Mono-Tube Double Dampening Adjustment (Compression (Red Dial) / Rebound (Blue Dial))
- Default Spring Rate: Front 8 kgf/mm & Rear 12 kgf/mm
- Optional Spring Rate available: Front 7/9/10/11/12 kgf/mm & Rear 7/8/9 (L=250mm) kgf/mm & 10/11/14/16 (L=200mm with Spacer) kgf/mm
- Max. Ride Height Adjusting Range: Front -45mm to 0mm & Rear -65mm to -5mm
- Default Ride Height Setting: Front -25mm & Rear -30mm
- Upper Mount:
- - Front: Camber Adjustable Pillowball (Adjustable Camber range: -4.5 deg to -1.0 deg with supplied shim)

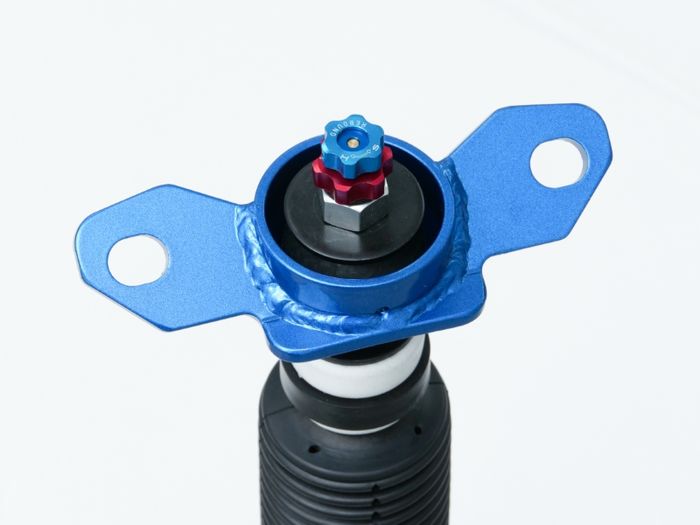

- - Rear: HD Rubber Upper Mount (for comfort ride setting)

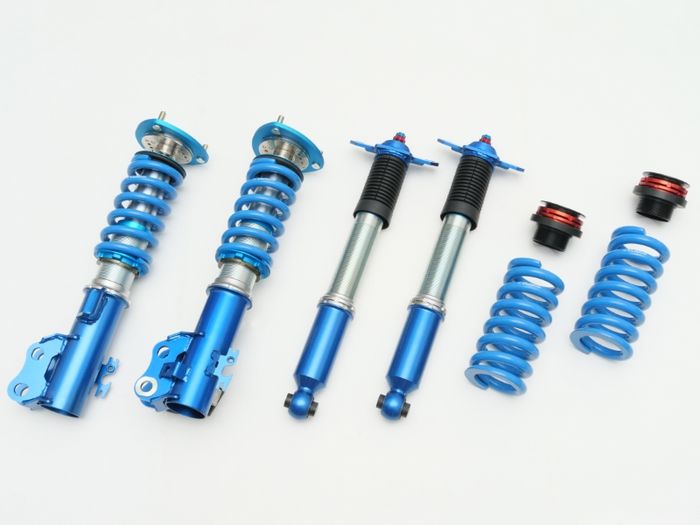

- Sport TN_R (Mono-Tube for Race/Competition)
- Coilover Kit - Sport TN_R / 24-way Mono-Tube "Double" Damper Adjustable
# 1H1 64V CP- JAN:
4996338113368 - MSRP: $3,780.00 Set
- Bolt-on / Direct OE Replacement Type
- 24-Way Mono-Tube Double Dampening Adjustment (Compression (Red Dial) / Rebound (Blue Dial))
- Default Spring Rate: Front 16 kgf/mm & Rear 26 kgf/mm
- Optional Spring Rate available: Front 12/14 (L=180mm) kgf/mm & Rear 14/16/18/22/24/28 (L=200mm) kgf/mm
- Max. Ride Height Adjusting Range: Front -45mm to 0mm & Rear -65mm to -5mm
- Default Ride Height Setting: Front -25mm & Rear -30mm
- Upper Mount:
- - Front: Camber Adjustable Pillowball (Adjustable Camber range: -4.5 deg to -1.0 deg with supplied shim)

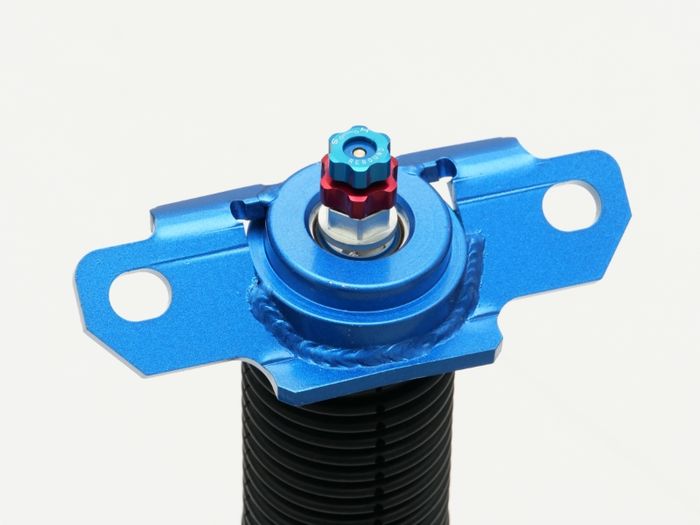

- - Rear: - Pillowball Upper Mount (for solid feel ride setting)
Sway Bar Set

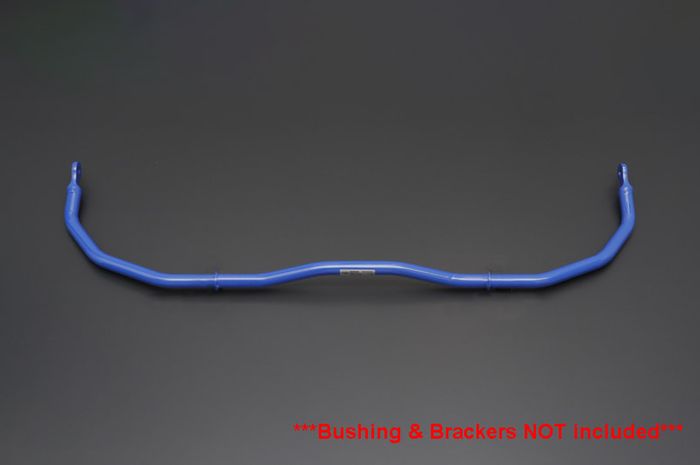

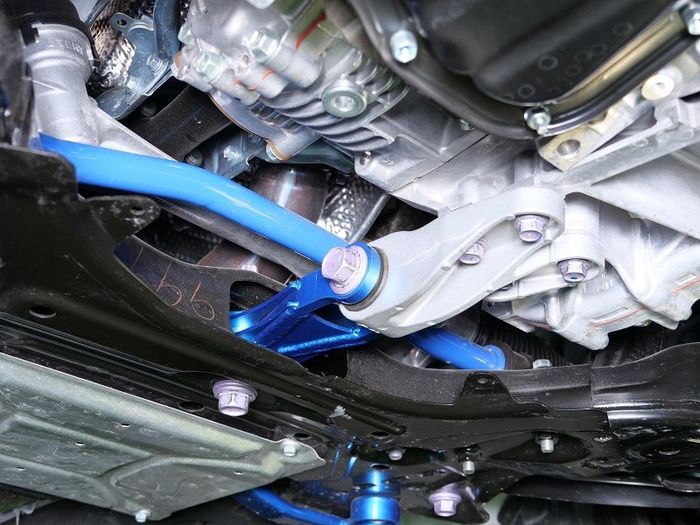

- Front Sway Bar
# 1H1 311 A28- JAN:
4996338062765 - MSRP: $430.00 each
- Bolt on installation
- Re-use OE Bushings to install (Not included)
- Bar Size: 28mm OD (OEM 26.5mm OD) / +51% Spring Rate
- Material: Solid Steel
- Installation Time: Approx. 2.5 hours

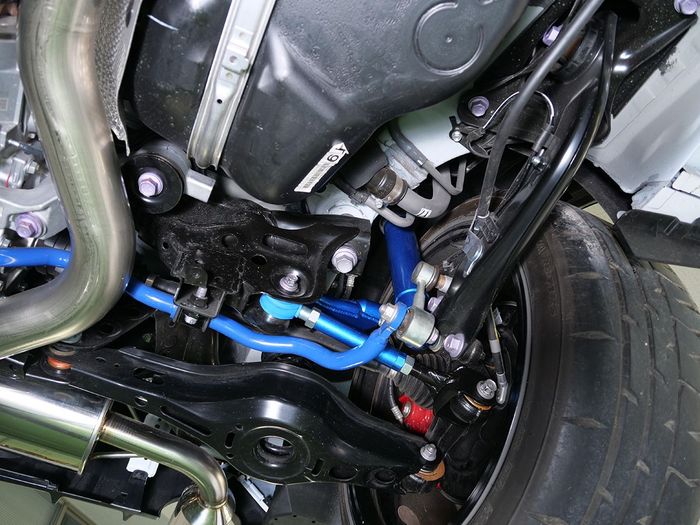

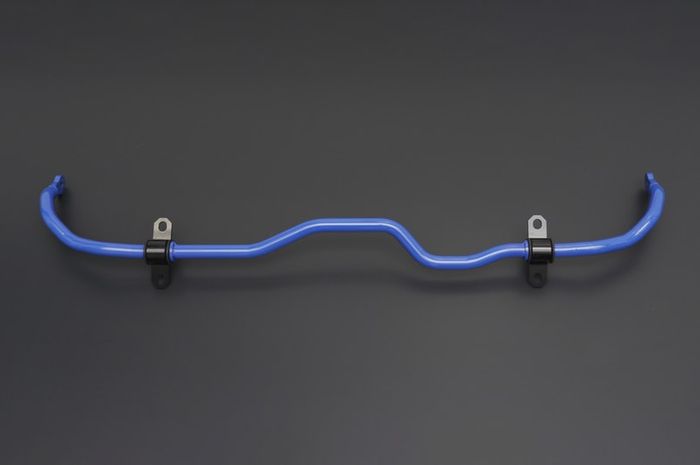

- Rear Sway Bar Set
# 1H1 311 B26- JAN:
4996338062772 - MSRP: $430.00 Set
- Bolt on installation
- Bushings, Spacers & Brackets included
- Bar Size: 26mm OD (OEM 24mm Early & 23mm OD Late) / +40% (Early) & +65% (Production after March 2025) Spring Rate
- Material: Solid Steel
- Installation Time: Approx. 1 hour

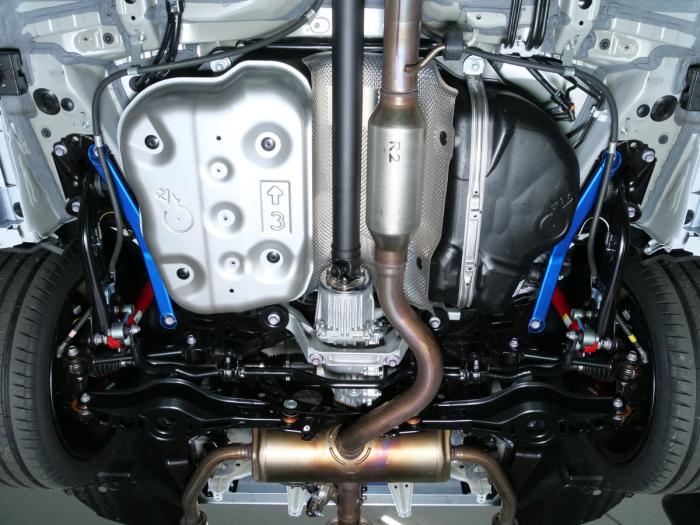

Suspension Arm/Link Set

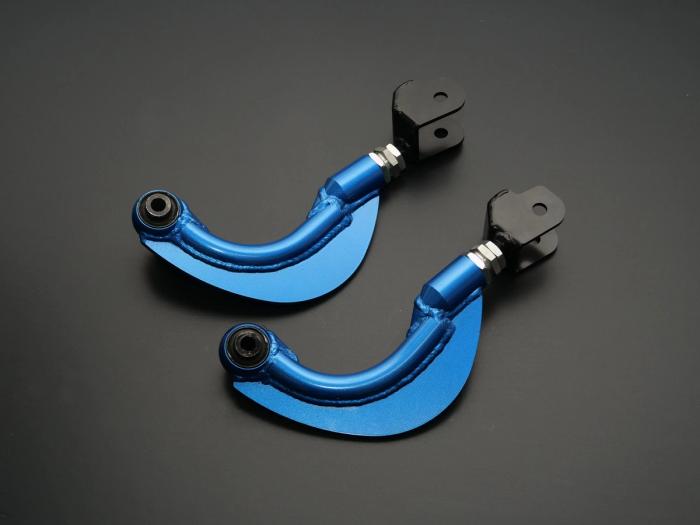

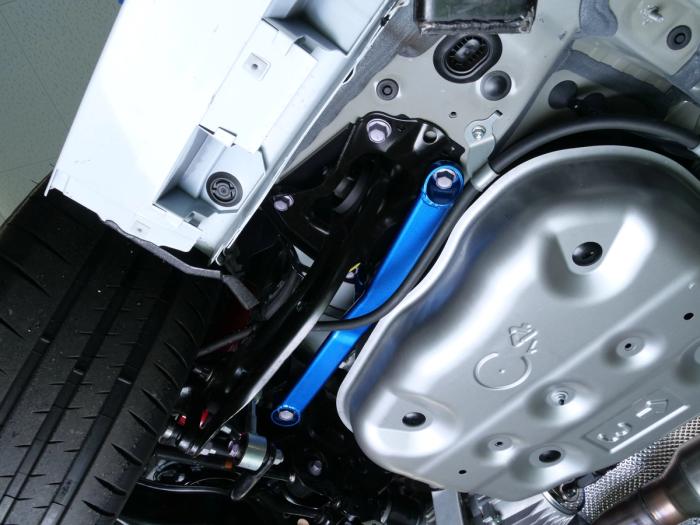

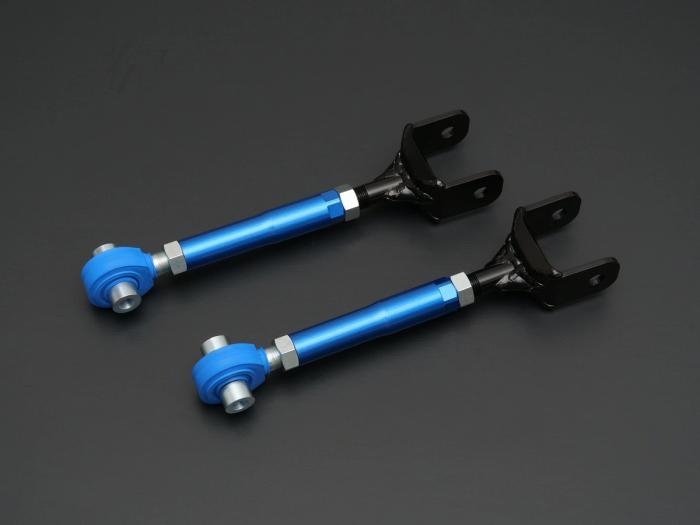

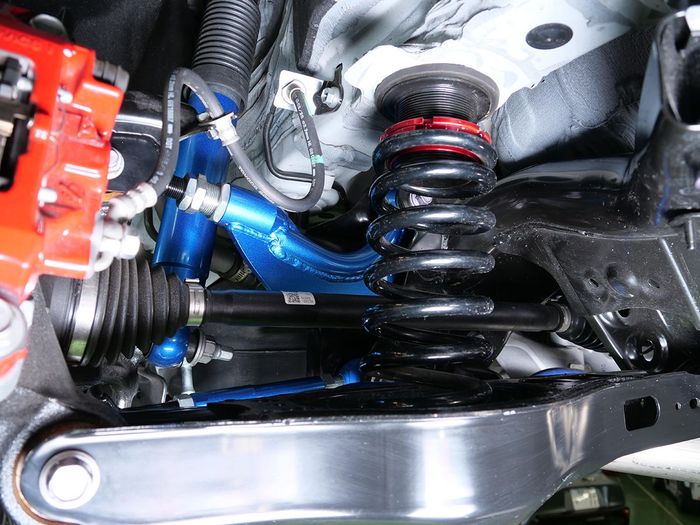

- Rear Camber Adjustable Upper Arm Set
# 1C7 474 L- JAN:
4996338024923 - MSRP: $700.00
- Bolt on installation
- For Rear Camber Adjustment
- Arm Length Adjusting Range: +/- 10mm
- Material: Solid Steel Arm with Rubber Bushing
- Rear Adjustable Lower Arm Set (Front side)
# 1C7 474 G- JAN:
4996338024930 - MSRP: $570.00
- Bolt on installation
- For Rear Toe In/Out Adjustment
- Arm Length Adjusting Range: +/- 10mm
- Material: Solid Steel Arm with Pillowball Rod End

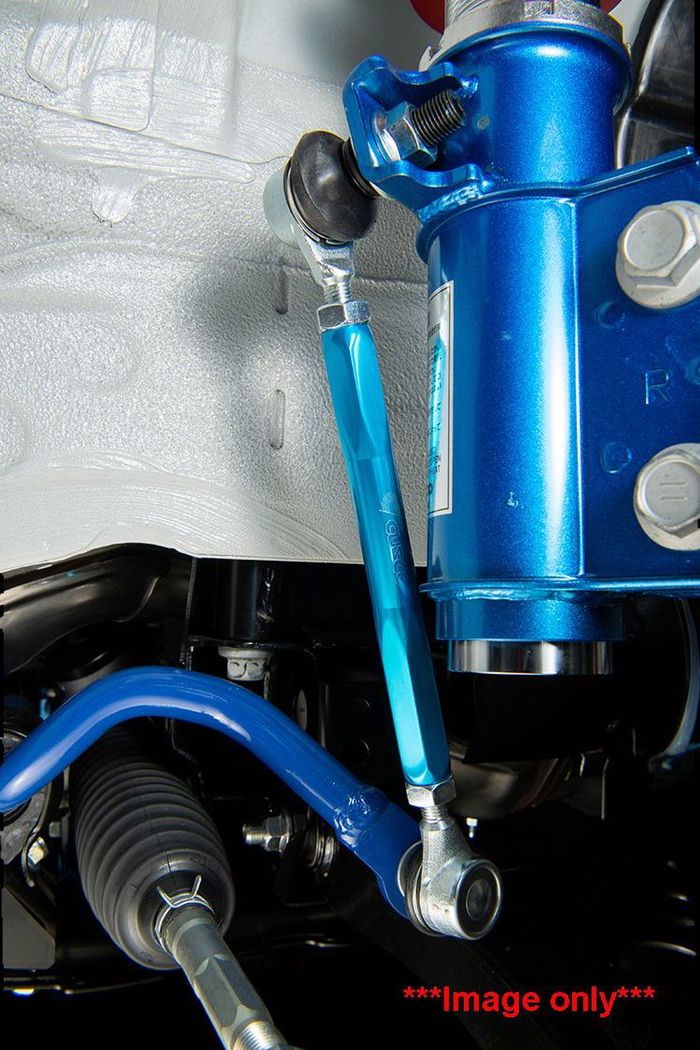

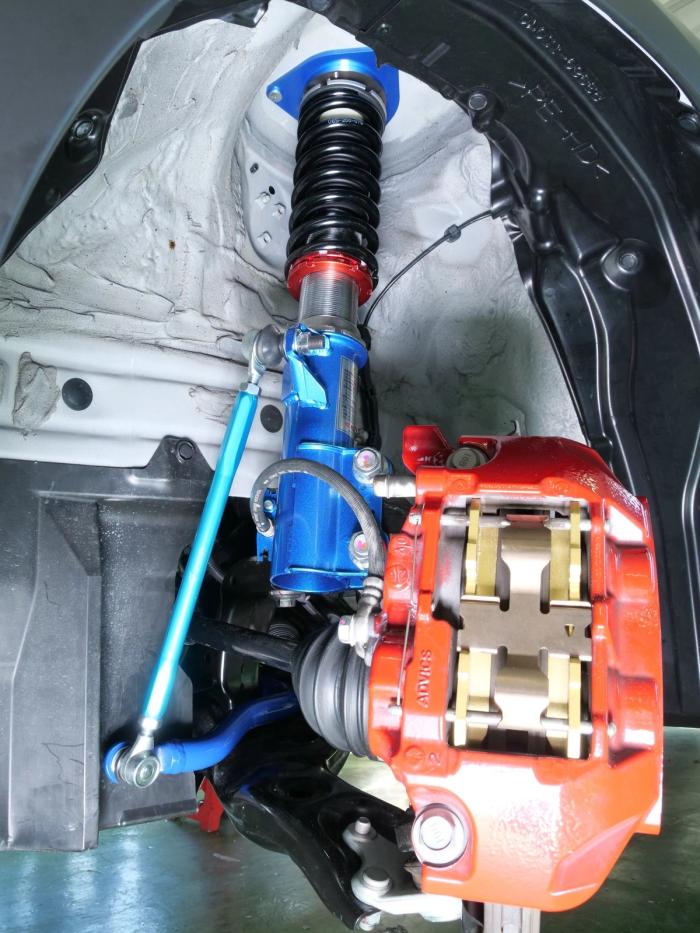

- Front Adjustable Sway Bar End-Link Set (Universal)
# 00B 318 A34- MSRP: $295.00
- Bolt-on / Direct OE Replacement Type
- Ball Joint - Thread Size: M10 x 1.25mm
- Adjusting Range: 345 - 375 mm
- Rod Length: 275mm
- Set of 2 pcs.
- Rear Adjustable Sway Bar End-Link Set (Short)
# 1C7 317 A- JAN:
4996338062680 - MSRP: $295.00 Set
- Rear Adjustable Sway Bar End-Link Set (Updated in2025)
# 1C7 317 AN- JAN:
4996338062833 - MSRP: $295.00 Set
- Bolt-on / Direct OE Replacement Type
- Ball Joint
- Adjusting Range: 1C7-317-A / 89 - 103 mm (OEM L=90mm)
- Adjusting Range: 1C7-317-AN / 114 - 136 mm (OEM L=90mm)
- Set of 2 pcs.

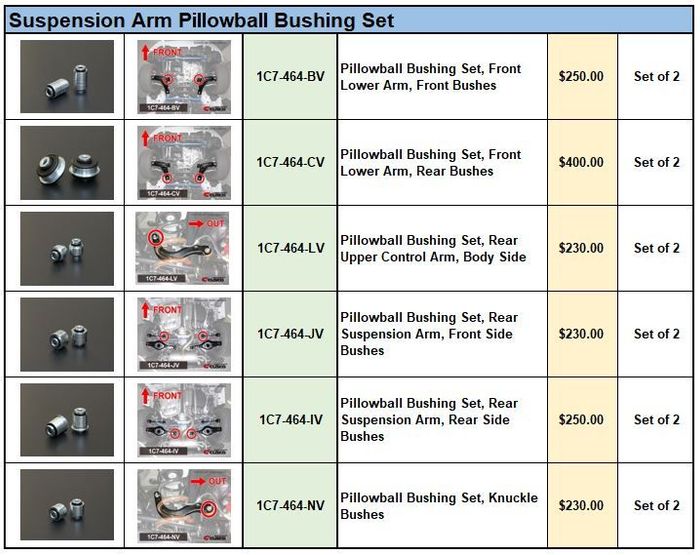

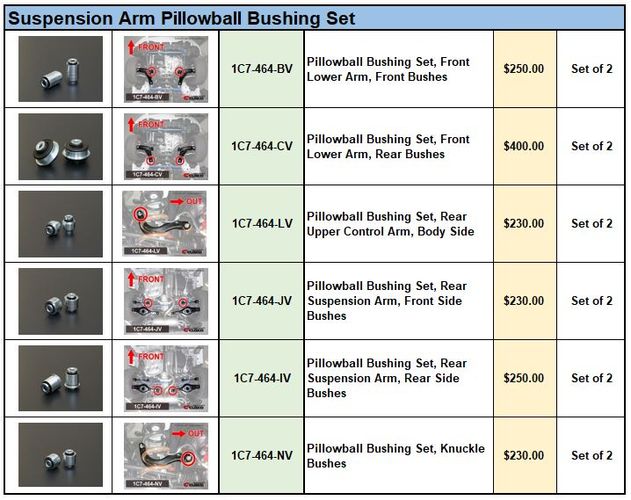

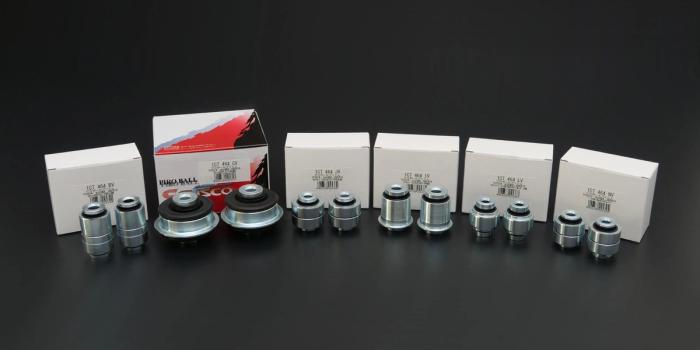

Front & Rear Suspension Arm Pillowball Bushing Set

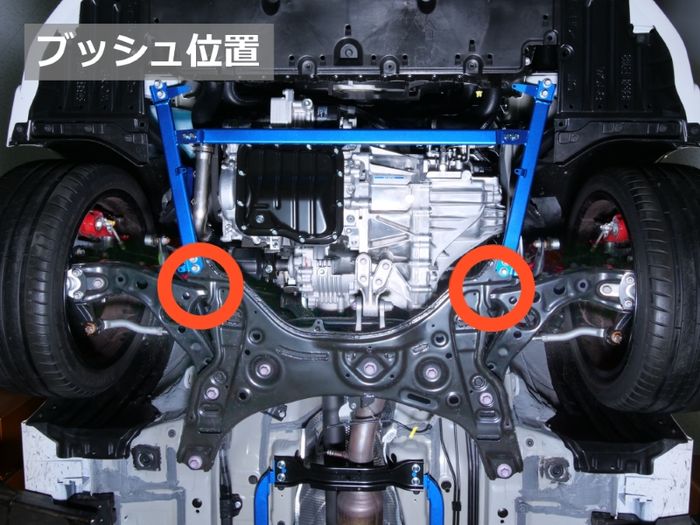

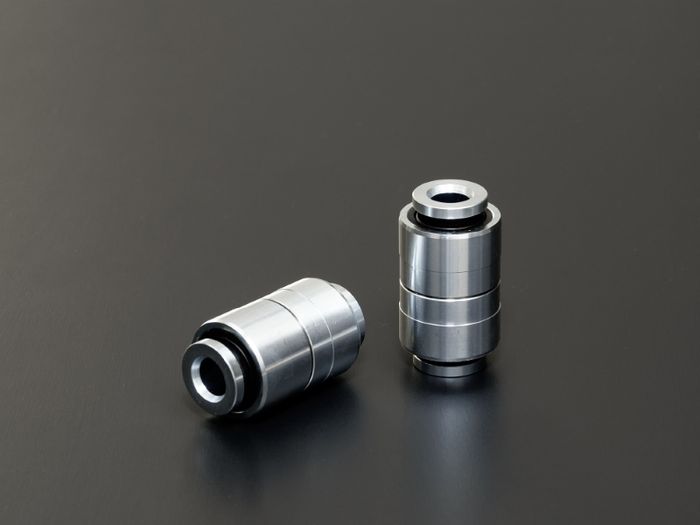

- Front Lower Arm Pillowball Bushing (Front Side)
# 1H1 464 BV- JAN:
4996338025487 - MSRP: $410.00 Set
- Bolt-on / Direct OE Replacement Type
- Pillowball Bushing (Solid Metal)
- Set of 2 pcs.
- Bolt-on / Direct OE Replacement Type

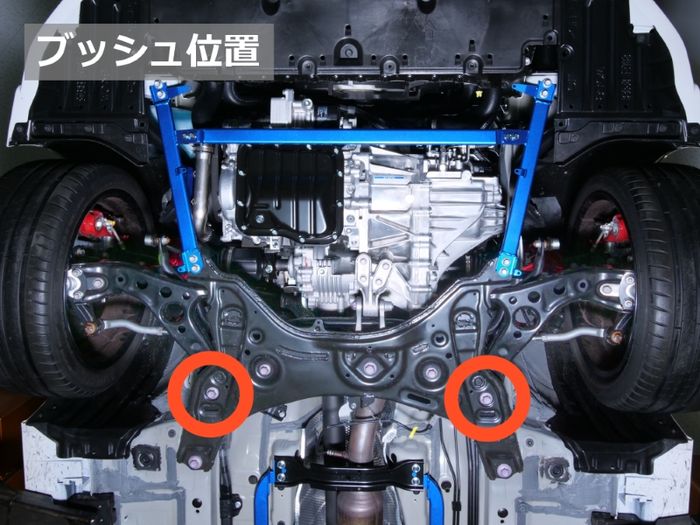

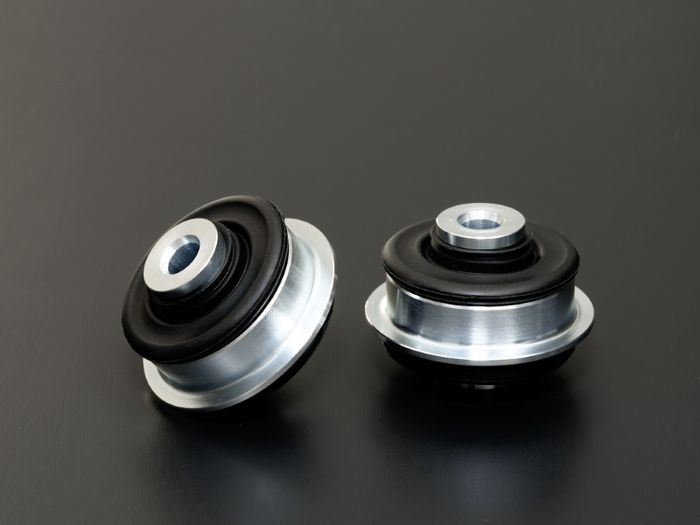

- Front Lower Arm Pillowball Bushing (Rear Side)
# 1H1 464 CV- JAN:
4996338025494 - MSRP: $770.00 Set
- Pillowball Bushing (Solid Metal)
- Set of 2 pcs.
- Rear Trailing Arm Pillowball Bushing
# 1C7 464 EV- JAN:
4996338025470 - MSRP: $570.00 Set
- Bolt-on / Direct OE Replacement Type
- Pillowball Bushing (Solid Metal)
- Set of 2 pcs.

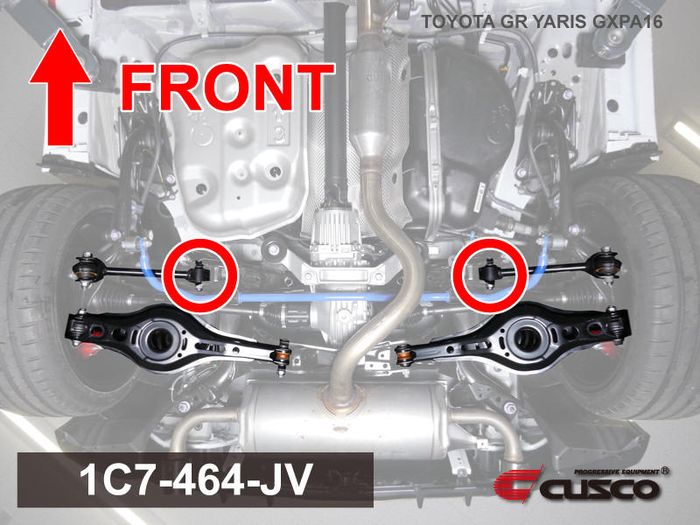

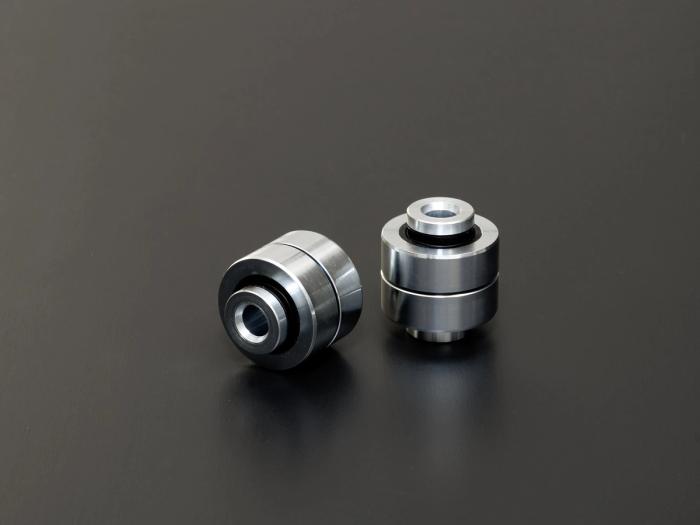

- Rear Suspension Arm Pillowball Bushing
# 1C7 464 JV- JAN:
4996338025364 - MSRP: $360.00 Set
- Bolt-on / Direct OE Replacement Type
- Pillowball Bushing (Solid Metal)
- Set of 2 pcs.

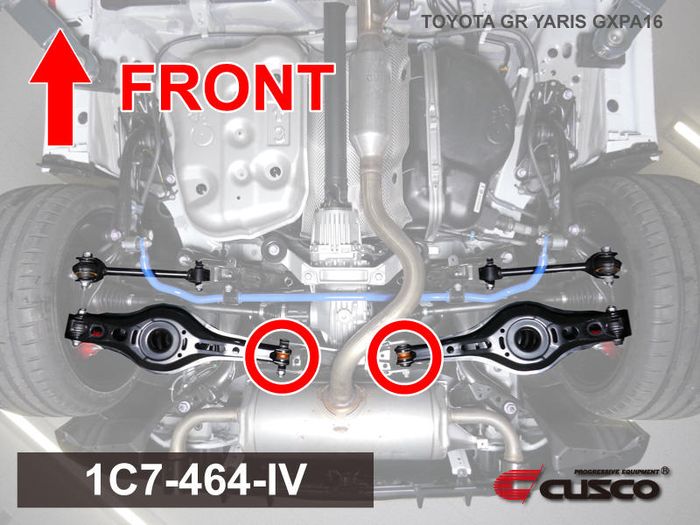

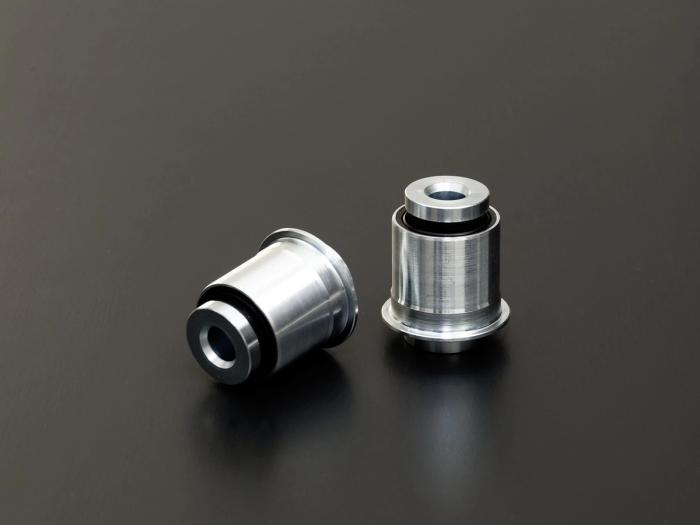

- Rear Suspension Arm (Rear side) Pillowball Bushing
# 1C7 464 IV- JAN:
4996338025371 - MSRP: $360.00 Set
- Bolt-on / Direct OE Replacement Type
- Pillowball Bushing (Solid Metal)
- Set of 2 pcs.

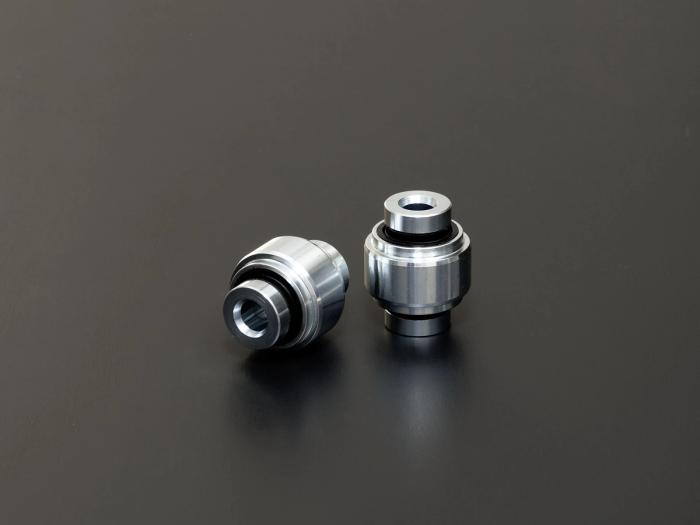

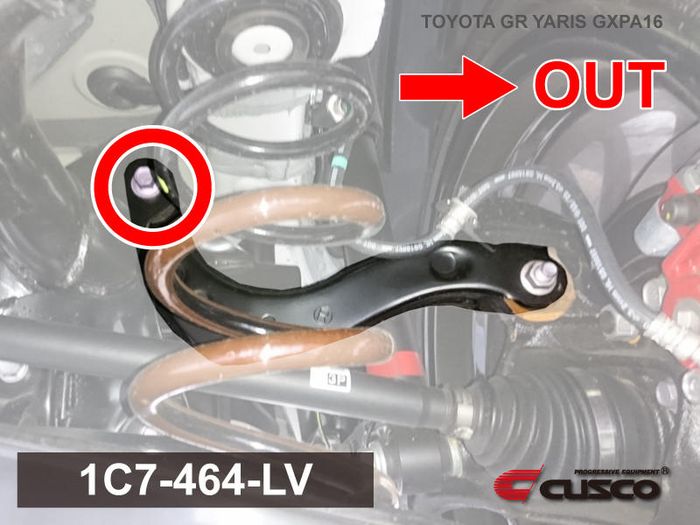

- Rear Upper Control Arm Pillowball Bushing
# 1C7 464 LV- JAN:
4996338025388 - MSRP: $360.00 Set
- Bolt-on / Direct OE Replacement Type
- Pillowball Bushing (Solid Metal)
- Set of 2 pcs.

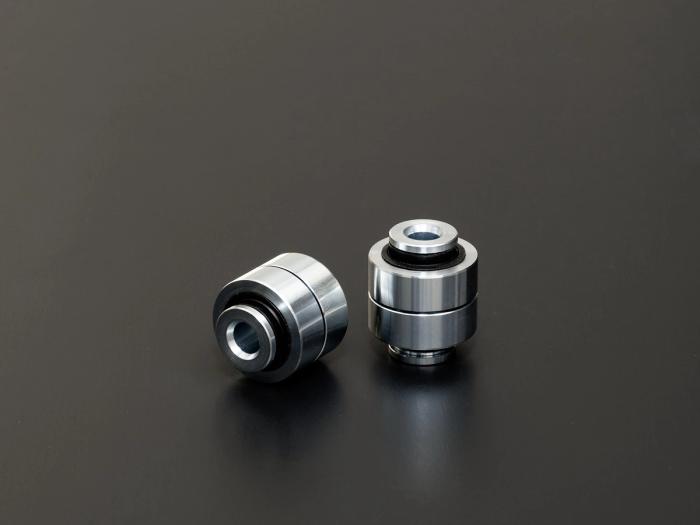

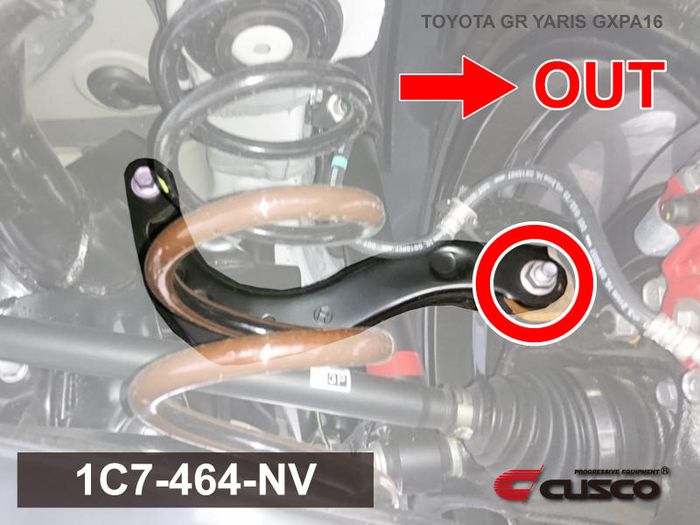

- Rear Knuckle Pillowball Bushing
# 1C7 464 NV- JAN:
4996338025395 - MSRP: $335.00 Set
- Bolt-on / Direct OE Replacement Type
- Pillowball Bushing (Solid Metal)
- Set of 2 pcs.
[Chassis & Body Braces]

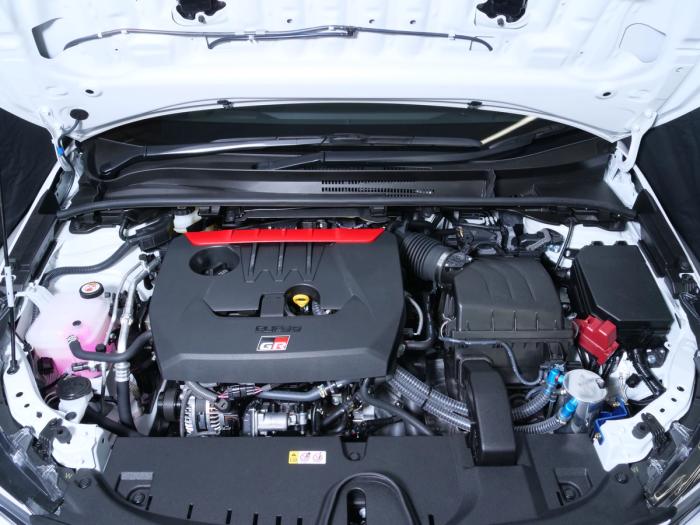

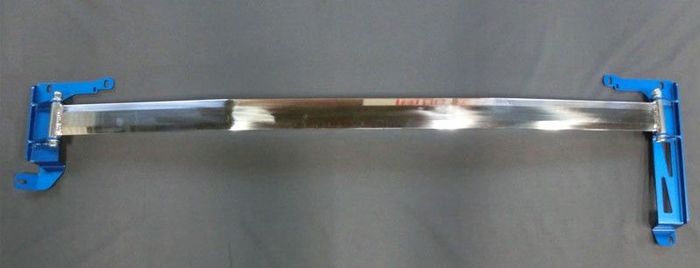

Front Strut Tower Brace
# 1A9 540 A- JAN:
4996338039286 - MSRP: $220.00 set
- Material: High Strength Steel Side Brackets + Light Weight Aluminum Oval Shape (Type-OS) Wide Bar - Type 3
- Type-OS (Flat Wide Oval Shape Bar)
- Bolt-on
***Bolt-on (Installation Time 0.5-1.0 hrs)

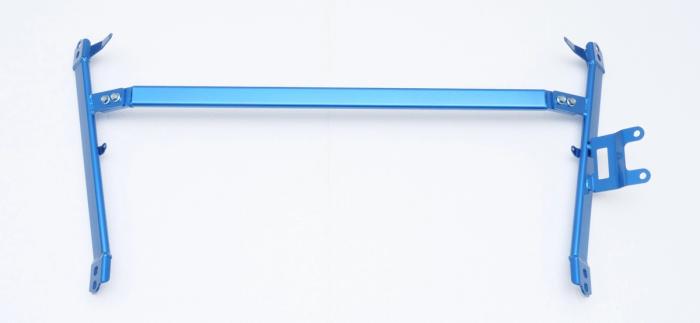

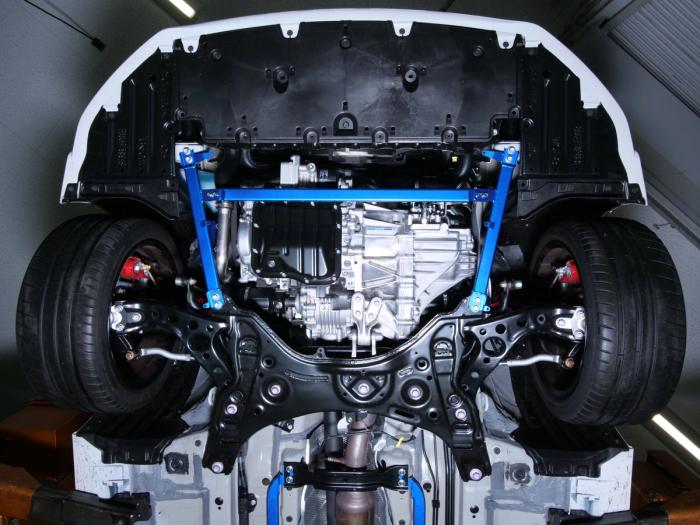

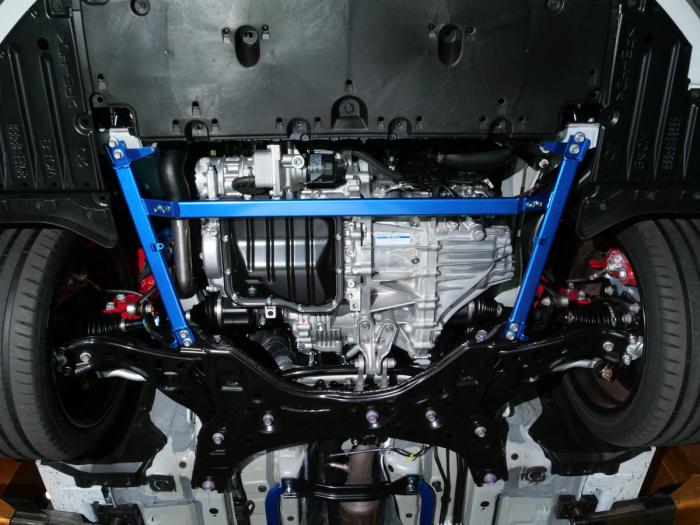

Front Member Brace

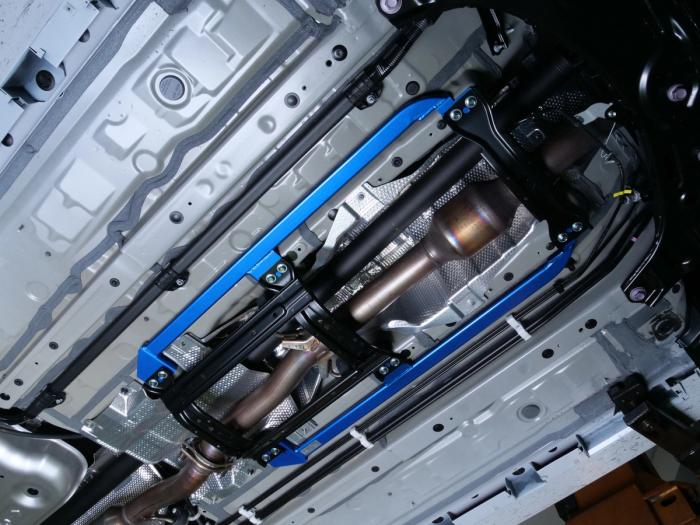

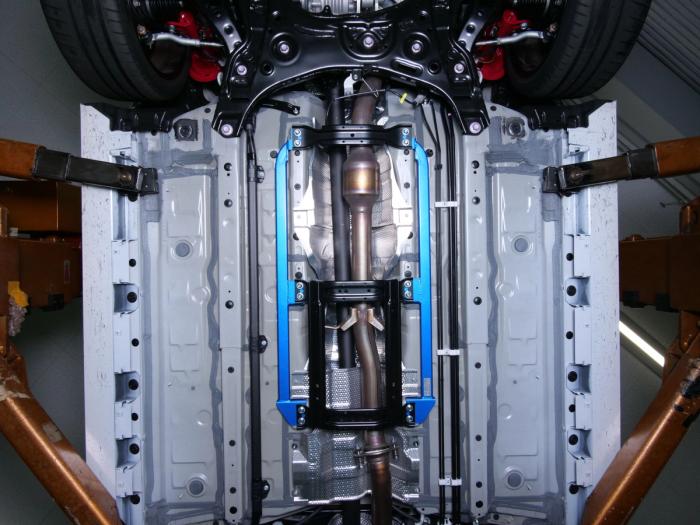

Center Brace

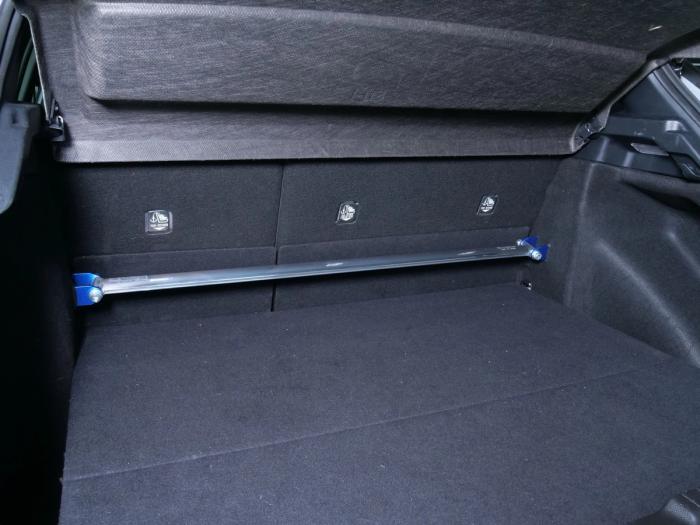

Rear Brace

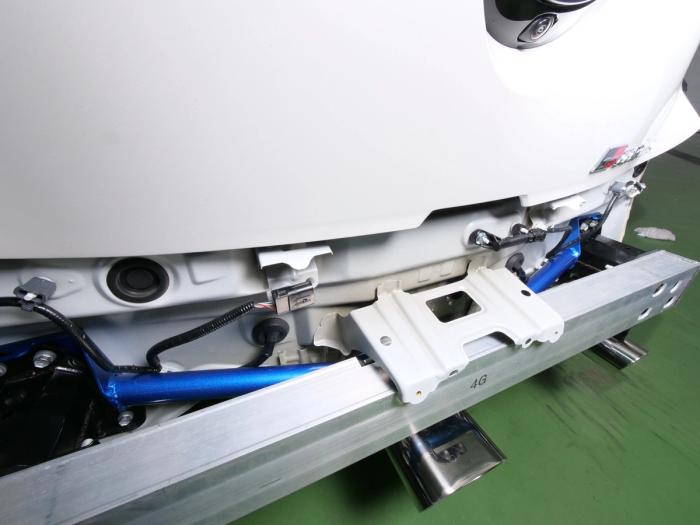

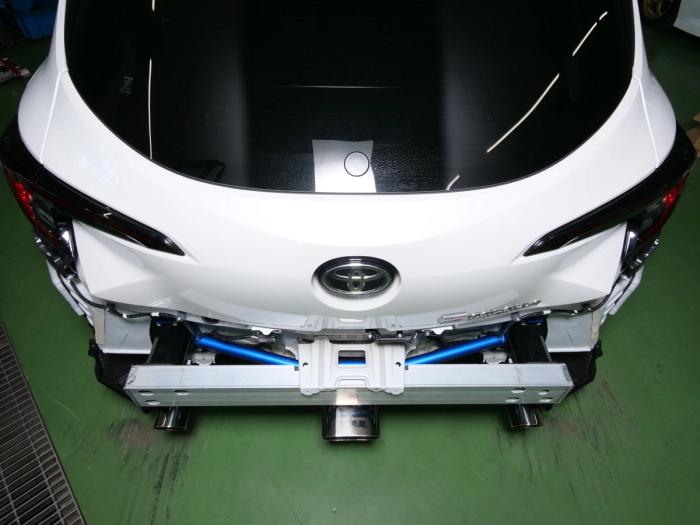

Rear End Brace

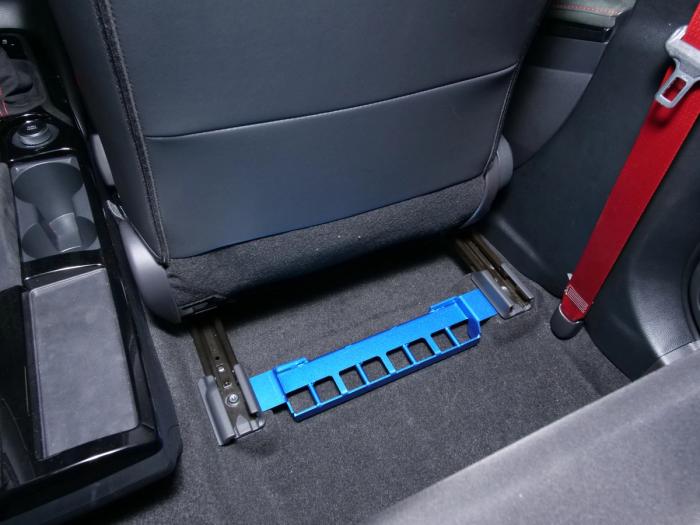

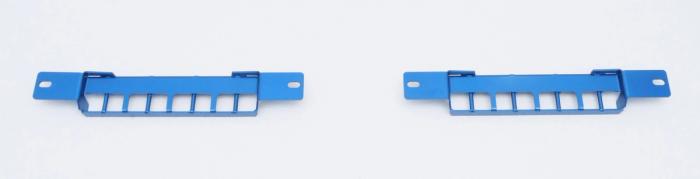

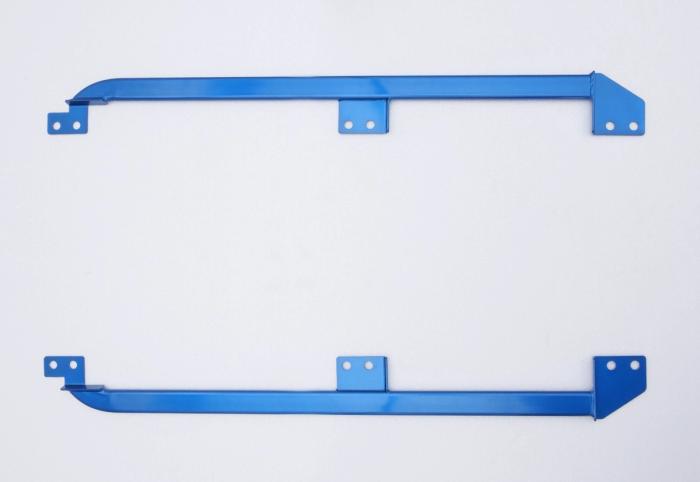

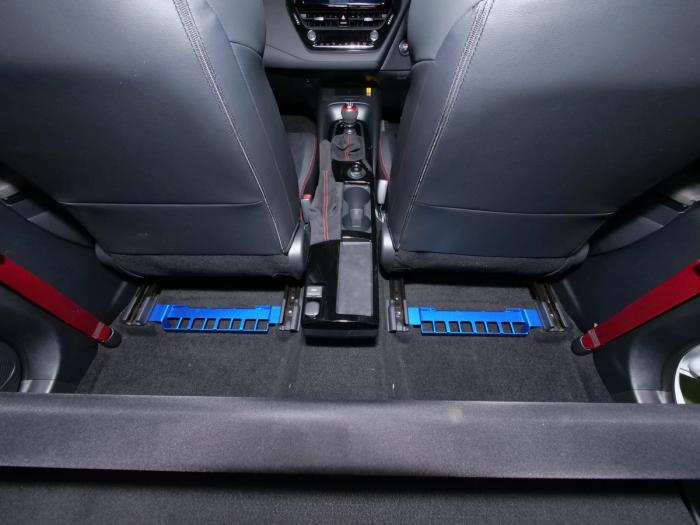

Seat Rail Plus for Safety Harness

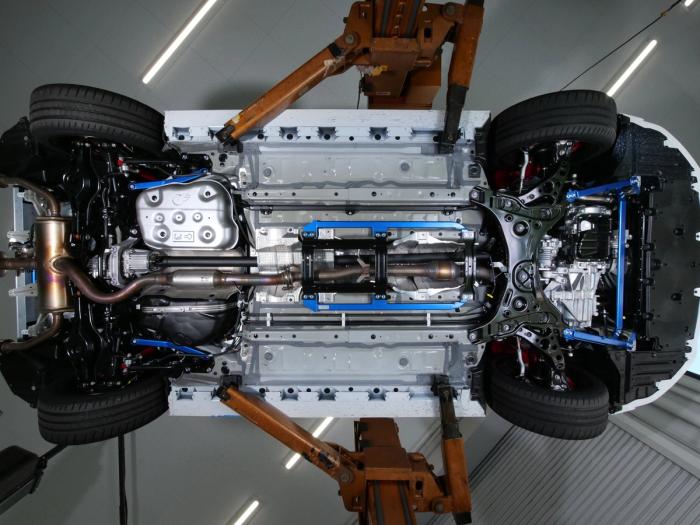

***Overall Installation Image***
[Engine Parts]

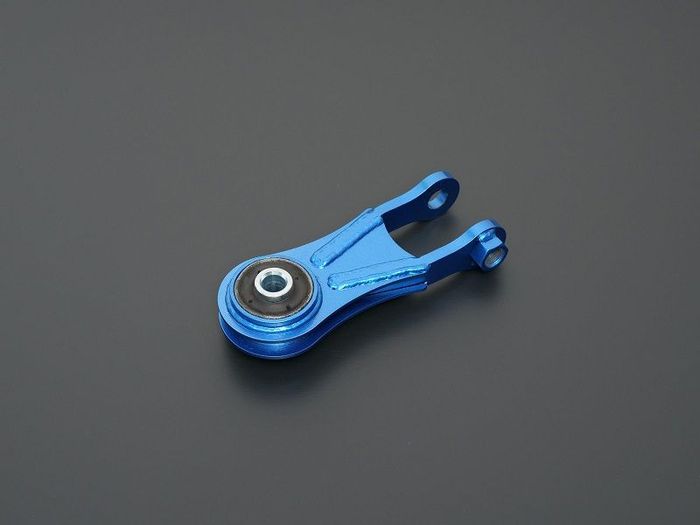

Engine Pitching Stopper
- Steel Engine Pitching Stopper
# 1C7 911 PS- JAN:
4996338025418 - MSRP: $260.00 each
- Bolt-on / Direct OE Replacement
- Material: Steel construction with HD Rubber Bushing
- Reducing engine pitch movement
- Improving gear shifting feel

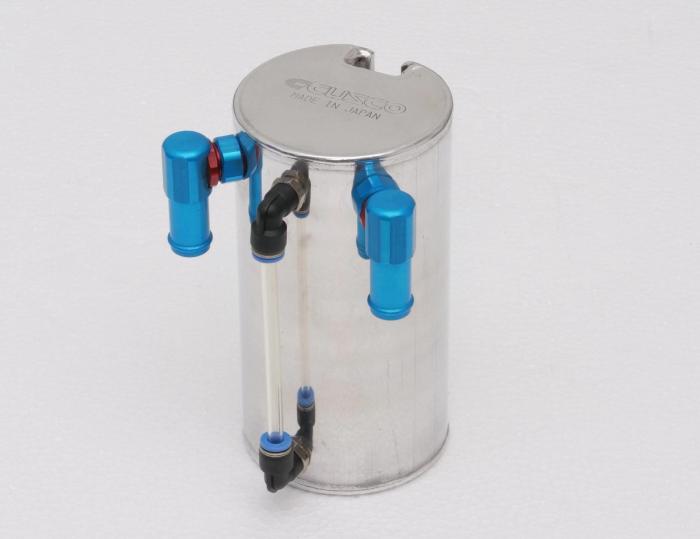

Oil Catch Tank Kit
- Oil Catch Tank Kit
# 1H1 009 A- JAN:
4996338040435 - MSRP: $175.00 Set
[Drivetrain Parts]

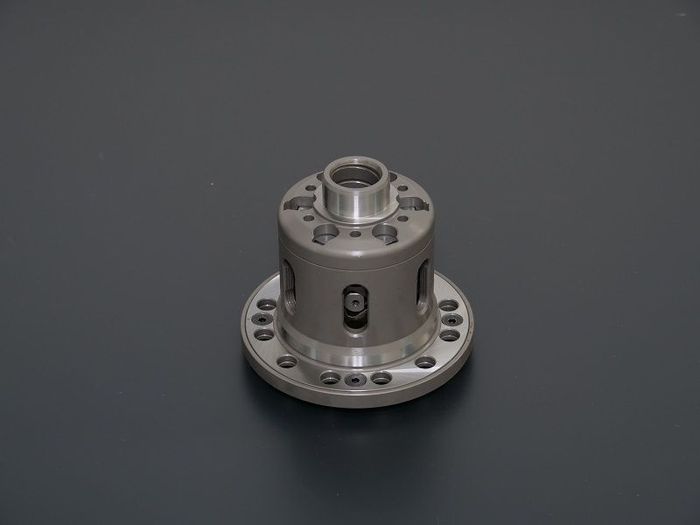

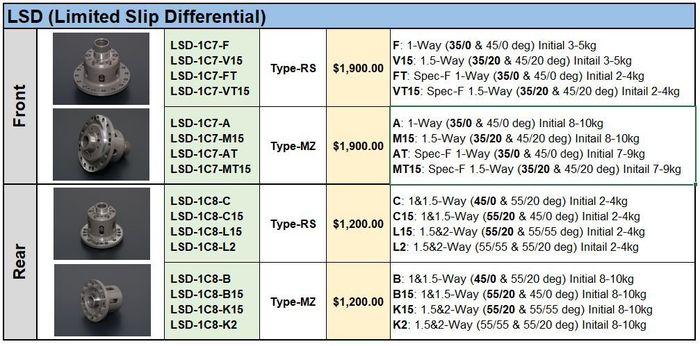

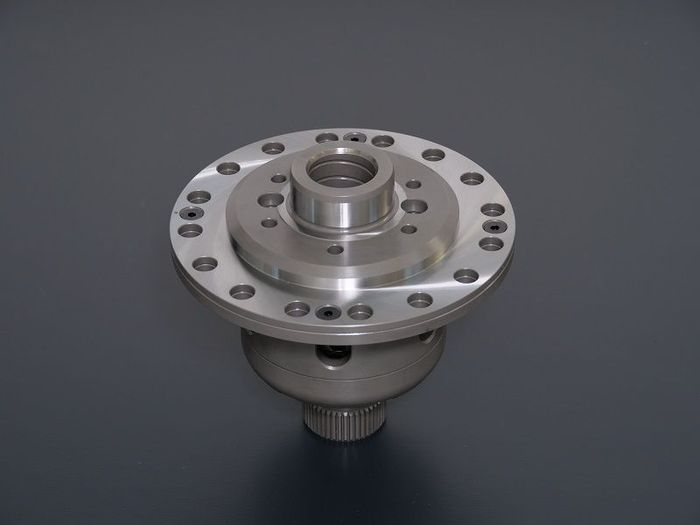

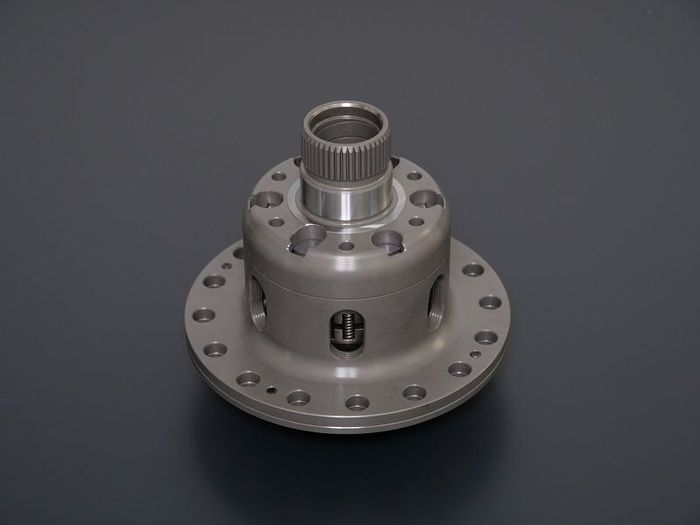

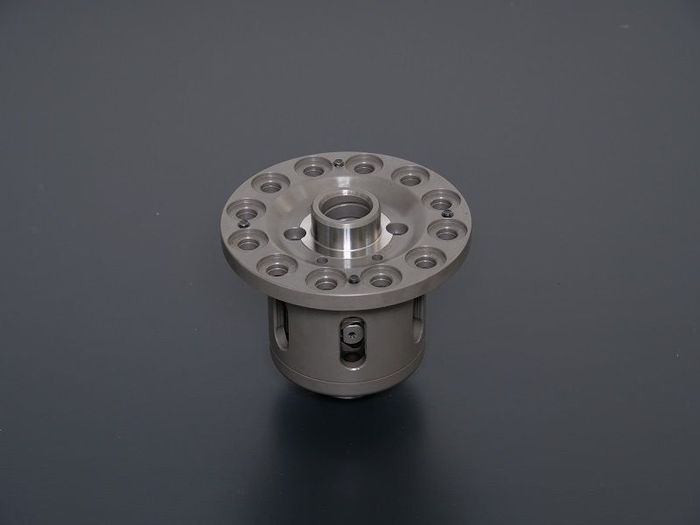

Limited Slip Differential (LSD)
- Front: Type-RS/MZ: LSD-1C7-###
- Rear: Type-RS/MZ: LSD-1C8-###

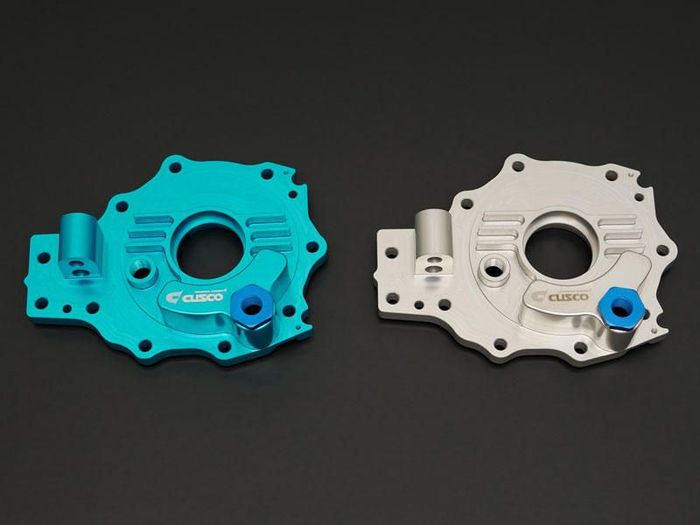

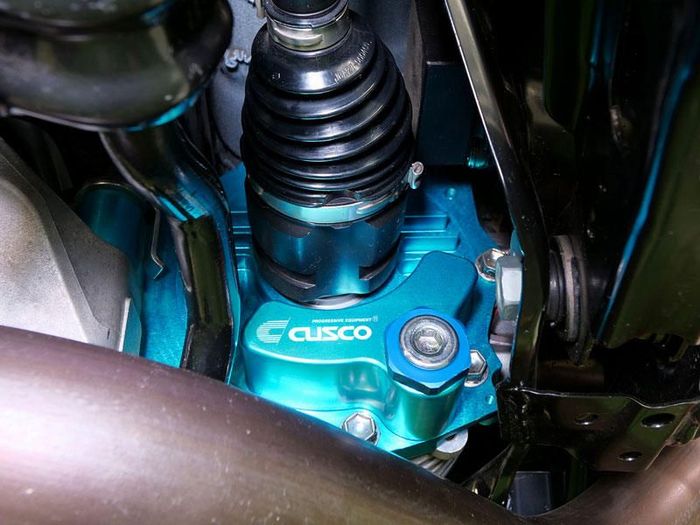

High Oil Capacity Differential Cover
- Billet Aluminum "High Capacity" Differential Cover
# 1C7 008 AS (Silver) / AL (Blue)- JAN:
4996338108913 (AS) / 4996338108920 (AL) - MSRP: $995.00 each
+250cc Oil Capacity
- Bolt-on / Direct OE Replacement Type
- Material: Billet Aluminum +250cc Oil Capacity with Cooling Fins design
- Silver or Blue color available

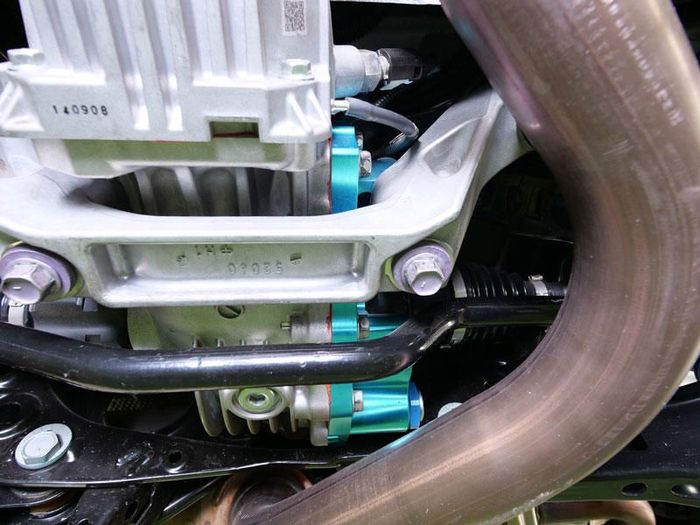

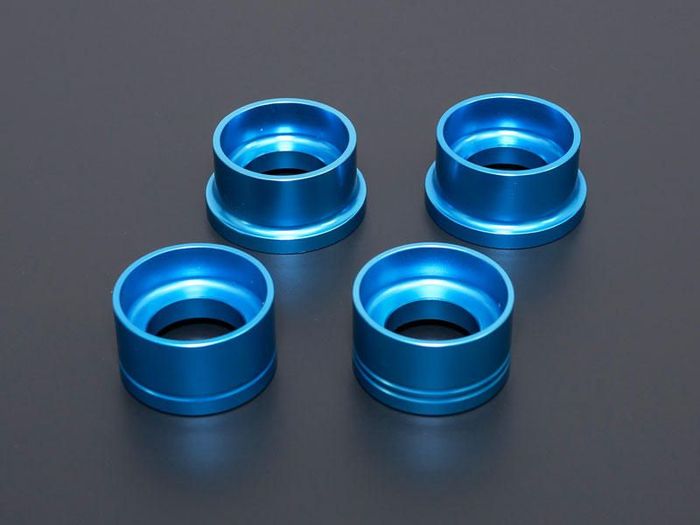

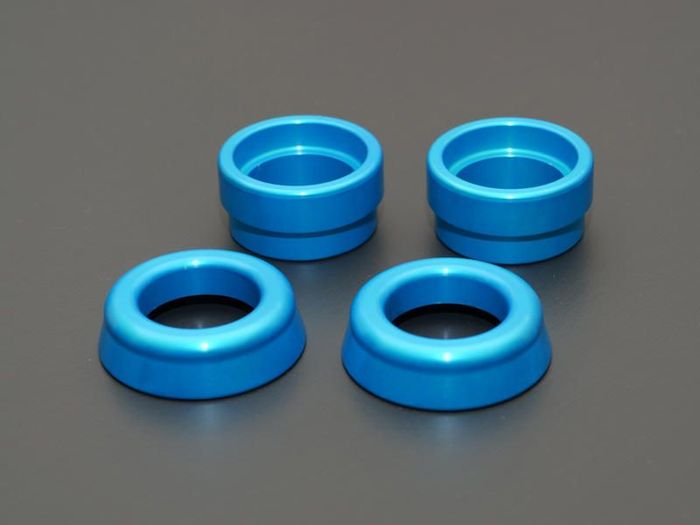

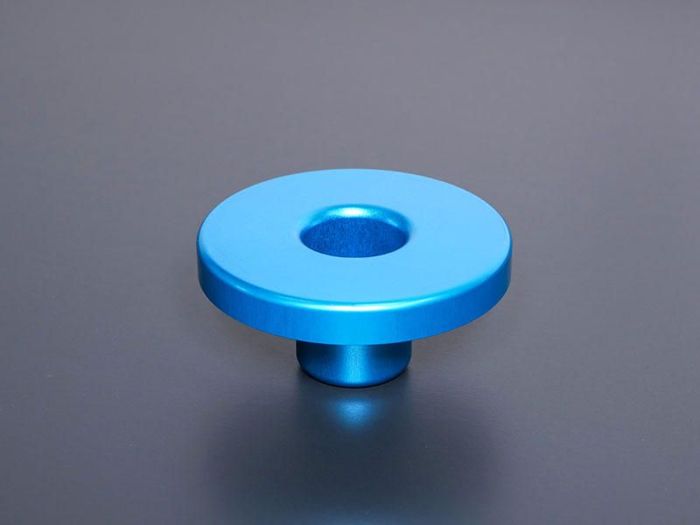

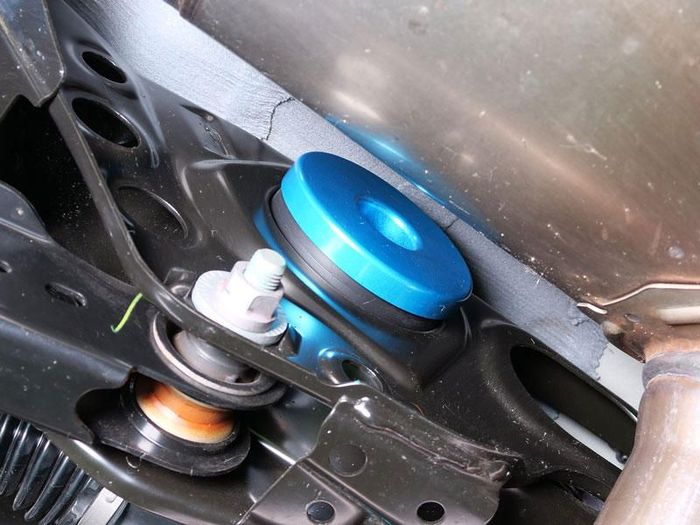

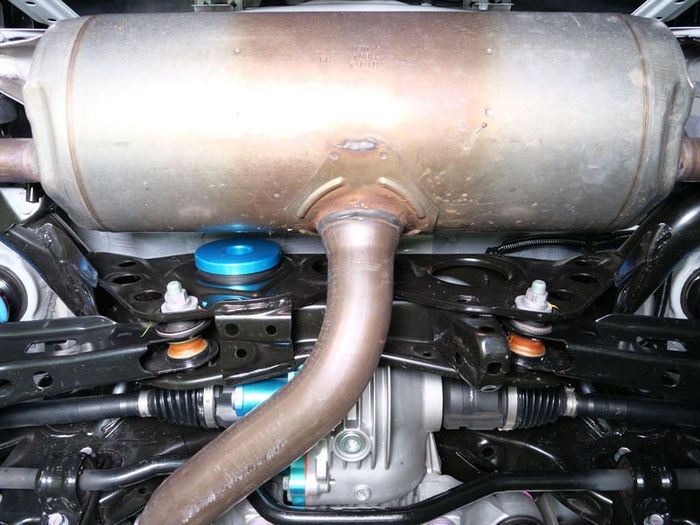

Rear Differential Mount Collar Set
- Billet Aluminum Rear Differential Mount Collar Set (Front Side)
# 1C7 928 A- JAN:
4996338025401 - MSRP: $135.00 Set
- Bolt-on / Add-on Type
- Use with OE Rubber Bushings as set
- Approx. 0.5 hrs. Installation
- Billet Aluminum Rear Differential Mount Collar (Side) - QTY 1 pc.
# 1C7 928 B- JAN:
4996338025432 - MSRP: $94.00
- Bolt-on / Add-on Type
- Approx. 1.5 hrs. Installation
Clutch Set - Copper or Metal (for 6MT Model)
- Clutch Set (Cover & Disc - Copper)
# 1C7 022 F- JAN:
4996338085689 - MSRP: $960.00 Set
***Direct OE Replacement Type - 240mm OD
Replacement Disc: Part No. 00C 022 R1C7
MSRP $350.00
- Clutch Set (Cover & Disc - Metal)
# 1C7 022 G- JAN:
4996338085696 - MSRP: $998.00
***Direct OE Replacement Type - 240mm OD
Replacement Disc: Part No. 00C 022 C1C7T
MSRP $380.00
- Rear Cross Member Collar Set
# 1C7-927-A- JAN:
4996338025425 - MSRP: $240.00 Set
- Bolt-on
- Install between Body and Rear Cross Member
[Interior/Exterior Accessory Parts]
Tow Hook - Front / Rear

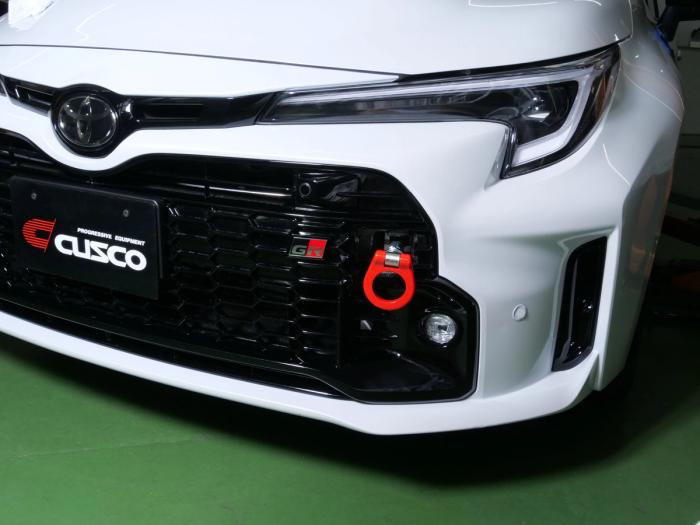

- Front Swivel Type Tow Hook
# 1C7 017 F- JAN:
4996338112224 - MSRP: $180.00 each
- Rear Swivel Type Tow Hook
# 1H1 017 R- JAN:
4996338117854 - MSRP: $180.00 each
- Bolt-on
- Require to modify OE Tow Hook Cover
Shift Knob
- Shift Knob
# 1C7 760 BA- JAN:
4996338002976 - MSRP: $52.00 each
- Direct OE Replacement
- Thread Size: M12 x 1.25mm
- Material: Duracon Black
- Size: 44mm OD

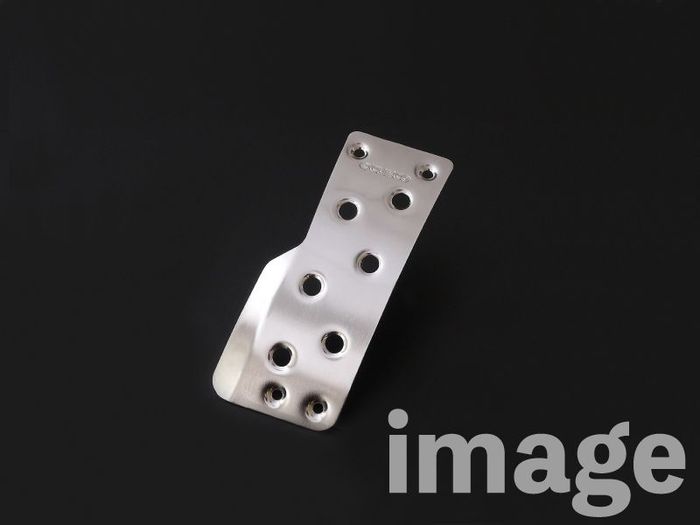

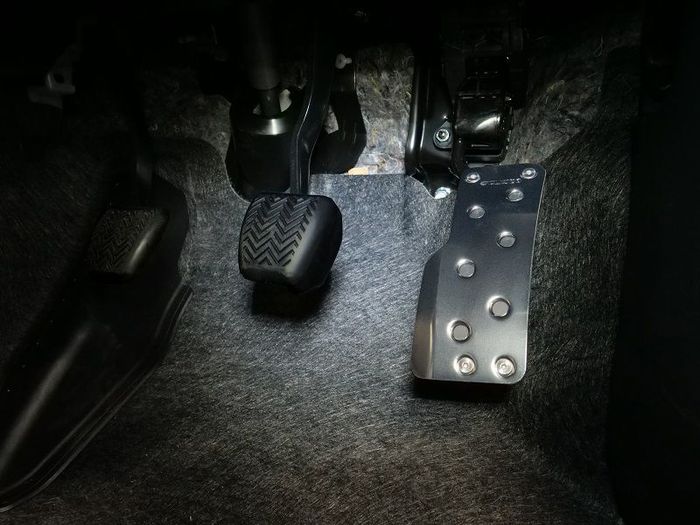

Wide Accel Pedal Attachment
- Wide Accel Pedal Attachment Plate Kit
# 1C7 766 A- JAN:
4996338112248 - MSRP: $80.00 each
- Bolt-on Installation with hardware (included)
- Material: Stainless Steel
- Attach to OE Pedal for easier "Heel & Toe" operation

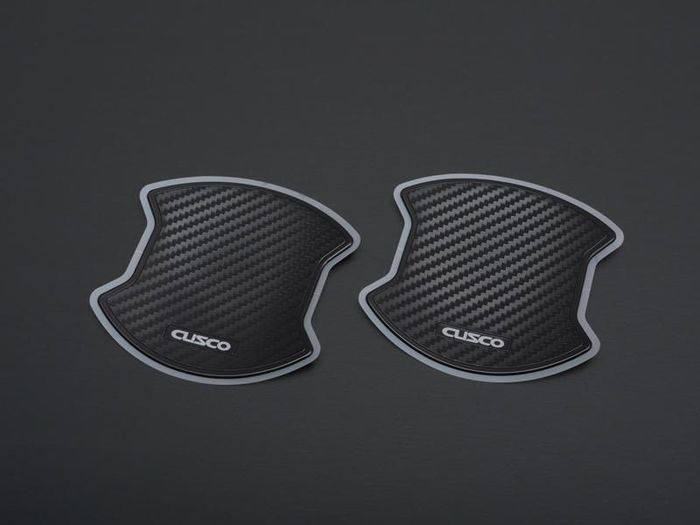

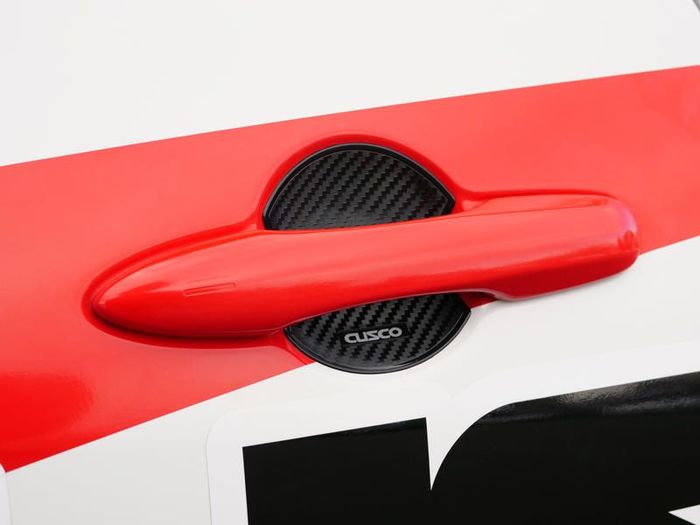

Carbon Look Door Handle Pocket Protector Set
- Carbon Look Door Handle Protector Set, Type-1 (Narrow)
# 00B 825 01- JAN:
4996338112255 - MSRP: $45.00
- Protect Door Handle Pocket from scratches by daily use.
- Easy Installation (Adhesive type)
- Dressing-up with "Carbon Look" Appearance with CUSCO Logo
- QTY: Set of 2

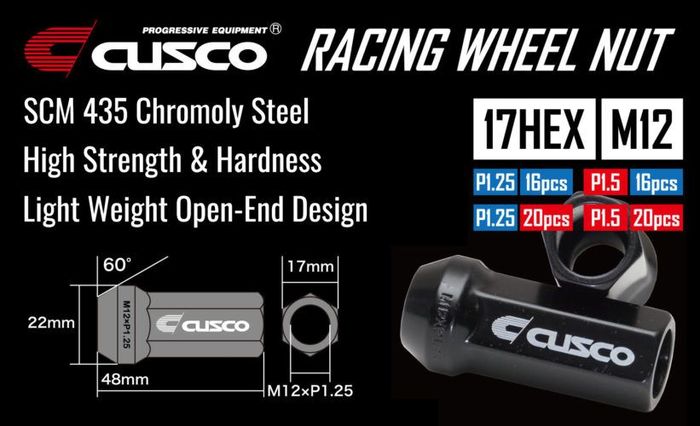

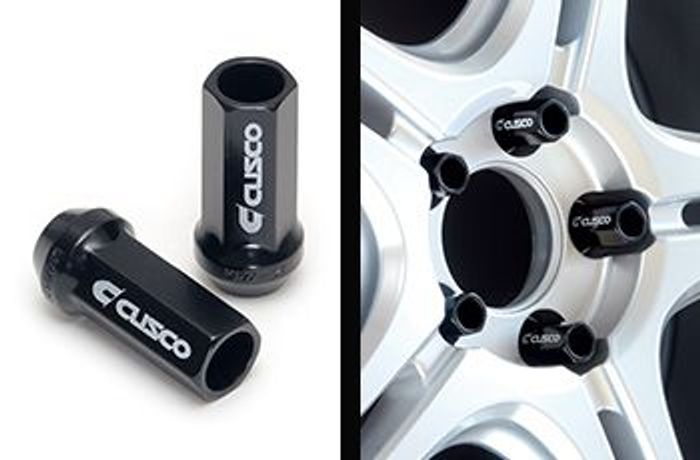

CUSCO Wheel Lug Nut Set

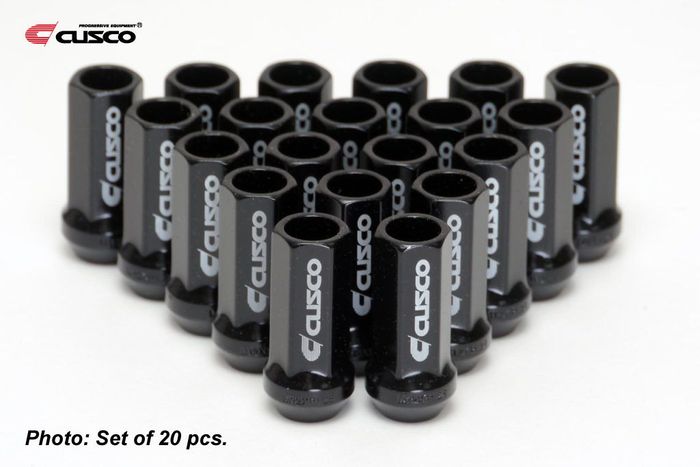

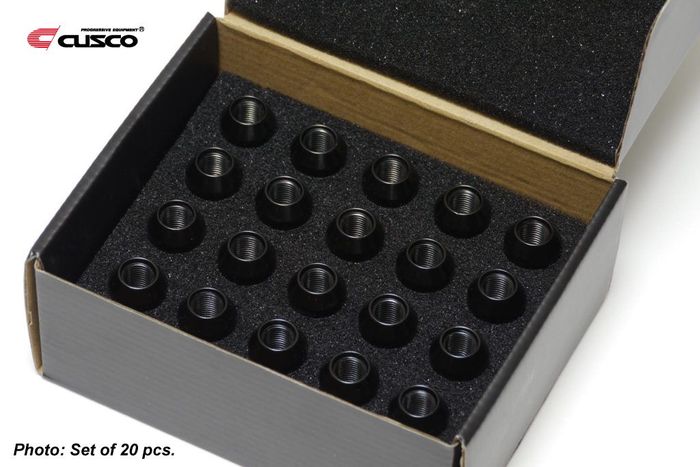

- CUSCO Long "Through" Lug Nut Set (M12 x 1.5mm, 20 pcs)
# 00B 738 1520B- JAN:
4996338109590 - MSRP: $165.00 Set
- Thread Size: M12 x 1.5mm
- 60 deg. Tapered
- 48mm Overall Length / 30mm Threaded Length
- Weight (pc): Light Weight 55 g / 1.94 oz
- Material: Chromoly SCM435
- 17mm Socket Wrench Size
- Set of 20 pcs.
