CUSCO Products List For 2019+ Toyota Corolla Hatchback (E210H)

Designed and developed from countless circuit testings, CUSCO high performance products are all proudly MADE IN JAPAN since 1977. Inspiration from track use, and daily use in mind, our engineers crafted the best for all demand.

***Updated All Parts catalog now available***

Corolla Hatchback All Parts Catalog

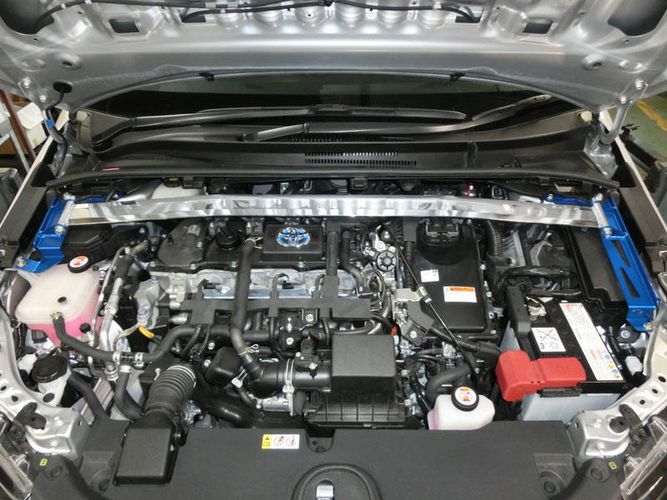

[Strut Tower Brace Front]

CUSCO STRUT TOWER Brace is designed exclusively for 2019+ Toyota Corolla to increase chassis strength, eliminate body flex, vibrations for optimum handling. Beautifully crafted and anodized in CUSCO Blue for lighting up the engine bay. It uses existing mounting location for "bolt-on".

Material: High Strength Steel Bracket + Aluminum Oval Wide Shape Bar - Type III

Product Number

1A9 540 A

MSRP

$200.00

JAN Code

4996338039286

• Installation Time: 0.5 hours

*** This part can NOT be fit to '16+ 4th Gen Prius & '17 Toyota C-HR models ***

[Power Brace]

CUSCO POWER BRACE is designed to increase chassis strength, eliminate body flex, vibrations in order to optimize the vehicle's handling. Beautifully crafted and anodized in CUSCO Blue for lighting up the engine bay. It uses existing mounting location for "bolt-on" and ensure enough ground clearance.

[Power Brace - Under Chassis Braces Front]

Material: High Strength Steel Bar (STKM) t=1.6mm

Product Number

1A1 492 F

MSRP

$307.00

JAN Code

4996338048516

• Installation Time: 1.0 hours

*** This part can be fit to '16+ 4th Gen Prius & '17 Toyota C-HR models ***

[Power Brace - Under Chassis Braces Center]

Material: High Strength Steel Bar (STKM) t=1.6mm

Product Number

1A1 492 C

MSRP

$334.00

JAN Code

4996338048523

• Installation Time: 1.0 hours

*** This part can be fit to '16+ 4th Gen Prius & '17+ Toyota C-HR models ***

[Power Brace - Under Chassis Braces Rear]

Material: High Strength Steel Bar (STKM) t=1.6mm

Product Number

1A9 492 R (1A7 492 R for C HR only)

MSRP

$187.00

JAN Code

4996338110084

• Installation Time: 0.5 hours
• Part Number: 1A1-492-R has been superseded/updated to 1A9-492-R.

*** This part can be fit to '16+ 4th Gen Prius ***

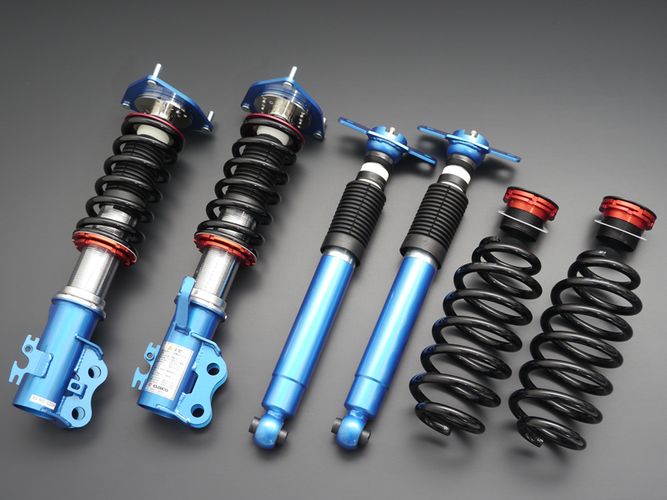

[Coilover Kit]

[Street Zero]

Product Number

1A1 62P CBF

MSRP

$1,220.00

JAN Code

4996338076168

• Front: Fix Damper Rate - Street spec / Rear: 14-way Adjustable (Dial)
• Full threaded front shock cartridge for adjusting ride height. (Not Pre-load Ride Height type)
• Spring Rate:
  • Front 5kgf/mm (Optional 6kgf/mm spring is available on order)
  • Rear 4.5kgf/mm
• Default Low-Down Amount:
  • Front -25mm (Adjustable Range -30mm to -5mm)
  • Rear -30mm (Adjustable Range -40mm to -15mm)
• Upper Mounts: Not included b/ Re-use Factory Upper Mounts
• Overhaul: Not available - Replacement shock cartridge are available.

*** This part can be fit to '16+ 4th Gen Prius ***

[Street Zero-A] - Updated 8-20-2020

Now we are offering two different types of Street Zero-A Coilover Kit.

[Front Camber Adjustable Model]

Product Number

1A9 61N CN

MSRP

$1,600.00

JAN Code

4996338111784

• Front Shock Absorber: 40-way Adjustable Twin-Tube
• Rear Shock Absorber: 40-way Adjustable Twin-Tube
• Full threaded front shock cartridge for adjusting ride height. (Not Spring Pre-load Ride Height adjustable type)
• Spring Rate:
  • Front 5kgf/mm (ID=73mm, L=200mm, Optional 6kgf/mm or 7kgf/mm springs are available on order)
  • Rear 4.5kgf/mm (Exclusive Design - Optional Spring rate is not available)
• Default Low-Down Amount:
  • Front -25mm (Adjustable Range -30mm to -5mm)
  • Rear -30mm (Adjustable Range -40mm to -15mm)
• Upper Mounts:
  • Front: Billet Aluminum Plate with Pillowball Camber Adjustable.
  • Rear: Steel Plate with HD Rubber
• Overhaul: Available- Optional e-Con2 Electric Damper Controller is NOT available.

[Front - "e-Con2 Controller" compatible Model]

Product Number

1A1 62N CN

MSRP

$1,600.00

JAN Code

4996338076205

• Front Shock Absorber: 40-way Adjustable Twin-Tube
• Rear Shock Absorber: 40-way Adjustable Twin-Tube
• Full threaded front shock cartridge for adjusting ride height. (Not Spring Pre-load Ride Height adjustable type)
• Spring Rate:
  • Front 5kgf/mm (Optional 6kgf/mm springs are available on order)
  • Rear 4.5kgf/mm (FWD) / 4.8kgf/mm (AWD/Prime) (Exclusive Design - Optional Spring rate is not available)
• Default Low-Down Amount:
  • Front -30mm(FWD)/-35mm(AWD/Prime) (Adjustable Range -50mm to -5mm)
  • Rear -30mm (Adjustable Range -40mm to 0mm)
• Upper Mounts:
  • Front: HD Rubber Bushing with Billet Aluminum Plate - Non-Camber Adjustable
  • Rear: Steel Plate with HD Rubber
• Overhaul: Available
• Optional e-Con2 Electric Damper Controller is available. Sold separately. [Part Number]: 00B-60J-1214 ($475.00 MSRP)

*** This part can be fit to '16+ 4th Gen Prius& '20+ Corolla Sedan models ***

[Sway Bars]

• It helps to reduce the vehicle body roll during cornering.
• Additional benefits includes stability at high speed driving, install both front and rear for optimum performance.

[Front]

Material: High Strength Steel

Product Number

1A7 311 A28

MSRP

$374.00

JAN Code

4996338062369

• Note : CUSCO OD=28mm solid. (131% increase) Re-use OEM bushings and brackets.
• Installation Time: 2.5 hours (Require to drop front sub-frame off approx. 2 inch to install)

*** This part can be fit to '17+ Toyota C-HR models ***

[Rear]

Material: High Strength Steel

Product Number

1A7 311 B26

MSRP

$374.00

JAN Code

4996338062369

• Note : CUSCO OD=26mm solid. (125% increase) Bushings and brackets included.
• Installation Time: 1.0 hours (Direct OE replacement)

*** This part can be fit to '17+ Toyota C-HR models ***

[Adjustable Rear Upper Arm Set]

• It allows to set proper camber angle by having turnbuckle adjustment.
• Additional benefits includes stability at high speed driving, even tire wear, and optimum brake performance.

[Rear]

Material : High Strength Steel

Product Number

1A1 474 L

MSRP

$614.00

JAN Code

4996338024329

• Note : Rear camber adjustment range from +15mm to -8mm.
• Installation Time: 1.0 hours

*** This part can be fit to '16+ 4th Gen Prius & '17+ Toyota C-HR models ***

[Folding Tow Hook]

This item is easily fold (flat, up, and down), made of high strength steel, and painted in red. It bolts-on to OE tow hook mounts

Material: High Strength Steel

Product Number

1A7 017 F

MSRP

$131.00

• Note : Utilize OE location. (Front & Rear)
• Installation Time: N/A

*** This part can be fit to '17+ Toyota C-HR models ***

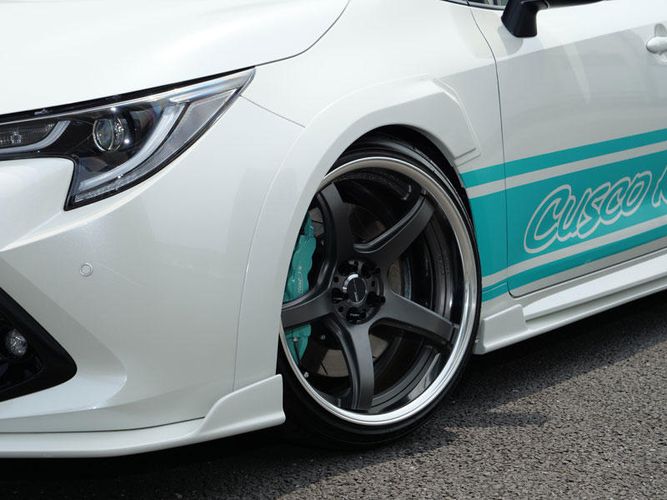

[Aero Body Kit]

[Front Lip Spoiler]

Material: FRP (Fiberglass Reinforced Plastic), Un-painted / White primer

Product Number

1A9 820 F

MSRP

$450.00

JAN Code

4996338112040

• Note : Can be fit with OE front bumper only. Re-use OE Tapping Screws (x10). Recommend to use 3M double-sided tape or Glue (Not included)
• Installation Time: 1.0 Hour (estimated - paint work is not included)

***Special Made-to-Order from Japan - 9-10 weeks delivery time

[Side Skirts]

Material: FRP (Fiberglass Reinforced Plastic), Un-painted / White primer

Product Number

1A9 820 SS

MSRP

$560.00

JAN Code

4996338112057

• Note : Require to drill holes on OE Side Step, use supplied M6 Bolt & Nut to install (x5 each side). Recommend to use 3M double-sided tape or Glue (Not included)
• Installation Time: 2.0 Hour (estimated - paint work is not included)

***Special Made-to-Order from Japan - 9-10 weeks delivery time

[Rear Lip Spoiler]

Material: FRP (Fiberglass Reinforced Plastic), Un-painted / White primer

Product Number

1A9 820 R

MSRP

$480.00

JAN Code

4996338112064

• Note : Require to remove OE Rear Bumper to install by re-using OE Clips (x4 each side). Recommend to use 3M double-sided tape or Glue (Not included)
• Can be fit with OE Exhaust Muffler or Fujitsubo Exhaust Muffler (as shown in pictures)

Fujitsubo Authorized RM+c (Carbon Tips): Part # FGK250-22161, MSRP $1,450.00

• Installation Time: 2.0 Hour (estimated - paint work is not included)

***Special Made-to-Order from Japan - 9-10 weeks delivery time

[Rear Spoiler]

Material: FRP (Fiberglass Reinforced Plastic), Un-painted / White primer

Product Number

1A9 820 RW

MSRP

$450.00

JAN Code

4996338112071

• Note : Require to drill holes (x4) to install by using supplied M6 Bolts and Nuts with templete. Recommend to use 3M double-sided tape or Glue (Not included)
• Installation Time: 2.0 Hour (estimated - paint work is not included)

***Special Made-to-Order from Japan - 9-10 weeks delivery time

[Over Fender Set]

• Material : ABS Resin, Un-painted / Black finish, Set of 6 pcs.
• Specification: +9mm wider on each side, Total +18mm wider.

Textured Surface Finish

Product Number

1A9 820 OF

MSRP

$650.00

JAN Code

4996338112088

Smooth Surface Finish

Product Number

1A9 820 OF2

MSRP

$650.00

JAN Code

4996338112668

• Note: No Require to drill holes on Fenders to install by using OE Clips.
• Installation Time: 1.0 Hour (estimated - paint work is not included)

***Special Made-to-Order from Japan - 9-10 weeks delivery time
