2023+ Toyota GR Corolla (GZEA14H) - Cusco Parts Update (July 2023)

2023+ Toyota GR Corolla - Cusco Parts Update - July 2023

• Model Year: 2023+
• Chassis Code: GZEA14H
• Engine Code: G16E-GTS (1.6L 3-Cylinder Turbo)

[Suspension Parts]

- Coilover Kit

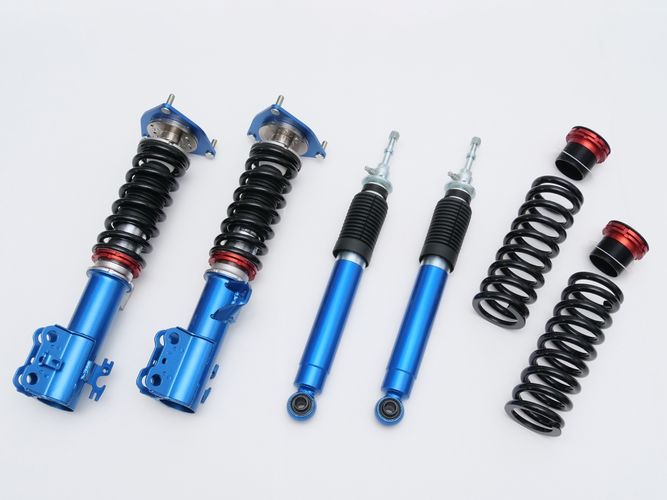

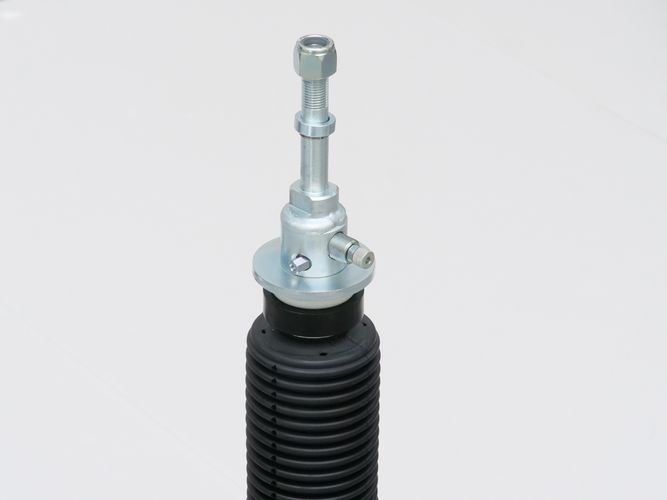

Street Zero-A Coilover Kit - Front: Pillowball Upper Mount / Rear: No Upper Mount

Product Number

1H1 61N CN

MSRP

$1,700.00

JAN Code

4996338113252

• Front / Rear: Twin-Tube 40-way Damper Adjustable
• Front: Full threaded shock body for ride height adjustment.
• Rear: Threaded Spring Perch for ride height adjustment
• Default Spring Rate:
  • Front 7kgf/mm (Optional 8kgf/mm & 9kgf/mm per request), ID=65mm, L=200mm
  • Rear 8kgf/mm (Optional 7kgf/mm & 9kgf/mm per request), ID=65mm, L=250mm
• Default Ride Height (compare to stock):
  • Front -15mm (Adjustable Range -20mm to 0mm)
  • Rear -15mm (Adjustable Range -30mm to 0mm)
• Upper Mount:
  • Front: Pillowball Adjustable Camber Plate
  • Rear: Not included - Utilize Factory Upper Mounts
• Overhaul: Available
• e-Con2 Remote Controller Compatibility: No

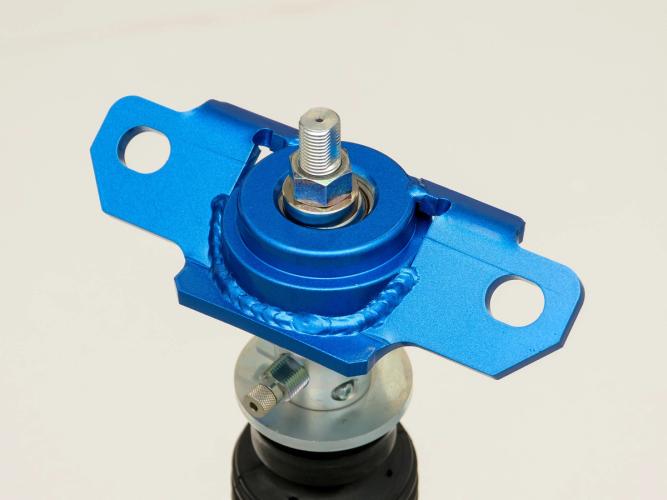

Street Zero-A - Rear Pillowball Upper Mount Type

Product Number

1H1 61N CP

MSRP

$1,900.00

JAN Code

4996338113269

• Front / Rear: Twin-Tube 40-way Damper Adjustable
• Front: Full threaded shock body for ride height adjustment.
• Rear: Threaded Spring Perch for ride height adjustment
• Default Spring Rate:
  • Front 7kgf/mm (Optional 8kgf/mm & 9kgf/mm per request), ID=65mm, L=200mm
  • Rear 8kgf/mm (Optional 7kgf/mm & 9kgf/mm per request), ID=65mm, L=250mm
• Default Ride Height (compare to stock):
  • Front -15mm (Adjustable Range -20mm to 0mm)
  • Rear -15mm (Adjustable Range -30mm to 0mm)
• Upper Mount:
  • Front: Pillowball Adjustable Camber Plate
  • Rear: Pillowball Non-Adjustable Camber Plate
• Overhaul: Available
• e-Con2 Remote Controller Compatibility: No

***Mono-Tube Damper - Sport-S/R/X Coilover Kit will come SOON!

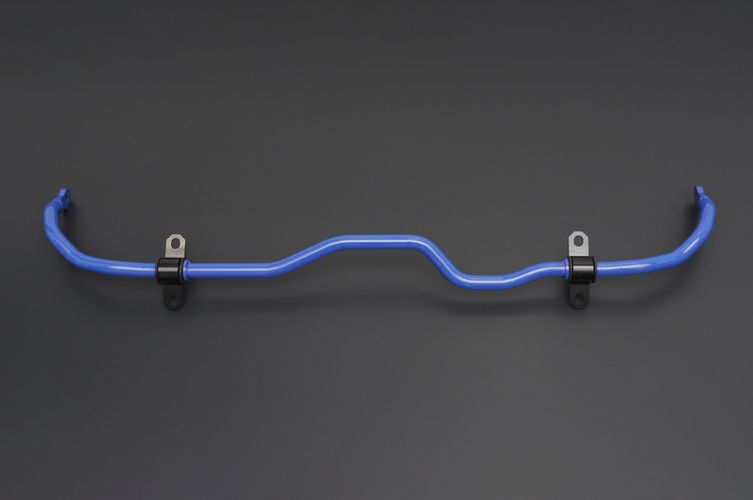

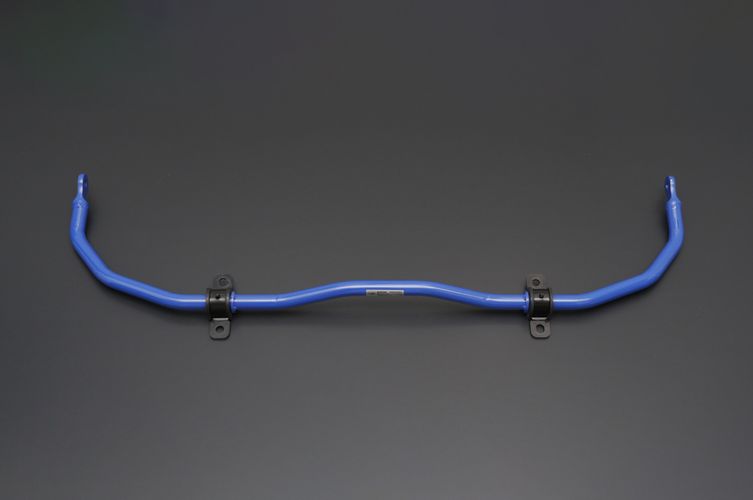

- Front Sway Bar Kit - 1H1 311 A28 (New for GR Corolla Model)

Front Sway Bar Kit (28mm OD)

Product Number

1H1 311 A28

MSRP

$410.00

JAN Code

4996338062765

• It helps to reduce the vehicle body roll during cornering.
• Additional benefits include stability at high-speed driving, install both front and rear for optimum performance.
• Bar Size: 28mm OD, Solid Steel
• ***Bushings & Brackets are NOT included - Re-use OE Bushings & Brackets*** (Image is NOT actual product)

- Rear Sway Bar Kit - 1H1 311 B26 (New for GR Corolla Model)

Rear Sway Bar Kit (26mm OD)

Product Number

1H1 311 B26

MSRP

$400.00

JAN Code

4996338062772

• It helps to reduce the vehicle body roll during cornering.
• Additional benefits include stability at high-speed driving, install both front and rear for optimum performance.
• Bar Size: 26mm OD, Solid Steel

- Suspension Arms/Links

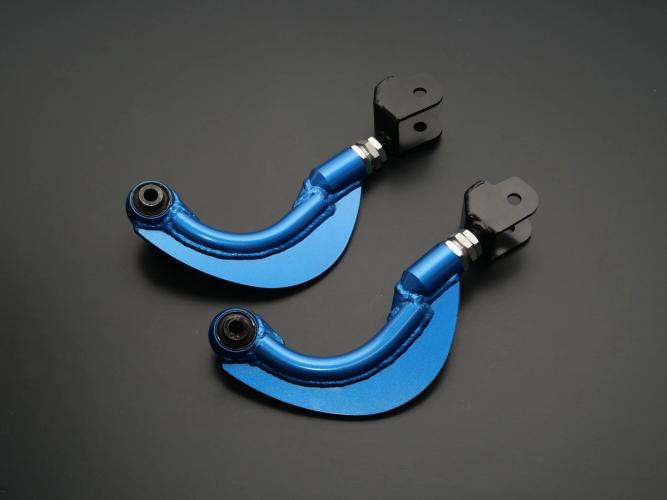

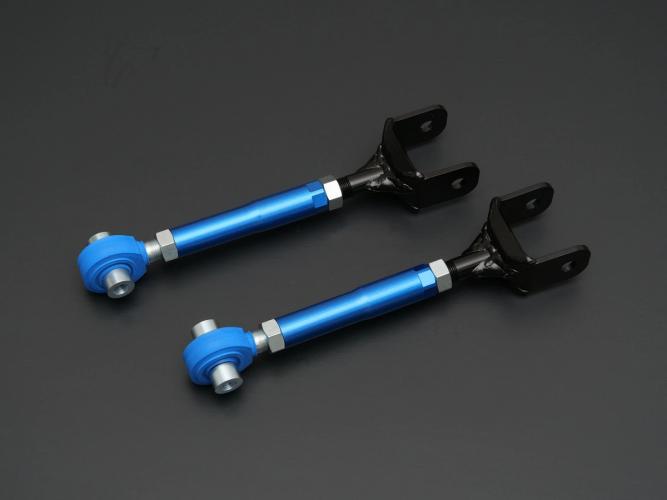

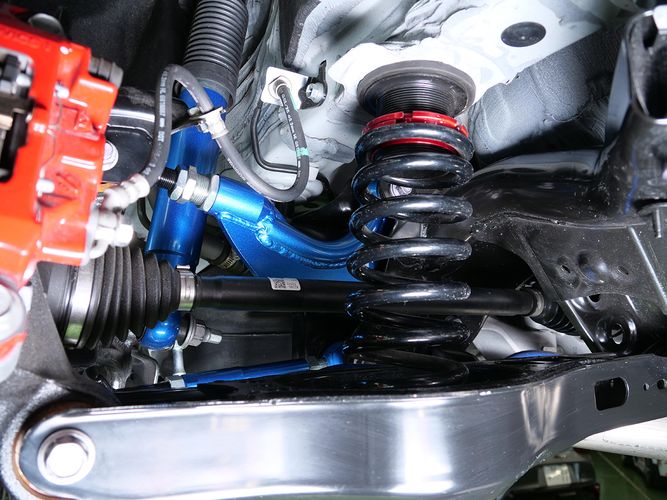

Rear Camber Adjustable Upper Arm Set

Product Number

1C7 474 L

MSRP

$614.00

JAN Code

4996338024923

Rear Toe Adjustable Lower Arm Set (Front side)

Product Number

1C7 474 G

MSRP

$467.00

JAN Code

4996338024930

Front Adjustable Sway Bar End-Link Set (Universal)

Product Number

00B 318 A34

MSRP

$198.00

• Bolt-on / Direct OE Replacement Type
• Ball Joint - Thread Size: M10 x 1.25mm
• Adjusting Range: 345 - 375 mm
• Rod Length: 275mm
• Set of 2 pcs.

Rear Adjustable Sway Bar End-Link Set

Product Number

1C7 317 A

MSRP

$250.00

JAN Code

4996338062680

• Bolt-on / Direct OE Replacement Type
• Ball Joint
• Adjusting Range: 89 - 103 mm (OEM L=90mm)
• Set of 2 pcs.

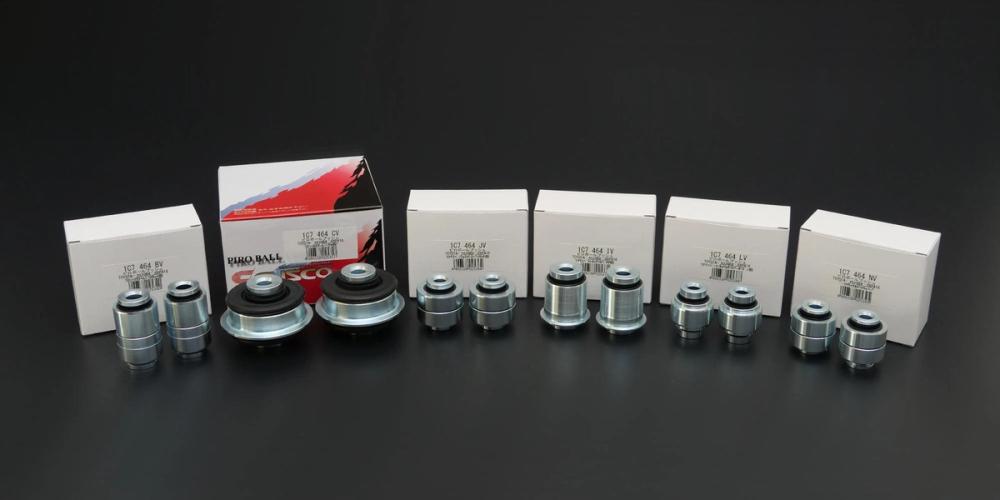

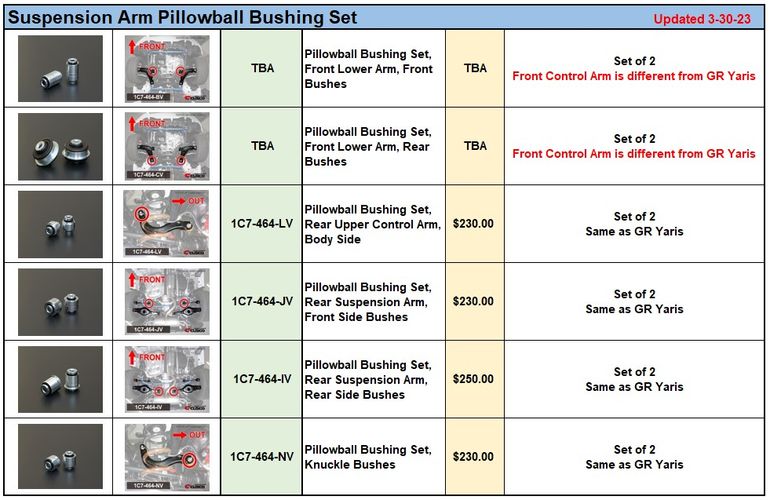

- Front & Rear Suspension Arms/Links Pillowball Bushing Set (See below chart - Updated 3-30-2023)

[Chassis & Body Braces]

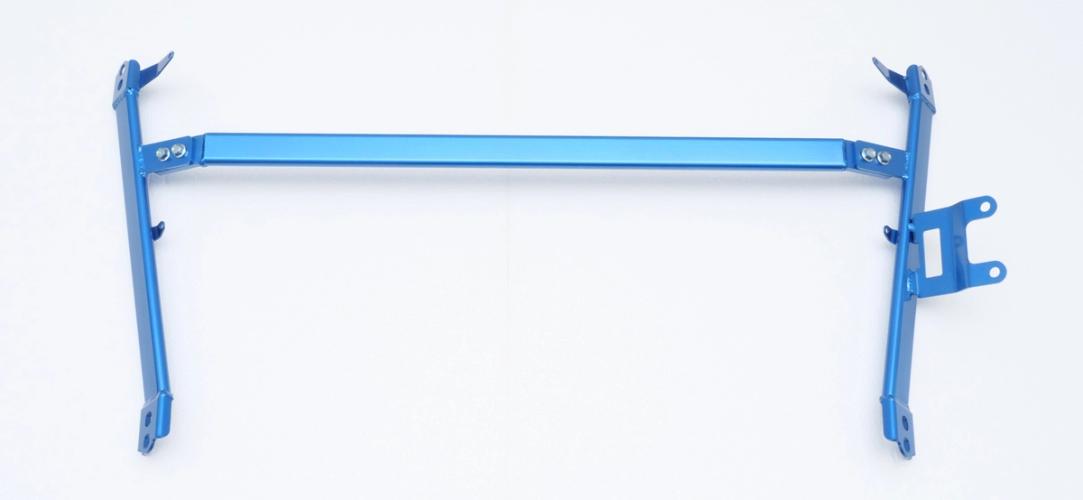

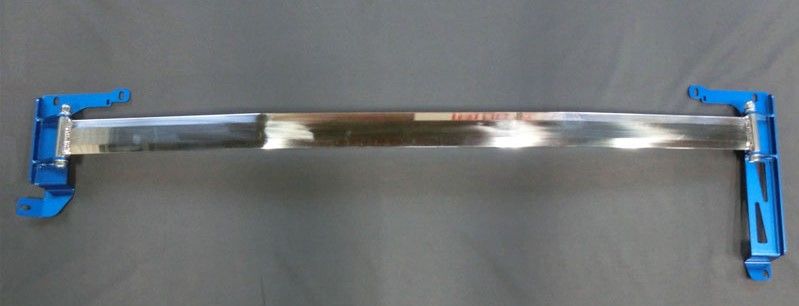

- Front Strut Tower Brace - Part #: 1A9 540 A

Material : High Strength Steel Side Brackets + Light Weight Aluminum Oval Shape (Type-OS) Wide Bar - Type 3

Product Number

1A9 540 A

MSRP

$200.00

JAN Code

4996338039286

• Type-OS (Flat Wide Oval Shape Bar)
• Bolt-on

***Bolt-on (Installation Time 0.5-1.0 hrs.)

- Rear Strut Tower Brace - Prototype/TBA

- Front Brace - 1H1 492 F (Changed from 1A1 492 F - New for GR Corolla Model)

Front Member Brace

Product Number

1H1 492 F

MSRP

$347.00

JAN Code

4996338110466

- Center Brace - 1A1 492 C

Center Brace

Product Number

1A1 492 C

MSRP

$334.00

JAN Code

4996338048523

- Rear Brace - 1H1 492 R (Changed from 1A9 492 R - New for GR Corolla Model)

Rear Power Brace

Product Number

1H1 492 R

MSRP

$220.00

JAN Code

4996338110473

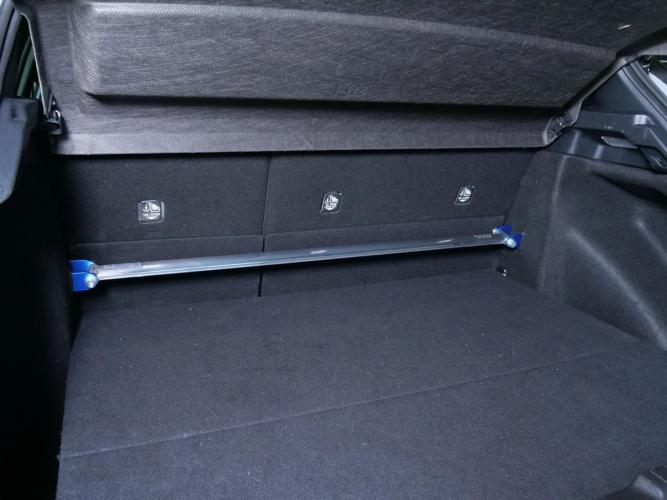

- Rear End Brace - 1H1 492 RE (New for GR Corolla Model)

Rear End Brace

Product Number

1H1 492 RE

MSRP

$187.00

JAN Code

4996338110480

- Seat Rail Plus for Safety Harness - 1H1 492 SP - New for GR Corolla Model

Seat Rail Plus (Set of 2)

Product Number

1H1 492 SP

MSRP

$254.00

JAN Code

4996338110497

***Overall Installation Image***

[Door Stabilizer Set - New Release in July 2023]

CUSCO universal Door Stabilizer is designed to increase chassis rigidity by filling a door and body gap. By eliminating excess gap between a door and body, it improves steering response and chassis rigidity. For example, when changing a lane on a freeway.

Door Stabilizer Set

Product Number

00B 066 A

MSRP

$170.00

JAN Code

4996338117823

Price: US$170.00 per pair (Total of 2)

***Require to order x2 sets for all 4-Door Models (Front Doors & Rear Doors)

***Please click this link for more details.

[Engine Parts]

Billet Aluminum Engine Pitching Stopper

Product Number

1C7 911 PS

MSRP

$240.00

JAN Code

4996338025418

• Bolt-on / Direct OE Replacement
• Material: Steel construction with HD Rubber Bushing
• Reducing engine pitch movement
• Improving gear shift feel

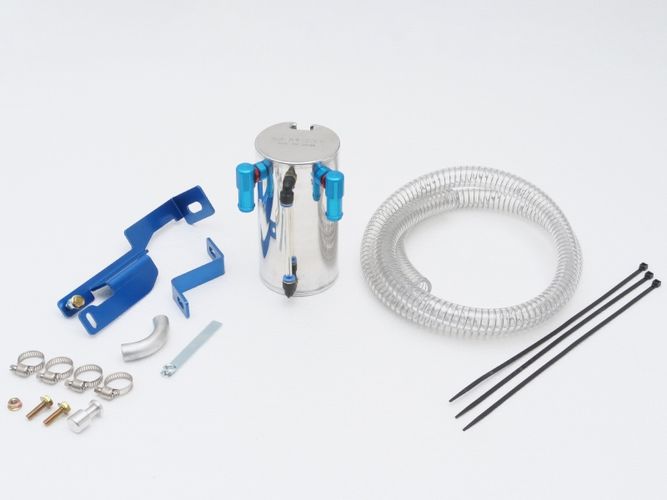

- Oil Catch Tank - 1H1 009 A

Oil Catch Tank - Bolt on

Product Number

1H1 009 A

MSRP

$147.00

JAN Code

4996338040435

• Bolt-on Installaion
• Competition/Off-road use purpose only
• Oil Tank Capacity: 0.6L
• Clear Hose ID: 15mm

[Drivetrain Parts]

-Limited Slip Differential (LSD) - Front & Rear

[Front] - Type-RS/MZ: LSD-1C7-###

[Rear] - Type-RS/MZ: LSD-1C8-###

Billet Aluminum "High Capacity" Differential Cover (+250cc Oil Capacity)

Product Number

1C7 008 AS (Silver) / AL (Blue)

MSRP

$907.00

JAN Code

4996338108913 (AS) / 4996338108920 (AL)

• Bolt-on / Direct OE Replacement Type
• Material: Billet Aluminum +250cc Oil Capacity with Cooling Fins design
• Silver or Blue color available

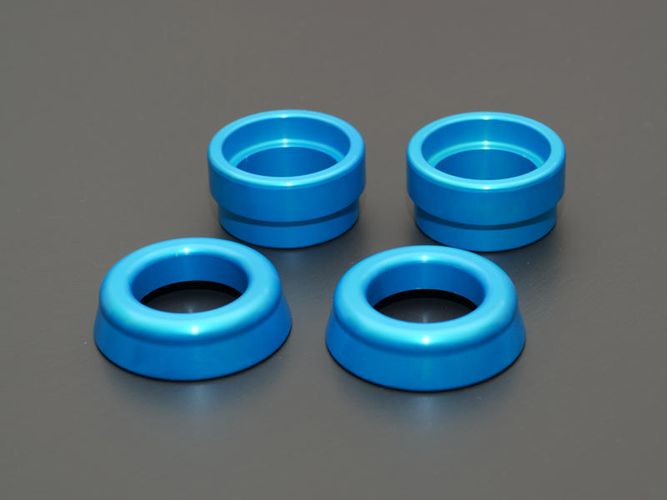

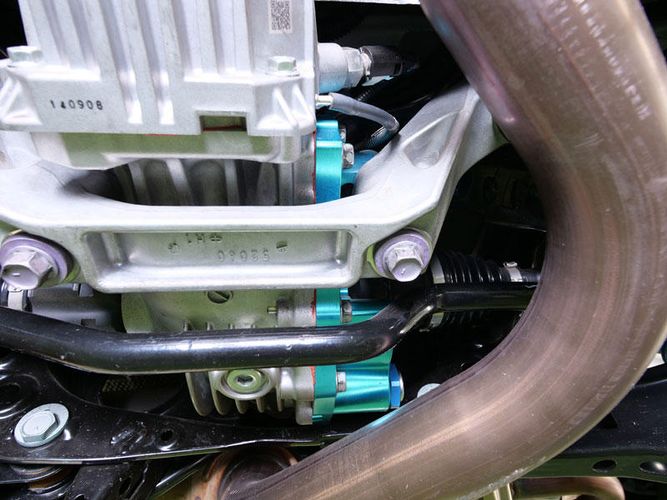

Billet Aluminum Rear Differential Mount Collar Set (Front Side)

Product Number

1C7 928 A

MSRP

$134.00

JAN Code

4996338025401

• Bolt-on / Add-on Type
• Use with OE Rubber Bushings
• Approx. 0.5 hrs. Installation

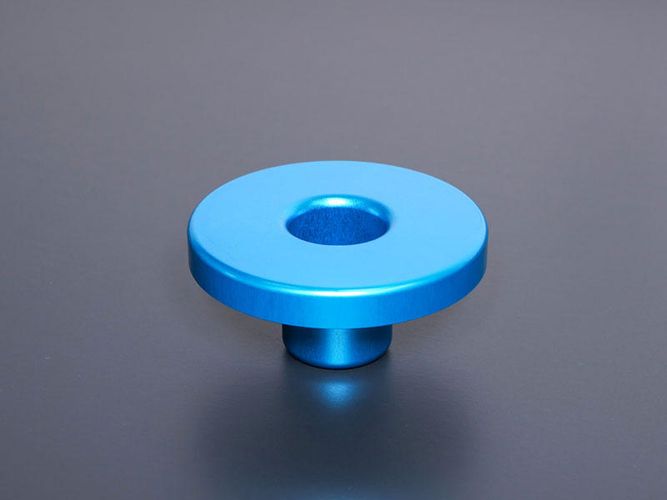

Billet Aluminum Rear Differential Mount Collar (Side) - QTY 1 pc.

Product Number

1C7 928 B

MSRP

$94.00

JAN Code

4996338025432

• Bolt-on / Add-on Type
• Approx. 1.5 hrs. Installation

- Clutch Set - Copper or Metal (for 6MT Model)

Clutch Set (Cover & Disc - Copper)

Product Number

1C7 022 F

MSRP

$720.00

JAN Code

4996338085689

***Direct OE Replacement Type - 240mm OD

- Replacement Disc: Part No. 00C 022 R1C7

MSRP $350.00

Clutch Set (Cover & Disc - Metal)

Product Number

1C7 022 G

MSRP

$750.00

JAN Code

4996338085696

***Direct OE Replacement Type - 240mm OD

- Replacement Disc: Part No. 00C 022 C1C7T

MSRP $380.00

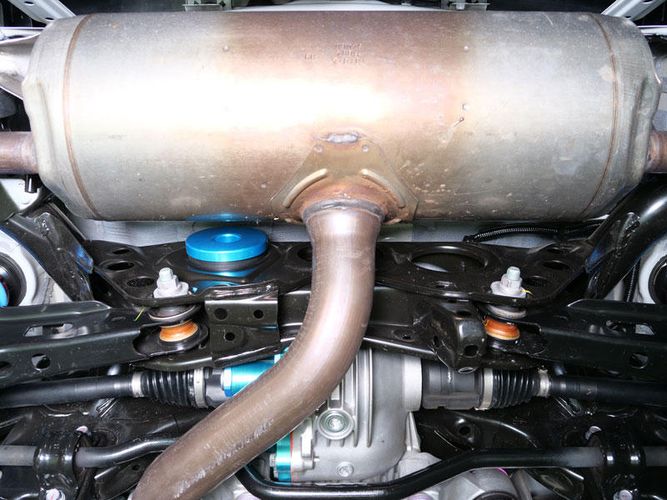

Rear Cross Member Collar Set

Product Number

1C7 927 A

MSRP

$227.00

JAN Code

4996338025425

• Bolt-on
• Install between Body and Rear Cross Member

[Interior/Exterior Accessory Parts]

Front Swivel Type Tow Hook

Product Number

1C7 017 F

MSRP

$131.00

JAN Code

4996338112224

• Bolt-on
• Require to modify OE Tow Hook Cover

Rear Swivel Type Tow Hook

Product Number

1H1 017 R

MSRP

$131.00

JAN Code

4996338117854

• Bolt-on
• Require to modify OE Tow Hook Cover

Shift Knob

Product Number

1C7 760 BA

MSRP

$51.00

JAN Code

4996338002976

• Direct OE Replacement
• Thread Size: M12 x 1.25mm
• Material: Duracon Black
• Size: 44mm OD

Wide Accel Pedal Attachment Plate

Product Number

1C7 766 A

MSRP

$51.00

JAN Code

4996338112248

• Bolt-on Installation with hardware (included)
• Material: Stainless Steel
• Attach to OE Pedal for easy "Heel & Toe" operation

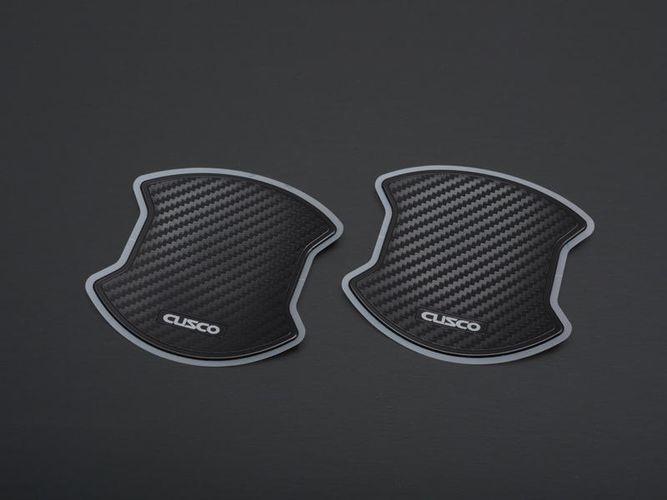

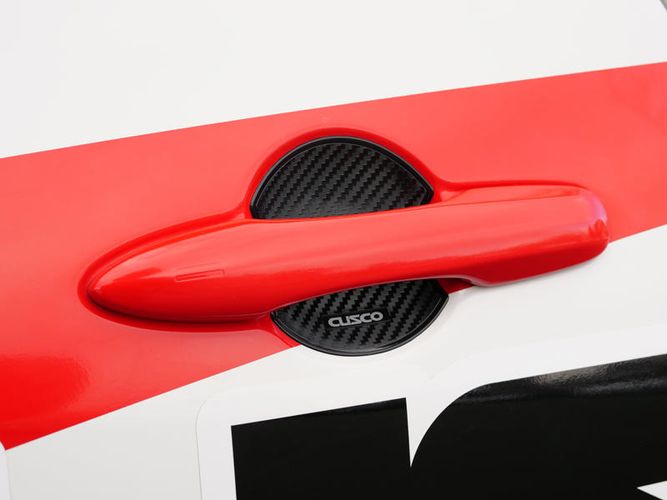

Carbon Look Door Handle Protector Set, Type-1 (Narrow)

Product Number

00B 825 01

MSRP

$44.00

JAN Code

4996338112255

• Protect Door Handle Pocket Scratches from daily use.
• Easy Installation (Adhesive type)
• Dressing-up with "Carbon Look" Appearance with CUSCO Logo
• QTY: Set of 2

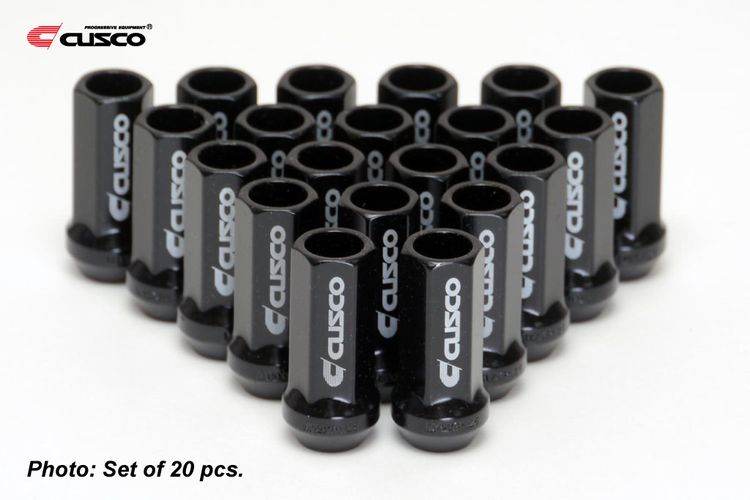

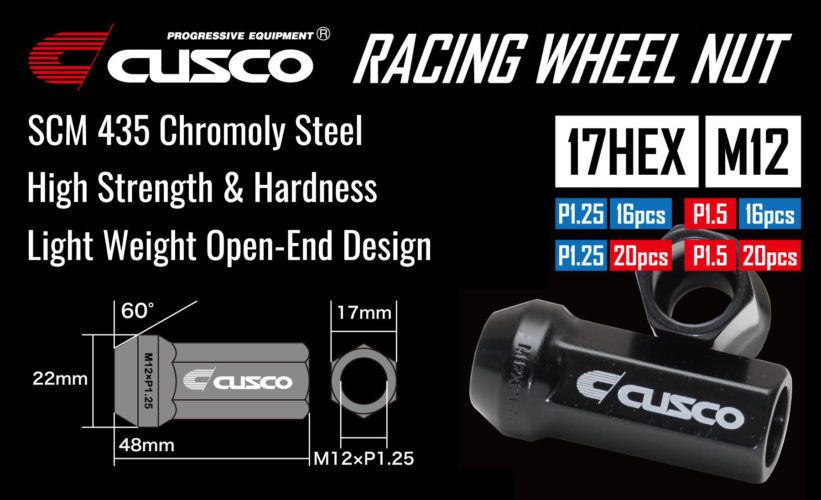

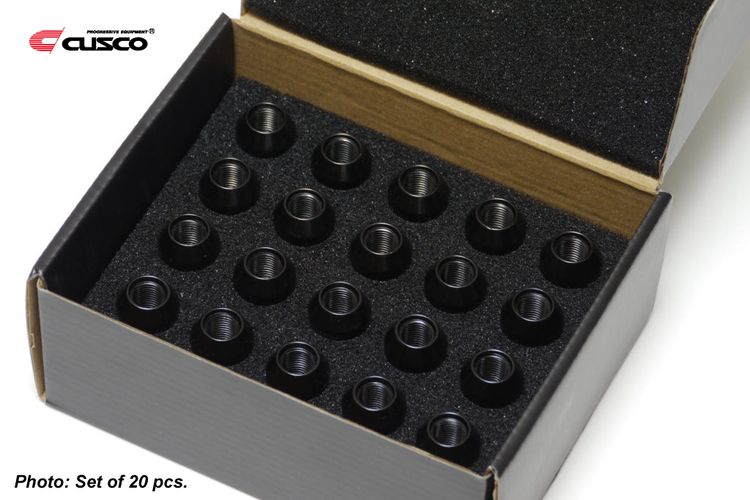

CUSCO Long "Through" Lug Nut Set (M12 x 1.5mm, 20 pcs)

Product Number

00B 738 1520B

MSRP

$120.00

JAN Code

4996338109590

• Thread Size: M12 x 1.5mm
• 60 deg. Tapered
• 48mm Overall Length / 30mm Threaded Length
• Weight (pc): Light Weight 55 g / 1.94 oz
• Material: Chromoly SCM435
• 17mm Socket Wrench Size
• Set of 20 pcs.
