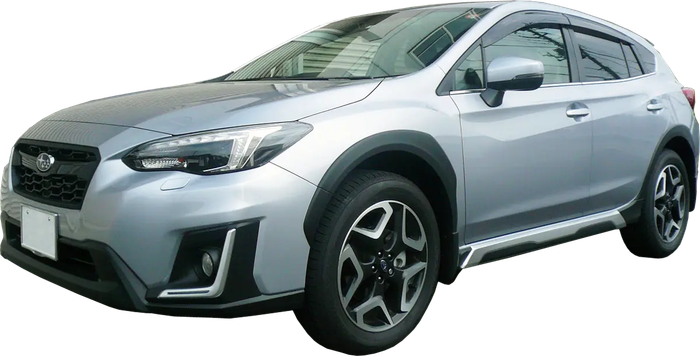

CUSCO New Products (Updated in Feb. 2024) - 2017+ Subaru Impreza & 2018+ Subaru Crosstrek/XV (GT7)

Feb 2, 2024(Last updated: Feb 4, 2024)

Subaru

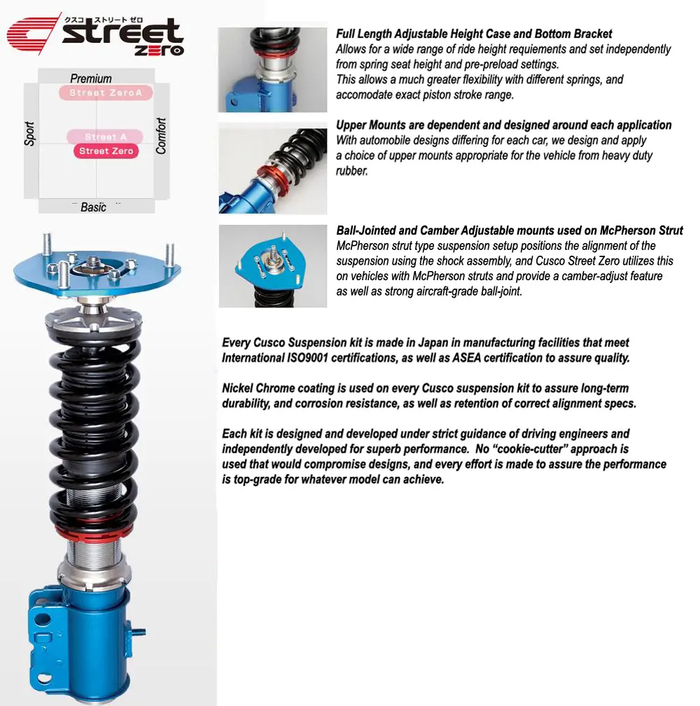

[Coilover Suspension Kit]

"Street Zero" Series

Fix Damper Rate - Street spec
Full threaded shock cartridge for adjusting ride height. (Not Pre-load Ride Height type)
Spring Rate:Impreza (Hatch/Sedan): Front 5kgf/mm, Rear 5kgf/mm Crosstrek: Front 5kgf/mm, Rear 5kgf/mm
Default Low-Down: Impreza: Front -25mm (AWD & FWD), Rear -25mm (AWD) / -20mm (FWD) Crosstrek: Front -35mm, Rear -35mm (AWD)
Upper Mounts: Re-use OE Upper Mounts with CUSCO Street Zero Series.
Overhaul: Not available - Replacement shock cartridge are available.
Designed for New Subaru Impreza/Crosstrek (XV) models exclusively.

[For 2018+ Crosstrek/XV]

Product Number: 699 61P CB
MSRP: $1,220.00
JAN Code: 4996338058690

Default Spring Rate: Front 5.0 kgf/mm (Optional spring rate is not available) /
Rear 5.0 kgf/mm (Optional spring rate is not available)
Default Low-Down: Front -35mm / Rear -35mm
Max Ride Height Adjustable Range: Front: -45 to 0mm / Rear -50 to 0mm

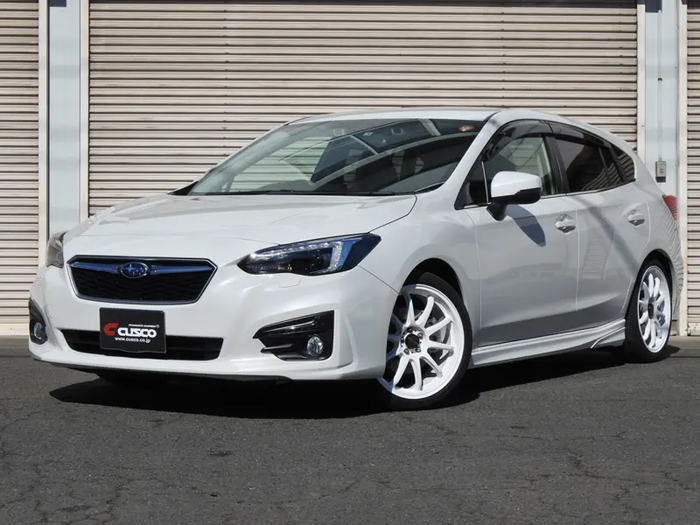

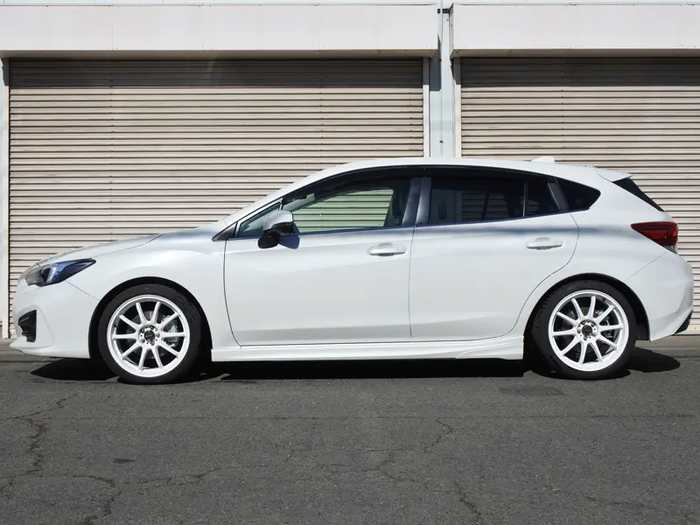

[For 2017+ Impreza Sedan/Hatch (2.0i Base/Premium/Sport/Limited)]

Product Number: 6A6 61P CB
MSRP: $1,220.00
JAN Code: 4996338058799

Default Spring Rate: Front 5.0 kgf/mm (Optional spring rate is not available) /
Rear 5.0 kgf/mm (Optional spring rate is not available)
Default Low-Down: Front -30mm / Rear -35mm
Max Ride Height Adjustable Range: Front: -35 to -5mm / Rear -35 to 0mm

[Sway Bar Set For 2018+ Crosstrek/XV Model only]

[Front]

Material : High Strength Solid Steel
Product Number: 6A8 311 A26
MSRP: $374.00
JAN Code: 4996338062499

Note : CUSCO OD=26mm solid. (+24% increase, OE 24mm Solid) with bushings
Installation Time: approx. 1.0 hour (Raise Engine 5mm to make more work space for removing OE Sway Bar and installing CUSCO Sway Bar)

[Rear]

Material : High Strength Solid Steel
Product Number: 6A8 311 B18
MSRP: $294.00
JAN Code: 4996338062505

Note : CUSCO OD=18 mm solid. (+56% increase, OE 16 mm Solid) with bushings
Installation Time: approx. 2.0 hours (Require to remove suspension arms to install CUSCO Rear Sway bar)

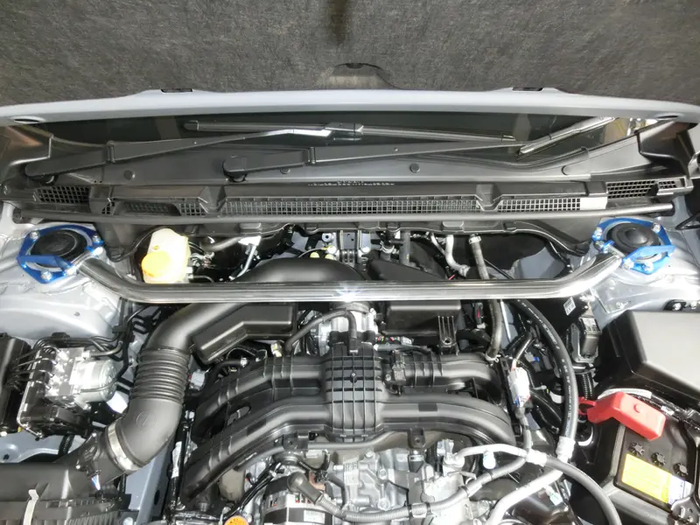

[Front Strut Tower Brace] - New Release in May 2021

Addition precision to handling under loads, and keeping uni-body structure pinned to reduce alignment changes, works best as a set with rear strut tower brace. Simple Bolt-On Installation (Approx. Labor Time 0.5 Hours)

Type-OS(I): Oval shape - Light Weight Aluminum Tubing Shaft
Reinforced Side Brackets - Steel with CUSCO Metallic Blue painted
Designed for New Subaru Impreza/Crosstrek (XV) models exclusively.

Product Number: 699 540 A
MSRP: $200.00
JAN Code: 4996338699091

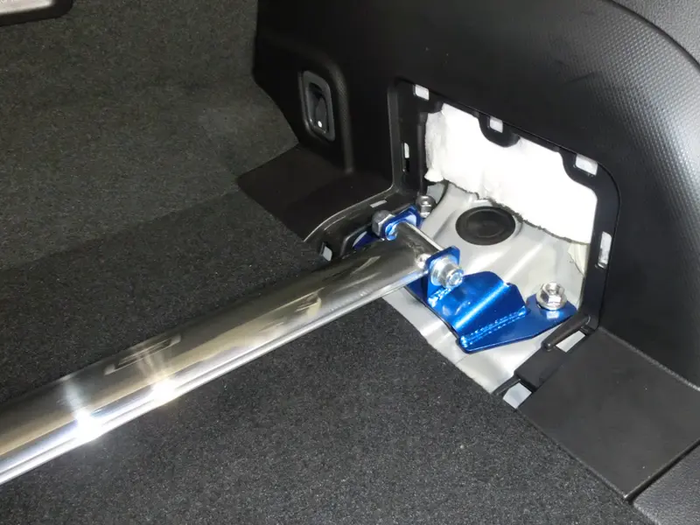

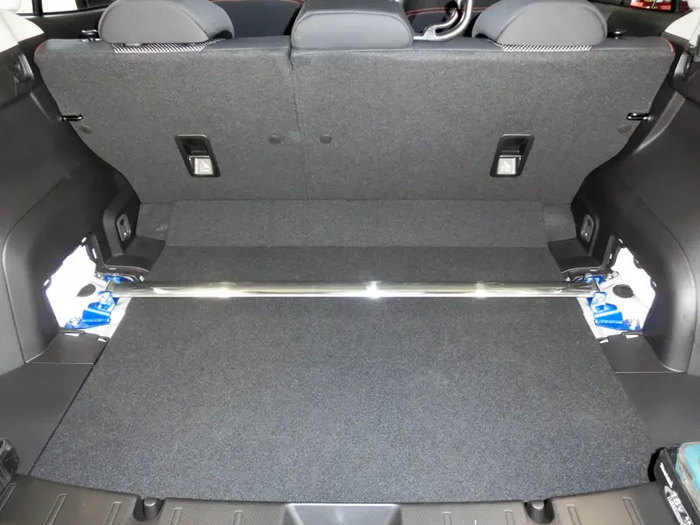

[Rear Strut Tower Brace]

Addition regidity to keep uni-body structure pinned to reduce rear suspension alignment changes, works best as a set with front strut tower brace. Simple Bolt-On Installation (Approx. Labor Time 0.5 Hours + Trimming Side Covers work 0.5-1.0 Hours if needed)

Type-OS(I): Oval shape - Light Weight Aluminum Tubing Straight Shaft
Reinforced Side Brackets - Steel with CUSCO Metallic Blue painted
Designed for New Subaru Impreza/Crosstrek (XV) models exclusively.

Product Number: 699 541 A
MSRP: $200.00
JAN Code: 4996338699107

[Power Brace - Front]

For Front Cross Member for Crosstrek Model only (Not confirm for Impreza Model)

Material : High Strength Steel
Product Number: 6A9 492 F
MSRP: $200.00
JAN Code: 4996338110374

Installation Time: approx. 0.5 hours

***Can be fit on 2019+ Subaru Forester (SK)***

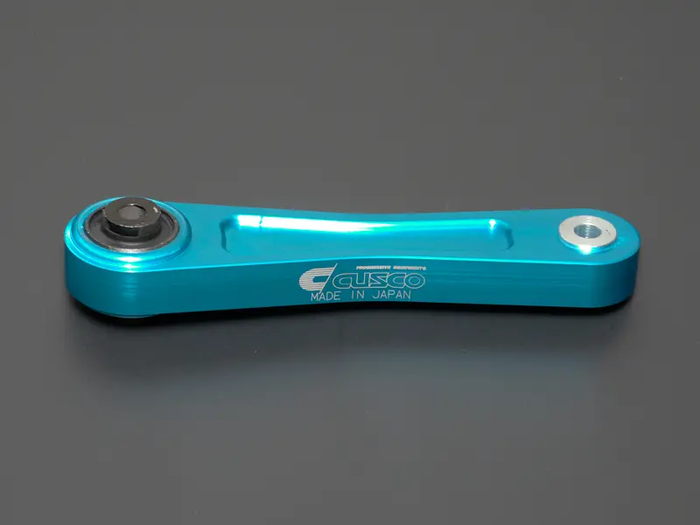

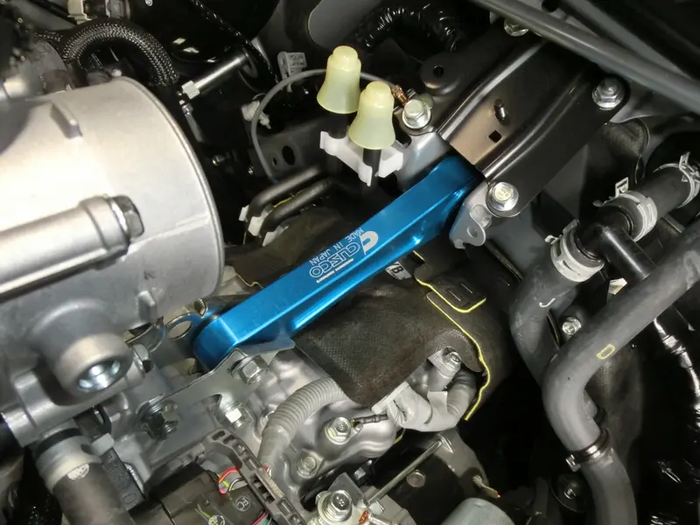

[Engine Pitch Stopper]

Responsive engine and transmission link performance under loads of acceleration and deceleration, needed to cope with high grip and faster shifting, as well as reducing driveline slap upon clutch meets.

***Fits For All Subaru Impreza / Crosstrek models / WRX / STi***

Direct OE Rubber Bushing Type Engine Pitch Stopper replacement - Bolt-On
Reducing Front/Rear Engine movements - (May increase Engine vibration instead)
Designed for Subaru EJ25/FA20F (Turbo)/FA24/FB20
Material - Light Weight Billet Aluminum - Anodized in Blue

Product Number: 6A1 911 PS
MSRP: $134.00
JAN Code: 4996338026989

****Compatible Subaru Genuine Part Number: 41040FE000 (41040AE000)****

Model	Year
Subaru Ascent	2019
Subaru Crosstrek (XV)	2013, 2014, 2015, 2016, 2017, 2018
Subaru Forester	2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Subaru Impreza	1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008,2009, 2010, 2011,2012, 2013, 2014, 2015, 2016
Subaru Impreza WRX STI	2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013,2014, 2015, 2016,2017, 2018
Subaru Impreza WRX	2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011,2012, 2013, 2014,2015, 2016, 2017, 2018

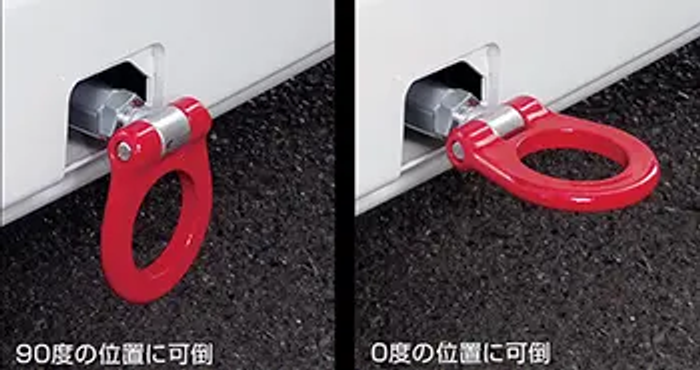

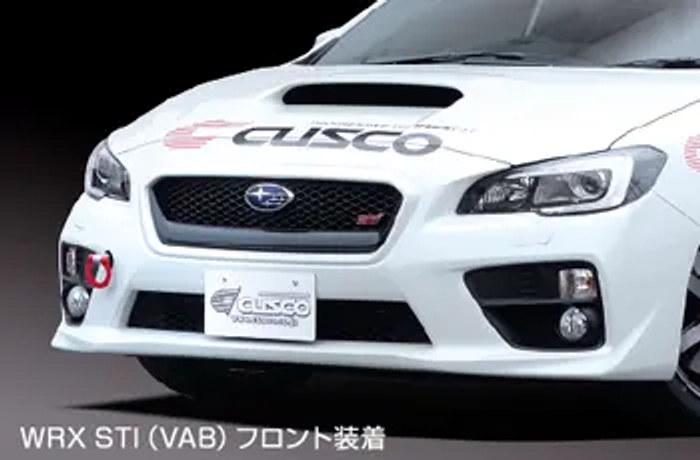

[Front & Rear Swivel Joint Tow Hook]

Add the Cusco Tow Hook to your vehicle that sees competition, track support will appreciate it, and so will your vehicle. Made from strong steel and designed to bolt-on. The swivel tow hook can be folded 90 degrees when not in use, which will minimizes its protrusion from the vehicle. JAF (Japanese Automobile Federation) compliant, meaning these have passed the strict national vehicle safety standards.

Use OE Towing Hook hole - Bolt-On
Hold 90 deg. or 0 deg.
Designed for Subaru models.
Material - Steel Head in Red and Steel Shaft.

Front & Rear for Crosstrek & Front for Impreza models
Product Number: 693 017 R
MSRP: $134.00
JAN Code: 4996338002723

[Rear Differential Support]

Cusco Differential Carrier utilizes a box type construction, hand-welded by craftsmen in Japan, and is designed to bridge the main carrier subframe. Not only does it improve driveline response and torque loss, the cross section provides further chassis rigidity, resulting in a more precise suspension pinning points under load, and resisting bowing of the unibody. This carrier has heavy-duty Cusco rubber bushings pre-installed for easy installation.

Direct OE Replacement type - Bolt-On
Designed for Subaru models
Material - Steel in Blue painted

Product Number: 6A1 489 A
MSRP: $174.00
JAN Code: 4996338048639

****Compatible Subaru Genuine Part Number: 41310AG023 (41310AG021; 41310AG022; 41310AG031), 41310FJ001 (41310FJ000), 41310AG040 (41310AG011)

[Rear Lateral Link / Control Arm - Rear Side]

CUSCO's pillow ball joint lateral links are designed to secure traction in race, rally, autocross, street and giving stability during acceleration under high speed cornering. Fully adjustable for camber, positive or negative.

Direct OE Replacement type - Bolt-On
Designed for Subaru models
Material - Steel in Blue painted with High End Pillowball Rod-End
Adjustable Range: -12mm/+12mm
For Camber Adjustment

Rear Lateral/Control Arm ***New item in 2024***
Product Number: 6A2 474 LN
MSRP: $600.00
JAN Code: 4996338024978

****Compatible Subaru Genuine Part Number: 20250FL040

[Rear Lateral Link - Front Side]

Direct OE Replacement type - Bolt-On
Designed for Subaru models
Material - Steel in Blue painted with High End Pillowball Rod-End
Adjustable Range: -12mm/+12mm
For Toe (In / Out) Adjustment

Rear Lateral Link (Front Side) ***New item in 2024***
Product Number: 6A2 474 LA
MSRP: $660.00
JAN Code: 4996338024985

****Compatible Subaru Genuine Part Number: 20250FL020

[Rear Trailing Rod]

Direct OE Replacement type - Bolt-On
Designed for Subaru models
Material - Steel in Blue painted with High End Pillowball Rod-End
Adjustable Range: -12mm/+12mm
For Caster Adjustment

Rear Trailing Rod ***New item in 2024***
Product Number: 6A2 474 T
MSRP: $480.00
JAN Code: 4996338024992

****Compatible Subaru Genuine Part Number: 20250FL001
